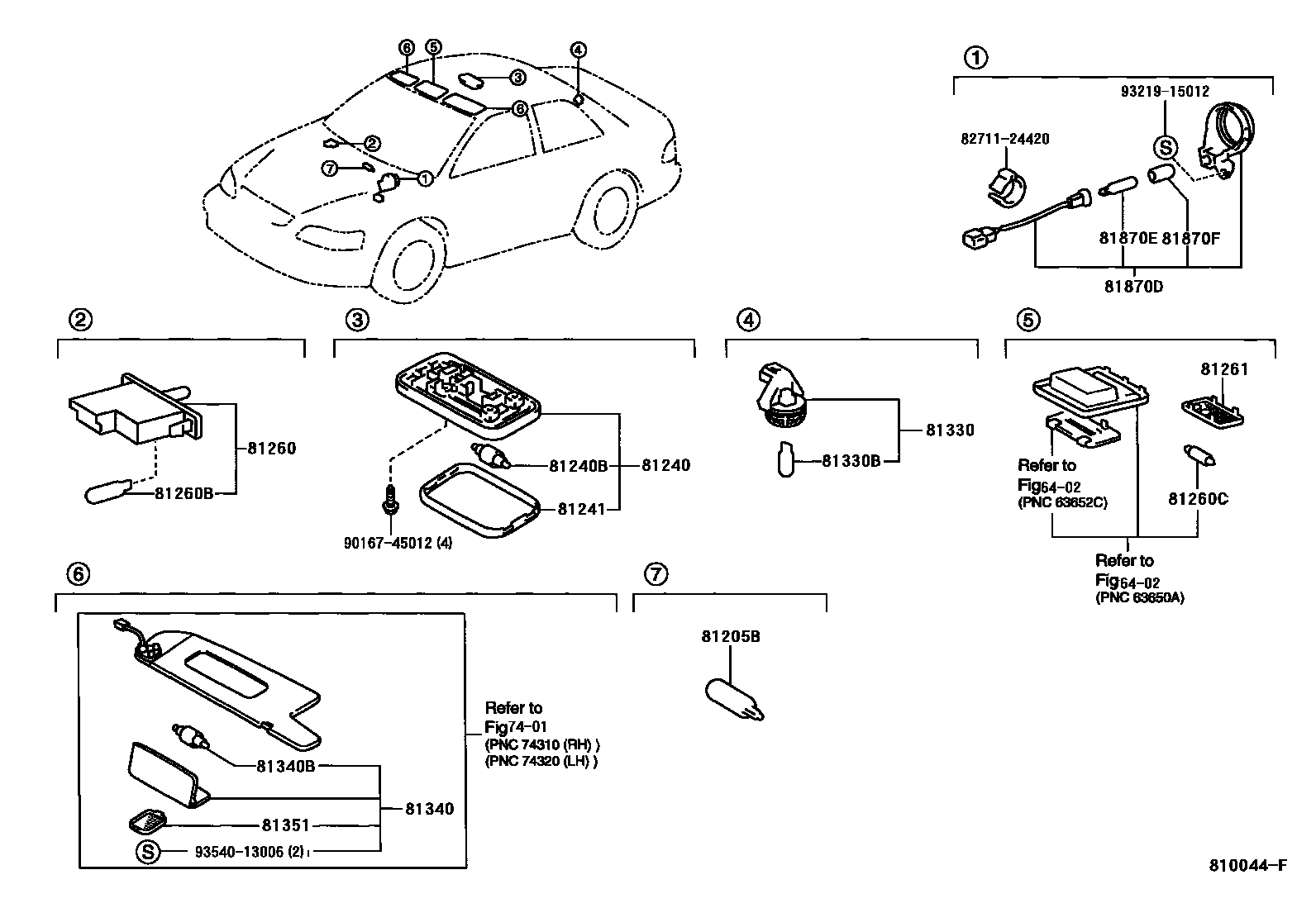

INTERIOR LAMP

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

7401ARMREST & VISOR

→ Go to FIG 74-01

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014iMCV20,SXV20..NAP199607

14V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81240-06010-A0iMCV20,SXV20..NAP199607-199908

IVORY,TRIM4#,II STANLEY

main81240-06010-B2iMCV20,SXV20..NAP199607-199908

LT.GRAY,TRIM1#,II STANLEY

main81240-06010-G0iMCV20,SXV20..NAP199607-199908

SAGE,TRIM6#,II STANLEY

main81240-AA010-A0iMCV20..NAP..CE..USA;MCV20,SXV20..NAP..CND199607-199808

IVORY,TRIM4#

main81240-AA010-B0iMCV20,SXV20..NAP199901

LT.GRAY,TRIM1#

main81240-AA010-G0iMCV20..NAP..CE..USA;MCV20,SXV20..NAP..CND199711-199808

SAGE,TRIM6#,DONNELLY

81240BBULB, ROOM LAMP, NO.1

main90080-81029iMCV20,SXV20..NAP199607-199908

12V 8W,II STANLEY

main90084-98054iMCV20,SXV20..NAP199711-199908

12V 8W,DONNELLY

81241LENS, ROOM LAMP, NO.1

main81241-06020iMCV20,SXV20..NAP199607-199908

II STANLEY

main81241-AA010iMCV20,SXV20..NAP199711-199908

DONNELLY

81260LAMP ASSY, GLOVE BOX

main81260-33030iMCV20,SXV20..NAP199607

81260BBULB(FOR GLOVE BOX)

main90981-11018iMCV20,SXV20..NAP199607

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90084-98049iMCV20,SXV20..NAP..(LE,XLE)199607

12V 8W

81261LENS AND COVER, MAP LAMP

main81231-AA010iMCV20,SXV20..NAP..(LE,XLE)199607

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-02010iMCV20,SXV20..NAP199607

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iMCV20,SXV20..NAP199607

12V 3.8W

81340LAMP ASSY, VANITY

main81350-AC030-A0×2iMCV20,SXV20..NAP..XLE199607-200102

IVORY,TRIM4#

main81350-AC030-B2×2iMCV20,SXV20..NAP..XLE199607-199908

LIGHT GRAY,TRIM1#

main81350-AC030-B4×2iMCV20,SXV20..NAP..XLE199908-200102

LT.GRAY,TRIM1#

main81350-AC030-G0×2iMCV20,SXV20..NAP..XLE199708-199908

SAGE,TRIM6#

main81350-AC030-G1×2iMCV20,SXV20..NAP..XLE199908-200102

SAGE,TRIM6#

main81350-AC031-A0×2iMCV20,SXV20..NAP..XLE200102

IVORY,TRIM4#

main81350-AC031-B4×2iMCV20,SXV20..NAP..XLE200102

LT.GRAY,TRIM1#

main81350-AC031-G1×2iMCV20,SXV20..NAP..XLE200102

SAGE,TRIM6#

81340BBULB (FOR VANITY LAMP)

main90084-98013×2iMCV20,SXV20..NAP..XLE199607

81351LENS, SURGICAL LAMP

main81351-AC010×2iMCV20,SXV20..NAP..XLE199607

81870DLAMP ASSY, KEY CYLINDER

main81870-33030iMCV20,SXV20..NAP..(CE,LE)199908

main81870-33050iMCV20,SXV20..NAP..(LE,XLE)199708-199908

W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))

main81870-41020iMCV20..NAP;SXV20..NAP..ATM199908

W(IMMOBILIZER)

81870EBULB, KEY CYLINDER LAMP

main90981-11014iMCV20,SXV20..NAP199607

14V 1.4W

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070iMCV20,SXV20..NAP199607

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

9016745012

main90167-45012

9321915012

main93219-15012

9354013006

main93540-13006

22 parts on this diagram · 1 diagram in section
