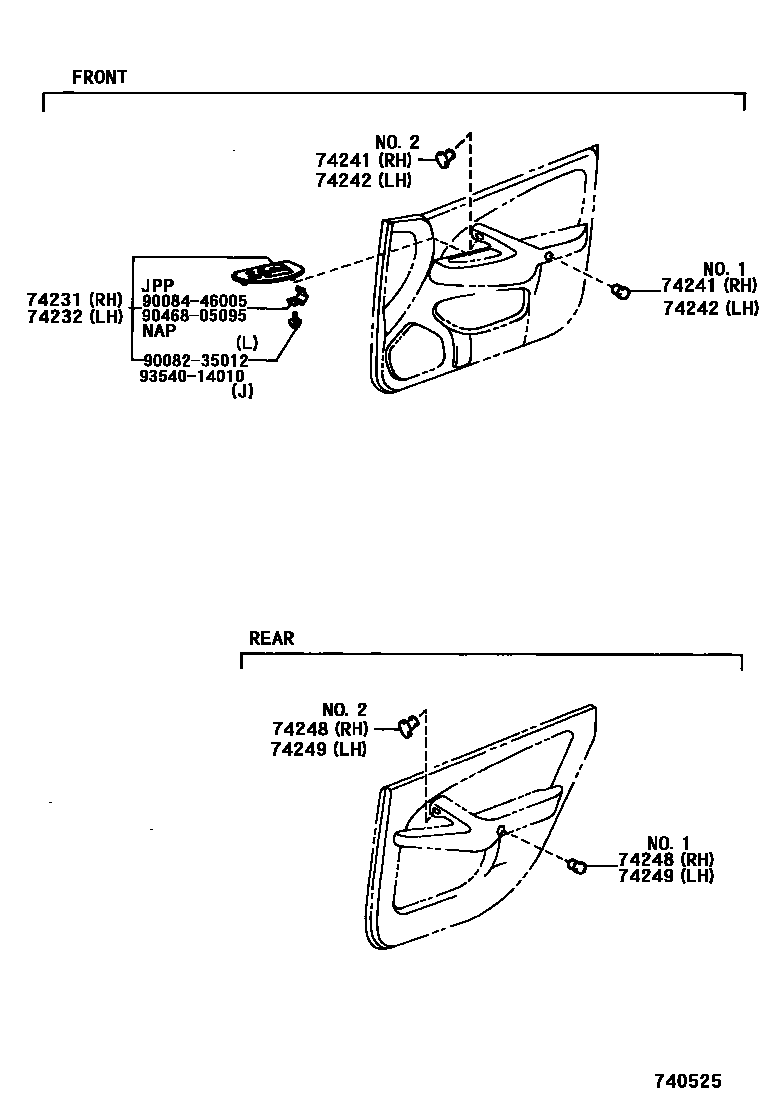

ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
WOOD GRAIN,BLUE GRAY,TRIM1#
WOOD GRAIN,MD.OAK,TRIM4#
WOOD GRAIN,SAGE,TRIM6#
BLUE GRAY,TRIM1#
MD.OAK,TRIM4#
SAGE,TRIM6#
BLUE GRAY,TRIM1#
MD.OAK,TRIM4#
SAGE,TRIM6#
74232PANEL, FRONT ARMREST BASE, UPPER LH
WOOD GRAIN
BLUE GRAY,TRIM1#
MD.OAK,TRIM4#
SAGE,TRIM6#
74241PLUG, FRONT DOOR ARMREST, RH
BLUE GRAY,TRIM1#,NO.1
MD.OAK,TRIM4#,NO.1
SAGE,TRIM6#,NO.1
W(POWER WINDOW),BLUE GRAY,TRIM1#,NO.2
W(POWER WINDOW),MD.OAK,TRIM4#,NO.2
W(POWER WINDOW),SAGE,TRIM6#,NO.2
BLUE GRAY,TRIM1#,NO.2
MD.OAK,TRIM4#,NO.2
SAGE,TRIM6#,NO.2
74242PLUG, FRONT DOOR ARMREST, LH
BLUE GRAY,TRIM1#,NO.1
MD.OAK,TRIM4#,NO.1
SAGE,TRIM6#,NO.1
W(POWER WINDOW),BLUE GRAY,TRIM1#,NO.2
W(POWER WINDOW),MD.OAK,TRIM4#,NO.2
W(POWER WINDOW),SAGE,TRIM6#,NO.2
BLUE GRAY,TRIM1#,NO.2
MD.OAK,TRIM4#,NO.2
SAGE,TRIM6#,NO.2
74248PLUG, REAR DOOR ARMREST, RH
BLUE GRAY,TRIM1#; BLUE GRAY,TRIM1#,NO.1
MD.OAK,TRIM4#; MD.OAK,TRIM4#,NO.1
SAGE,TRIM6#; SAGE,TRIM6#,NO.1
W(POWER WINDOW),BLUE GRAY,TRIM1#,NO.2
W(POWER WINDOW),MD.OAK,TRIM4#,NO.2
W(POWER WINDOW),SAGE,TRIM6#,NO.2
BLUE GRAY,TRIM1#,NO.2
MD.OAK,TRIM4#,NO.2
SAGE,TRIM6#,NO.2
74249PLUG, REAR DOOR ARMREST, LH
BLUE GRAY,TRIM1#; BLUE GRAY,TRIM1#,NO.1
MD.OAK,TRIM4#; MD.OAK,TRIM4#,NO.1
SAGE,TRIM6#; SAGE,TRIM6#,NO.1
BLUE GRAY,TRIM1#,NO.2
MD.OAK,TRIM4#,NO.2
SAGE,TRIM6#,NO.2
9008235012
main90082-35012
9008446005
main90084-46005
9046805095
main90468-05095
9354014010
main93540-14010
10 parts on this diagram · 2 diagrams in section
