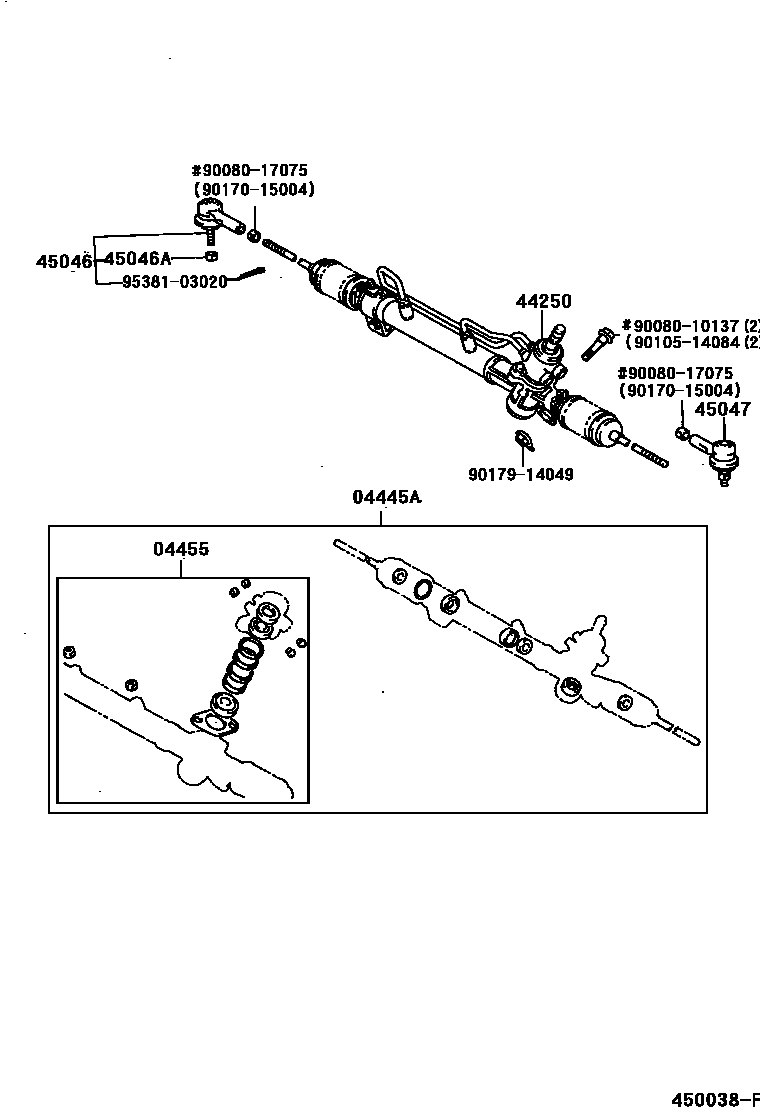

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-06030iMCV20,SXV20..NAP199607-199908

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-06020iMCV20,SXV20..NAP199607-199908

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-06090iSXV20..NAP199908

main44250-06110iSXV20..NAP199607-199908

main44250-06120iMCV20..NAP199607-199908

main44250-07061iMCV20..NAP199908

45046END SUB-ASSY, TIE ROD, RH

main45046-09020iMCV20,SXV20..NAP199607

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iMCV20,SXV20..NAP199607

45047END SUB-ASSY, TIE ROD, LH

main45046-09020iMCV20,SXV20..NAP199607

9008010137

main90080-10137

9008017075

main90080-17075

9010514084

main90105-14084

9017015004

main90170-15004

9017914049

main90179-14049

9538103020

main95381-03020

12 parts on this diagram · 2 diagrams in section
