METER

0001 1 0002 1

8302INDICATOR

→ Go to FIG 83-02

83100BBULB, COMBINATION METER, NO.1

main83101-20080iSXV10,VCV10..NAP199109-199309

12V 1.4W,W(SOCKET)

main83109-30070iMCV10,SXV10..NAP;VCV10..NAP..ATM..(LE,SE,XLE)199109-199408

14V 2.0W,W/O SOCKET

main83109-33070iVCV10..NAP..DX;VCV10..NAP..MTM199109-199309

14V 2.0W,LONG LIFE

main83119-24290×4iMCV10,SXV10,VCV10..NAP199109-199408

14V 3.78W

main83119-24310iMCV10,SXV10,VCV10..NAP199109-199408

14V 2.0W,C TYPE

main83119-24330iMCV10,SXV10..NAP199309-199408

14V 2.0W,B TYPE

main83119-32010iMCV10,SXV10..NAP199408-199607

14V 3.0W

main90981-11018iMCV10,SXV10,VCV10..NAP199109-199607

12V 1.2W W/O SOCKET

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iMCV10,SXV10,VCV10..NAP199109-199408

14V 3.78W

main83101-14040×14iSXV10..NAP..(CP,SED)..ATM..DX..USA; SXV10..NAP..WG..DX..USA199309-199311

OD=11.3 BALCK

main83101-32020iMCV10,SXV10,VCV10..NAP199109-199408

OD=12.2 BLUE

83110SPEEDOMETER ASSY

main83110-06010iMCV10,SXV10,VCV10..NAP..USA199109-199607

main83110-06020iMCV10,SXV10,VCV10..NAP..CND199203-199607

83132CASE, COMBINATION METER

main83132-06010iMCV10,SXV10..NAP199408-199607

main83132-33070iMCV10..NAP; SXV10,VCV10..NAP..ATM; SXV10,VCV10..NAP..MTM199109-199408

83133PLATE, COMBINATION METER, NO.1

main83133-06010iMCV10..NAP;SXV10..NAP..ATM..(LE,XLE); SXV10..NAP..ATM..DX..CND199408-199607

W(*PW)

main83133-06020iSXV10..NAP..DX;SXV10..NAP..MTM..LE199408-199607

main83133-33030iMCV10..NAP; SXV10..NAP..ATM..DX..CND; SXV10..NAP..LE..CND199309-199408

W(*PW)

main83133-33050iSXV10..NAP..DX; SXV10..NAP..LE..USA; SXV10..NAP..XLE199309-199408

83138GLASS, SPEEDOMETER

main83138-06010iMCV10,SXV10..NAP199408-199607

main83138-33030iMCV10..NAP; SXV10,VCV10..NAP..ATM; SXV10,VCV10..NAP..MTM199109-199408

83159BRELAY ASSY, METER

main83159-22170iMCV10,SXV10,VCV10..NAP199109-199408

83181ASENSOR, SPEEDOMETER

main83181-12020iVCV10..NAP..ATM199109-199309

main83181-12030iSXV10..NAP..MTM199109-199408

main83181-12040iMCV10,SXV10..NAP..ATM199109-199607

main83181-12050iVCV10..NAP..MTM199209-199309

main83181-32030iSXV10..NAP..MTM199408-199506

83181BRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iMCV10,SXV10..NAP199109-199607

main96711-24030iVCV10..NAP199109-199309

83242TACHOMETER ASSY, ENGINE

main83242-06010iSXV10..NAP..USA199408-199607

main83242-06020iMCV10..NAP..USA199408-199607

main83242-06030iSXV10..NAP..CND199408-199607

main83242-06040iMCV10..NAP..CND199408-199607

main83242-33010iVCV10..NAP..USA199109-199309

main83242-33030iSXV10..NAP..USA199109-199408

main83242-33050iVCV10..NAP..CND199203-199309

main83242-33070iSXV10..NAP..CND199203-199408

main83242-33330iMCV10..NAP..USA199309-199408

main83242-33350iMCV10..NAP..CND199309-199408

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-06010iMCV10,SXV10..NAP199408-199607

main83243-33030iMCV10..NAP; SXV10,VCV10..NAP..ATM; SXV10,VCV10..NAP..MTM199109-199408

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-06010iMCV10,SXV10..NAP..USA199408-199607

main83244-06020iMCV10,SXV10..NAP..CND199408-199607

main83244-33030iSXV10,VCV10..NAP199109-199309

main83244-33190iMCV10..NAP; SXV10..NAP..ATM; SXV10..NAP..MTM199309-199408

83247PLATE, METER CIRCUIT

main83247-06010iMCV10..NAP;SXV10..NAP..ATM..(LE,XLE); SXV10..NAP..ATM..DX..CND199408-199607

W(*PW)

main83247-06020iSXV10..NAP..DX..CND;SXV10..NAP..MTM..LE; SXV10..NAP..DX..USA199408-199607

W(*66) OR W(*CRC)

main83247-06050iSXV10..NAP..DX..USA199408-199607

main83247-33110iSXV10..NAP..ATM..DX..CND199203-199309

W(*PW)

main83247-33130iSXV10..NAP..ATM..DX..USA199109-199408

main83247-33150iSXV10..NAP..(CP,SED)..ATM..DX..CND; SXV10..NAP..(CP,SED)..MTM; SXV10..NAP..WG..DX..CND; VCV10..NAP..DX; VCV10..NAP..MTM199109-199408

83910CLOCK ASSY

main83910-06010iMCV10,SXV10,VCV10..NAP199109-199408

main83910-06011iMCV10,SXV10..NAP199408-199607

9009900211

main90099-00211

9009900225

main90099-00225

9009900944

main90099-00944

9354014020

main93540-14020

9356755016

main93567-55016

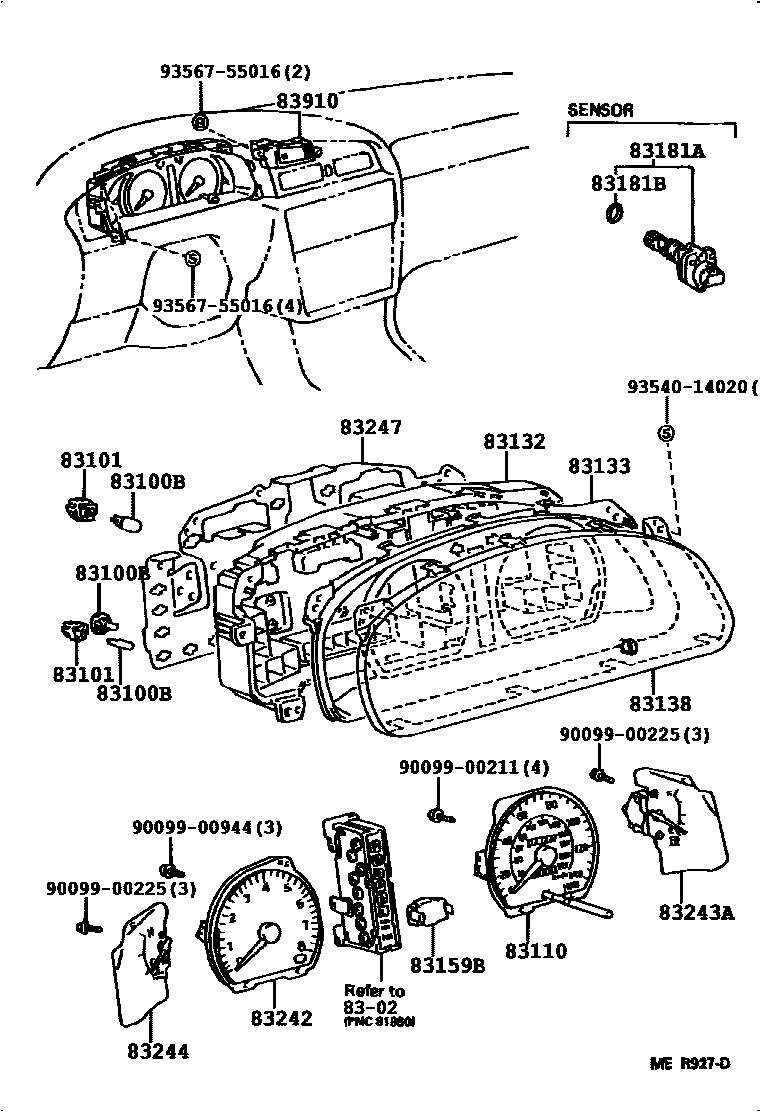

20 parts on this diagram · 2 diagrams in section
