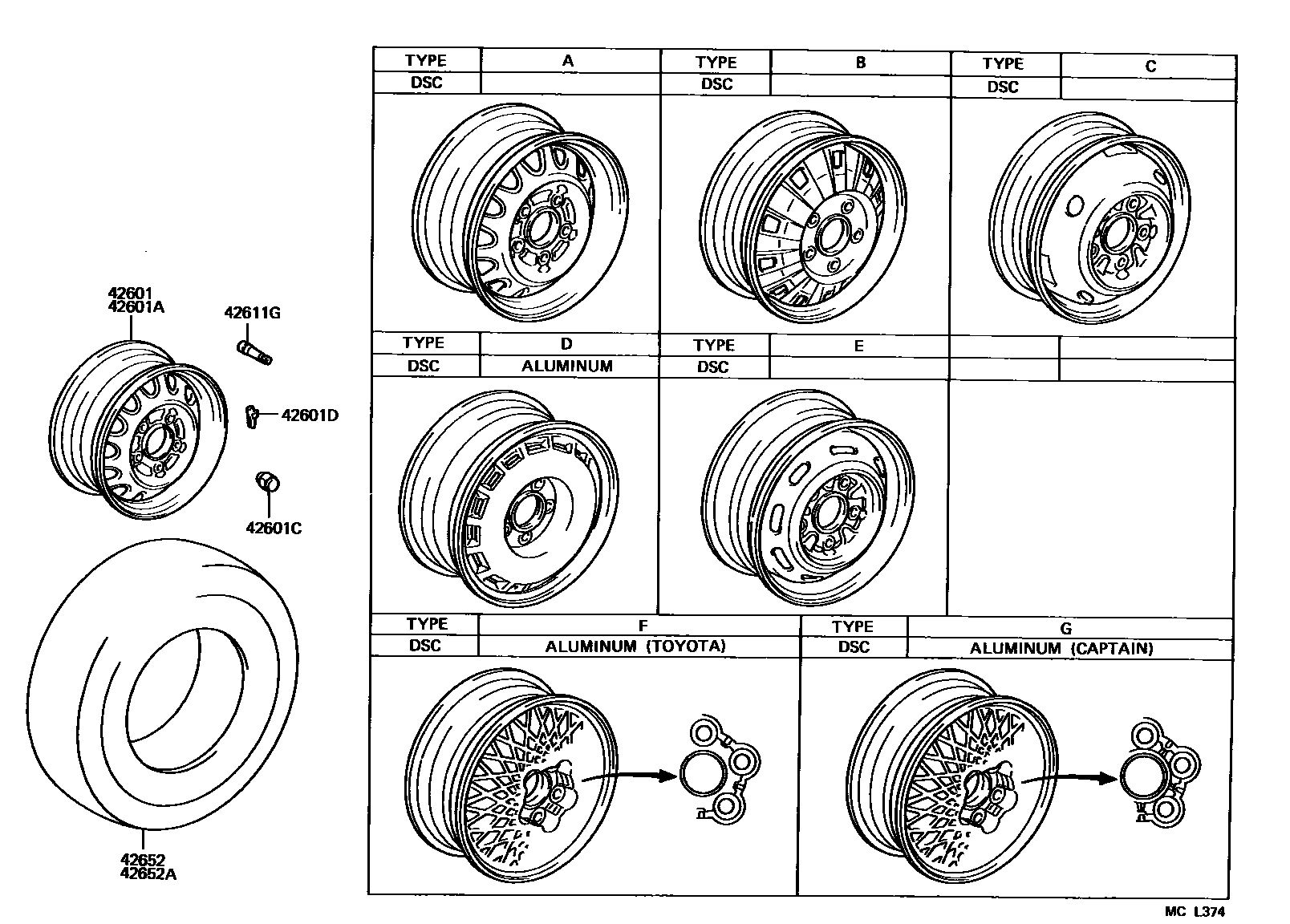

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-03010×4iSV21..DX,STD198807-198909

14X5.5J,TYPE B

main42611-03020×4iSV21..DX; SV21..LE198807-198909

14X5.5J,TYPE E

main42611-03030×4iSV21..LE198908-199109

14X5.5JJ,ALUMINUM,TYPE G

main42611-03050×4iVZV21198909-199109

15X5.5JJ,TYPE A

main42611-03060×4iVZV21..LE199009-199109

5.5-JJX15

main42611-32130×4iVZV21..LE199009-199109

15X5.5JJ,TYPE D

42601AWHEEL, DISC (FOR SPARE)

main42611-03010iSV21..DX,STD198807-198909

14X5.5J,TYPE B

main42611-03020iSV21..DX; SV21..LE198807-198909

14X5.5J,TYPE E

main42611-03040iSV21..STD198807-199109

4TX15,TYPE C

main42611-03050iVZV21198909-199109

15X5.5JJ,TYPE A

42601CNUT, HUB (FOR AXLE)

main90080-17035×20iVZV21199001-199003

main90080-17036×20iSV21..LE199002-199109

W(14INCHES ALUMINUM WHEEL)

main90080-17038×20iSV21..STD199009-199109

main90080-17039×20iVZV21..LE199002-199009

W(15INCHES ALUMINUM WHEEL)

main90942-01007×20iSV21..DX198807-198909

HALF CAP

main90942-01021×20iSV21..DX; SV21..LE,STD198807-198909

FULL CAP

main90942-01033×20iVZV21..LE199009-199109

W(15INCHES ALUMINUM WHEEL)

main90942-01058×20iSV21..LE198807-199002

W(14INCHES ALUMINUM WHEEL)

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90080-42019iSV21,VZV21198807-199109

10G

main90080-42020iSV21,VZV21198807-199109

15G

main90080-42021iSV21,VZV21198807-199109

20G

main90080-42022iVZV21..LE198909-199109

25G,W(ALUMINUM WHEEL)

main90080-42023iSV21,VZV21198807-199109

30G

main90080-42024iSV21,VZV21198807-199109

35G

main90080-42025iSV21,VZV21198807-199109

40G

main90080-42026iSV21,VZV21198807-199109

45G

main90080-42027iSV21,VZV21198807-199109

50G

main90080-42028iVZV21..LE198909-199109

55G,W(ALUMINUM WHEEL)

main90080-42029iSV21,VZV21198807-199109

60G

main90080-42030iSV21,VZV21198807-199109

65G

main90080-42031iSV21,VZV21198807-199109

70G

main90080-42032iSV21,VZV21198807-199109

75G

main90080-42033iVZV21..LE198909-199109

80G,W(ALUMINUM WHEEL)

main90080-42034iVZV21..LE198909-199109

5G,W(ALUMINUM WHEEL)

main90080-42035iSV21..LE; VZV21..LE198909-199002

7.5G,W(ALUMINUM WHEEL)

main90080-42036iSV21..LE; VZV21..LE198909-199002

12.5G,W(ALUMINUM WHEEL)

main90080-42037iSV21..LE; VZV21..LE198909-199002

17.5G,W(ALUMINUM WHEEL)

main90080-42038iSV21..LE198904-198909

22.5G

main90080-42039iSV21..LE; VZV21..LE198909-199002

27.5G,W(ALUMINUM WHEEL)

main90080-42040iSV21..LE; VZV21..LE198909-199002

32.5G,W(ALUMINUM WHEEL)

main90080-42041iSV21..LE; VZV21..LE198909-199002

37.5G,W(ALUMINUM WHEEL)

main90080-42042iSV21,VZV21198909-199002

7.5G

main90080-42043iSV21,VZV21198909-199002

12.5G

main90080-42044iSV21,VZV21198909-199002

17.5G

main90080-42045iSV21,VZV21198909-199002

22.5G

main90080-42046iSV21,VZV21198909-199002

27.5G

main90080-42047iSV21,VZV21198909-199002

32.5G

main90080-42048iSV21,VZV21198909-199002

37.5G

main90081-42001iSV21..LE198807-199109

30G,T=8.0,W(ALUMINUM WHEEL)

main90081-42002iVZV21..LE198909-199109

35G,T=8.0,W(ALUMINUM WHEEL)

main90081-42003iSV21..LE198807-199109

40G,T=8.0,W(ALUMINUM WHEEL)

main90081-42004iSV21..LE198807-199109

45G,T=8.0,W(ALUMINUM WHEEL)

main90081-42005iVZV21..LE198909-199109

50G,T=8.0,W(ALUMINUM WHEEL)

main90081-42006iSV21..LE198807-199109

55G,T=8.0,W(ALUMINUM WHEEL)

main90081-42007iSV21..LE198807-199109

60G,T=8.0,W(ALUMINUM WHEEL)

main90081-42008iSV21..LE198807-199109

65G,T=8.0,W(ALUMINUM WHEEL)

main90081-42009iVZV21..LE198909-199109

70G,T=8.0,W(ALUMINUM WHEEL)

main90081-42010iVZV21..LE198909-199109

75G,T=8.0,W(ALUMINUM WHEEL)

main90081-42011iSV21..LE198807-199109

80G,T=8.0,W(ALUMINUM WHEEL)

main90081-42012iSV21..LE198807-199109

10G,T=8.0,W(ALUMINUM WHEEL)

main90081-42013iSV21..LE198807-199109

15G,T=8.0,W(ALUMINUM WHEEL)

main90081-42014iVZV21..LE198909-199109

20G,T=8.0,W(ALUMINUM WHEEL)

main90081-42015iVZV21..LE198909-199109

25G,T=8.0,W(ALUMINUM WHEEL)

main90081-42016iVZV21..LE198909-199109

5G,T=6.1,W(ALUMINUM WHEEL)

main90942-03194iSV21,VZV21; VZV21..LE199002-199109

7.5G,T=7.5; 7.5G,T=7.5,W(ALUMINUM WHEEL)

main90942-03195iSV21,VZV21; VZV21..LE199002-199109

12.5G,T=7.5; 12.5G,T=7.5,W(ALUMINUM WHEEL)

main90942-03203iSV21,VZV21; VZV21..LE199002-199109

17.5G,T=9.5; 17.5G,T=9.5,W(ALUMINUM WHEEL)

main90942-03204iSV21,VZV21; VZV21..LE199002-199109

22.5G,T=9.5; 22.5G,T=9.5,W(ALUMINUM WHEEL)

main90942-03205iSV21,VZV21; VZV21..LE199002-199109

27.5G,T=9.5; 27.5G,T=9.5,W(ALUMINUM WHEEL)

main90942-03206iSV21,VZV21; VZV21..LE199002-199109

32.5G,T=9.5; 32.5G,T=9.5,W(ALUMINUM WHEEL)

main90942-03207iSV21,VZV21; VZV21..LE199002-199109

37.5G,T=9.5; 37.5G,T=9.5,W(ALUMINUM WHEEL)

main90942-03208iSV21..LE; VZV21..LE199002-199109

7.5G,T=6.1,W(ALUMINUM WHEEL)

main90942-03209iSV21..LE; VZV21..LE199002-199109

12.5G,T=7.0,W(ALUMINUM WHEEL)

main90942-03210iSV21..LE; VZV21..LE199002-199109

17.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03211iSV21..LE; VZV21..LE199002-199109

22.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03212iSV21..LE; VZV21..LE199002-199109

27.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03213iSV21..LE; VZV21..LE199002-199109

32.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03214iSV21..LE; VZV21..LE199002-199109

37.5G,T=8.0,W(ALUMINUM WHEEL)

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001×5iVZV21198909-199109

main90080-45004×4iSV21..LE199001-199109

main90942-05004×4iSV21..LE198911-199001

42652TIRE

main42652-03010×4iSV21198807-199109

P185/70R14 SP32J

main42652-03020×4iSV21198807-199109

P185/70R14 FR480

42652ATIRE (FOR SPARE)

main42652-03010iSV21198807-199109

P185/70R14 SP32J

main42652-03020iSV21198807-199109

P185/70R14 FR480

main42652-03030iSV21..STD198807-199109

T135/70D15

7 parts on this diagram · 2 diagrams in section
