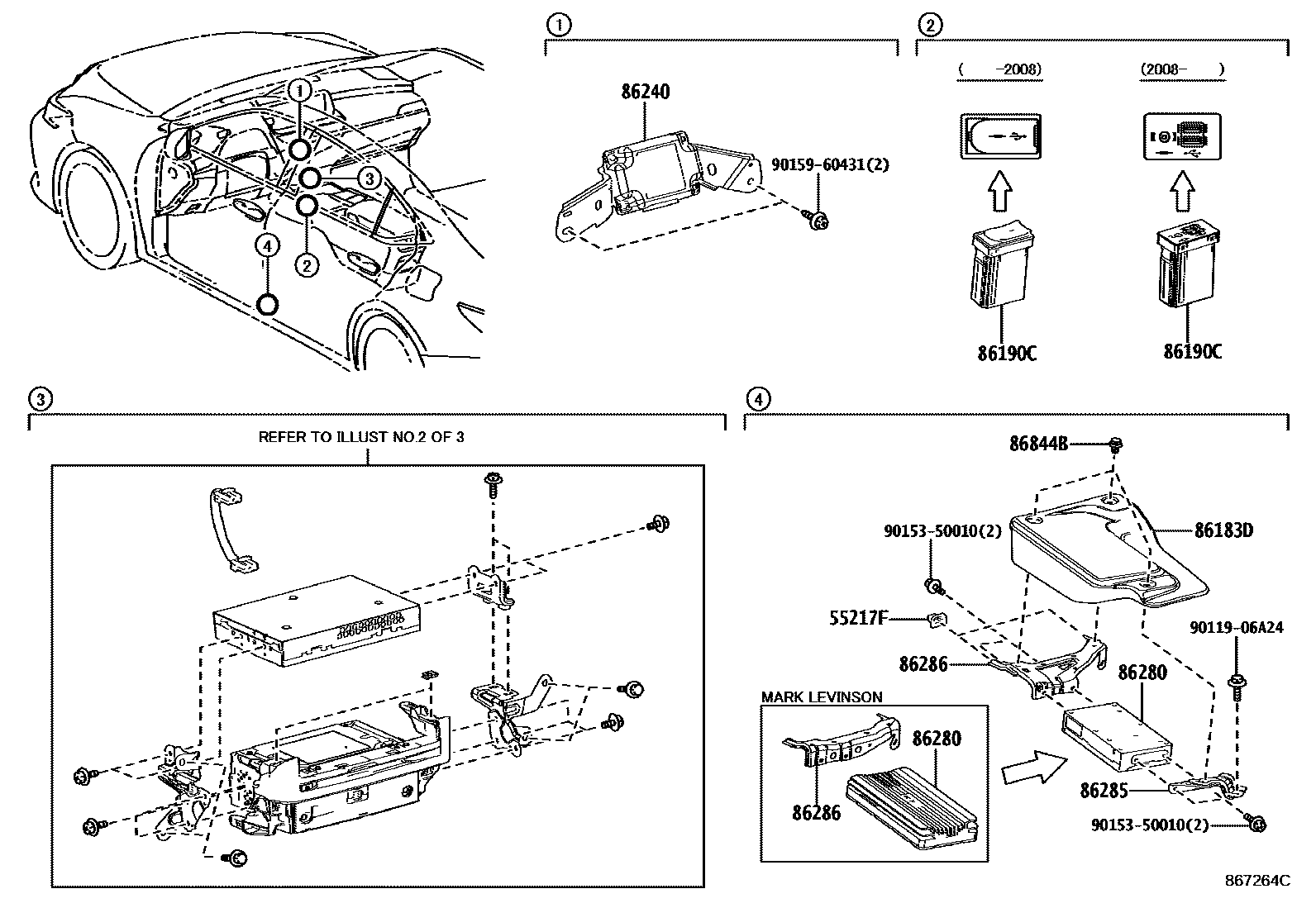

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER & AMPLIFIER 0002 1RECEIVER & AMPLIFIER 0003 1CONDENSER

55217FRETAINER, AUDIO AMPLIFIER

main55217-32010×2iAXZH11202108

86183DCOVER, AUDIO AMPLIFIER

main86183-33120-C0iAXZH1#,GSZ10201806

BLACK,TRIM1#,2#

main86183-33120-E0iAXZH1#,GSZ10201806

NOBLE BROWN,TRIM5#,6#

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-11010iAXZH10,GSZ10201806-202008

main86190-24030iAXZH1#,GSZ10202008

main86190-48090iAXZH11202208

86240EQUALIZER ASSY,STEREO COMPONENT

main86240-33030iAXZH1#201807-202110

main86240-33040iAXZH11202208-202402

main86240-33100iAXZH11202402

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0WC10iAXZH10201807-202008

AUDIO-8INCH DISPLAY & *DA & DVD & *MAR

main86280-0WE70iAXZH10201807-202008

AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB

main86280-33310iAXZH10201807-201902

AUDIO-12.3INCH DISPLAY & DVD & DAB

main86280-33311supersedes 86280-33301iAXZH10; AXZH10,GSZ10201902-201905

AUDIO-12.3INCH DISPLAY & DVD; AUDIO-12.3INCH DISPLAY & DVD & DAB

main86280-33312iAXZH11201905-202108

AUDIO-12.3INCH DISPLAY & DVD & DAB

main86280-33440supersedes 86280-33420iAXZH11202208-202406

AUDIO-12.3INCH DISPLAY & DVD & *MAR

main86280-33441iAXZH11202407

AUDIO-12.3INCH DISPLAY & DVD & *MAR

86285BRACKET, AMPLIFIER, NO.1

main86285-33180iAXZH11202108

86286BRACKET, AMPLIFIER, NO.2

main86286-33170iAXZH11201807-202108

AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB; AUDIO-8INCH DISPLAY & *DA & DVD & *MAR

86844BRETAINER, AUDIO AMPLIFIER COVER

main86844-33010-C1×3iAXZH11202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main86844-33010-E2×3iAXZH1#,GSZ10201806

NOBLE BROWN,TRIM5#,6#

9011906A24

main90119-06A24

9015350010

main90153-50010

9015960431

main90159-60431

11 parts on this diagram · 3 diagrams in section
