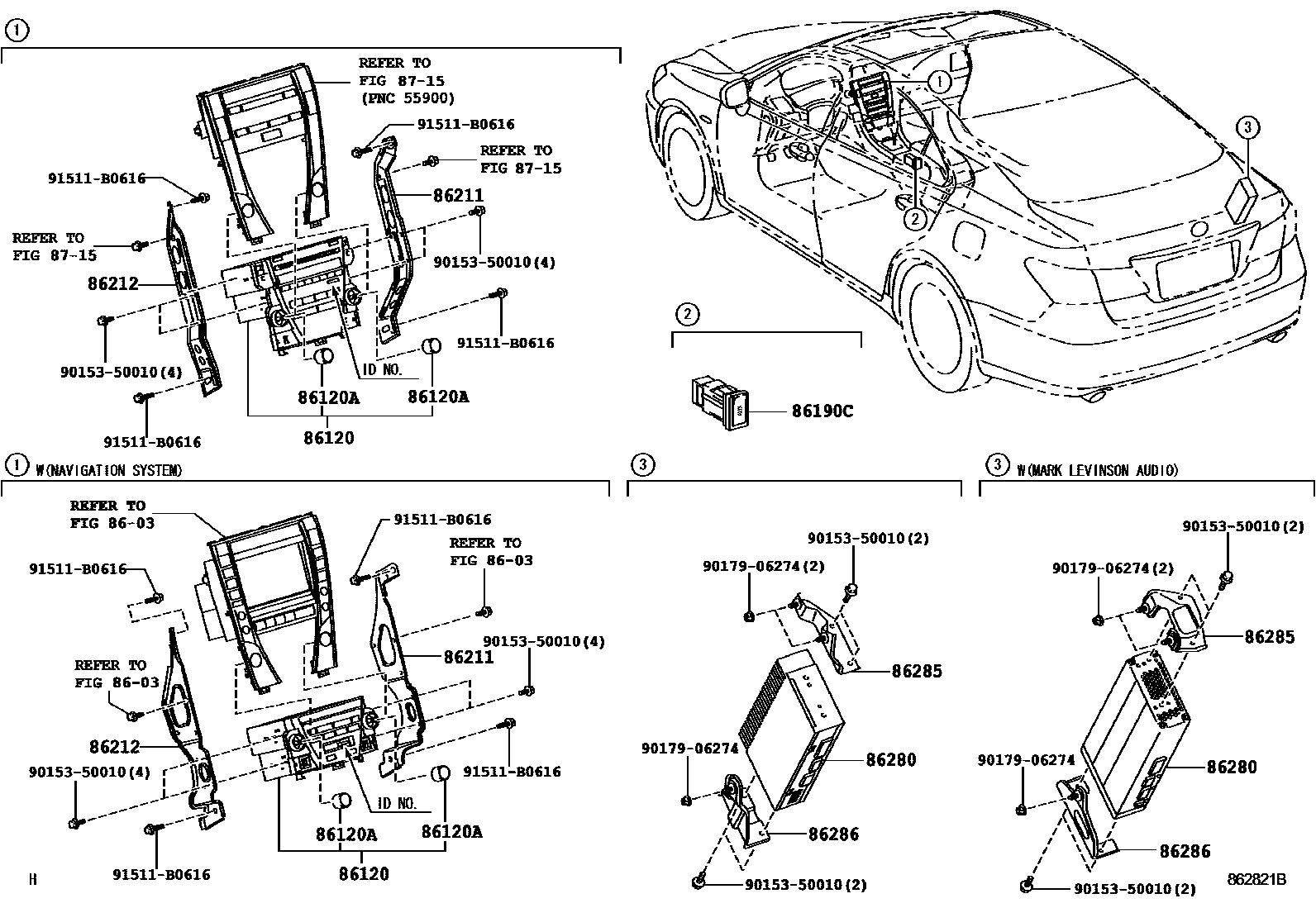

RADIO RECEIVER & AMPLIFIER & CONDENSER

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-33720supersedes 86120-33F00i200603-200908

PIONEER,ID=P1807,AUDIO-AM/FM,6CD CHANGER,BT,8SPEAKER

main86120-33730supersedes 86120-33F00i200603-200908

PIONEER,ID=P6866,AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER

main86120-33740supersedes 86120-33F00i200603-200908

PIONEER,ID=P1505,AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON

main86120-33750supersedes 86120-33F00i200603-200908

PIONEER,ID=P2815,KOREA SPEC

main86120-33760supersedes 86120-33F00i200603-200701

PIONEER,ID=P2814,KOREA SPEC&AUDIO-AM/FM,6CD CHANGER,MARK LEVINSON

main86120-33770supersedes 86120-33F00i200701-200908

PIONEER,ID=P7858,KOREA SPEC&AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER

main86120-33780supersedes 86120-33F00i200701-200908

PIONEER,ID=P2511,KOREA SPEC&AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON

main86120-33C70i200707-200908

PIONEER,ID=P1818,AUDIO-AM/FM,6CD CHANGER,MARK LEVINSON

main86120-33E40supersedes 86120-33F00i200908-201206

PIONEER,ID=P1869,AUDIO-6CD-CHANGER BLUETOOTH SDARS 8SP

main86120-33E50supersedes 86120-33F00i200908-201206

PIONEER,ID=P1867,AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP

main86120-33E60supersedes 86120-33F00i200908-201206

PIONEER,ID=P6527,AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP

main86120-33E70supersedes 86120-33F00i200908-201206

PIONEER,ID=P1870,CANADA SPEC&AUDIO-6CD-CHANGER BLUETOOTH SDARS 8SP

main86120-33E80supersedes 86120-33F00i200908-201206

PIONEER,ID=P1868,CANADA SPEC&AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP

main86120-33E90supersedes 86120-33F00i200908-201206

PIONEER,ID=P6528,CANADA SPEC&AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP

main86120-33F10i201008-201206

PIONEER,ID=P2892,KOREA SPEC&AUDIO-AM/FM 6CD-CHANGER 8SP

main86120-33F20supersedes 86120-33F00i200908-201103

PIONEER,ID=P2890,KOREA SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP

main86120-33F21supersedes 86120-33F00i201104-201110

PIONEER,ID=P2890,KOREA SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP

main86120-33F70supersedes 86120-33F00i200908-201103

PIONEER,ID=P7569,KOREA SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

main86120-33F71supersedes 86120-33F00i201104-201110

PIONEER,ID=P7569,KOREA SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

main86120-33F80supersedes 86120-33F00i200908-201206

PIONEER,ID=P6542,USA POSSESSIONS SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

main86120-33J30supersedes 86120-33F00i201110-201206

PIONEER,ID=P10320,KOREA SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP

main86120-33J40supersedes 86120-33F00i201110-201206

PIONEER,ID=P10319,KOREA SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22050×2i200603-200908

main90010-22070×2i200908-201206

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-53040supersedes 86190-53010i200908-201206

AUDIO JACK-MINI JACK & USB; AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&AUDIO JACK-MINI JACK & USB; AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&AUDIO JACK-MINI JACK & USB; KOREA SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP&AUDIO JACK-MINI JACK & USB; KOREA SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP&AUDIO JACK-MINI JACK & USB; USA POSSESSIONS SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP&AUDIO JACK-MINI JACK & USB

86211BRACKET, RADIO, NO.1

main86211-33220supersedes 86211-33191i200908-201206

AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP; AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP; KOREA SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; KOREA SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; USA POSSESSIONS SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

86212BRACKET, RADIO, NO.2

main86212-33220supersedes 86212-33191i200603-200908

AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W380supersedes 86280-33160i200603-200701

AUDIO-AM/FM,6CD CHANGER,MARK LEVINSON

main86280-0W730supersedes 86280-33160i200908

AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP; AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

main86280-33170supersedes 86280-33160i200908

AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP

86285BRACKET, AMPLIFIER, NO.1

main86285-33100supersedes 86285-33090i200603-200908

AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON

main86285-33120supersedes 86285-33090i200908

AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP; AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

86286BRACKET, AMPLIFIER, NO.2

main86286-33090supersedes 86286-33110i200603-200908

AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON

main86286-33120supersedes 86286-33110i200908

AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP; AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9015350010

main90153-50010

9017906274

main90179-06274

91511B0616

main91511-B0616

13 parts on this diagram · 3 diagrams in section
