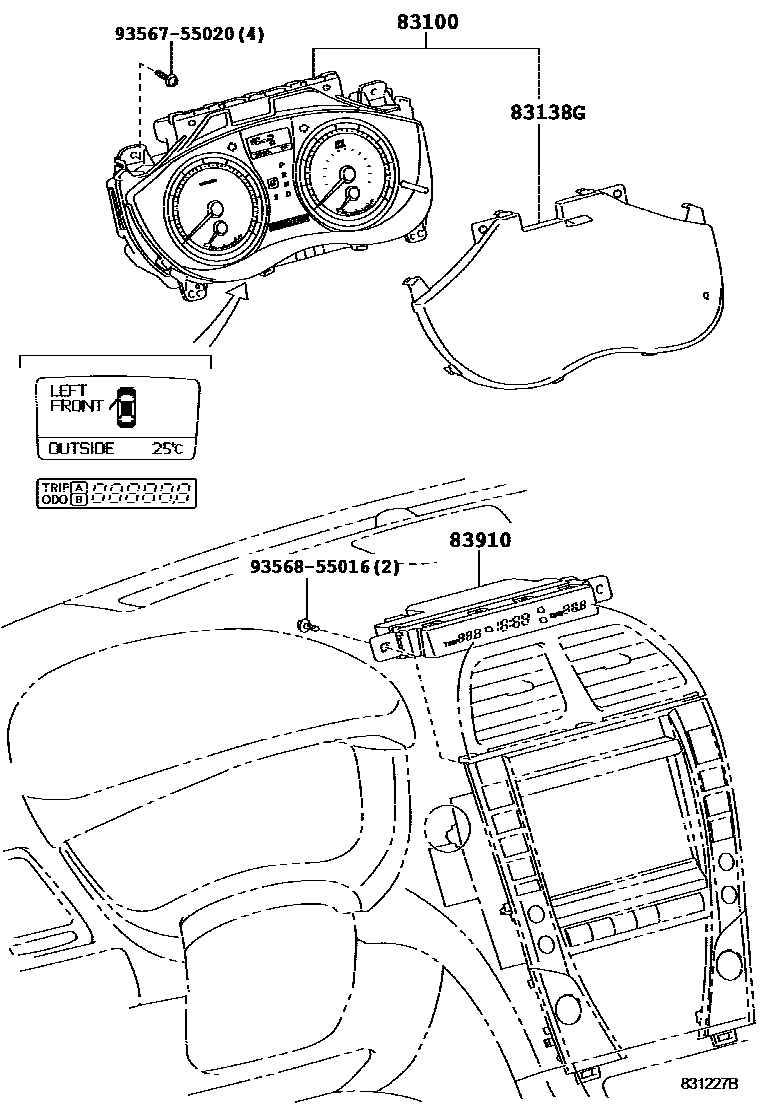

METER

83100METER ASSY, COMBINATION

main83800-33B72supersedes 83800-33J40i200902-200908

PRE-COLLISION SYSTEM-WITH

main83800-33B80supersedes 83800-33B70i200603-200707

CANADA SPEC

main83800-33B81supersedes 83800-33B71i200707-200808

CANADA SPEC

main83800-33B82supersedes 83800-33B72i200808-200908

CANADA SPEC

main83800-33B90supersedes 83800-33B70i200603-200707

BRAZIL SPEC; KOREA SPEC; TAIWAN SPEC

main83800-33B91supersedes 83800-33B71i200707-200808

BRAZIL SPEC; KOREA SPEC

main83800-33B92supersedes 83800-33B72i200808-200908

BRAZIL SPEC; KOREA SPEC

main83800-33G70supersedes 83800-33J40i200908-201007

PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)

main83800-33G71supersedes 83800-33J41i201008

PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)

main83800-33G80supersedes 83800-33J40i200908-201007

CANADA SPEC; CANADA SPEC&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)

main83800-33G81supersedes 83800-33J41i201008

CANADA SPEC; CANADA SPEC&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)

main83800-33G90supersedes 83800-33J40i200908

BRAZIL SPEC; KOREA SPEC

83138GGLASS, COMBINATION METER

main83852-33B70i200908

83910CLOCK ASSY

main83910-33200i200908-201206

AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP; AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP; KOREA SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; KOREA SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; USA POSSESSIONS SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

9356755020

main93567-55020

9356855016

main93568-55016

5 parts on this diagram · 1 diagram in section
