DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-17050iSV21..LE198608-198708

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-17060iSV21..LE198608-198708

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-32050iSV21..SED..LE; SV25..LE198710-198710

W(POWER WINDOW)

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-32060iSV21..LE198608-198708

85490SOLENOID ASSY, DOOR CONTROL BACK

main85450-32070iSV21..WG;VZV21..WG..USA198608-198808

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-32040iSV21..LE198608-198708

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-32050iSV21..LE198608-198708

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-32040iSV21..LE198608-198708

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-32050iSV21..LE198608-198708

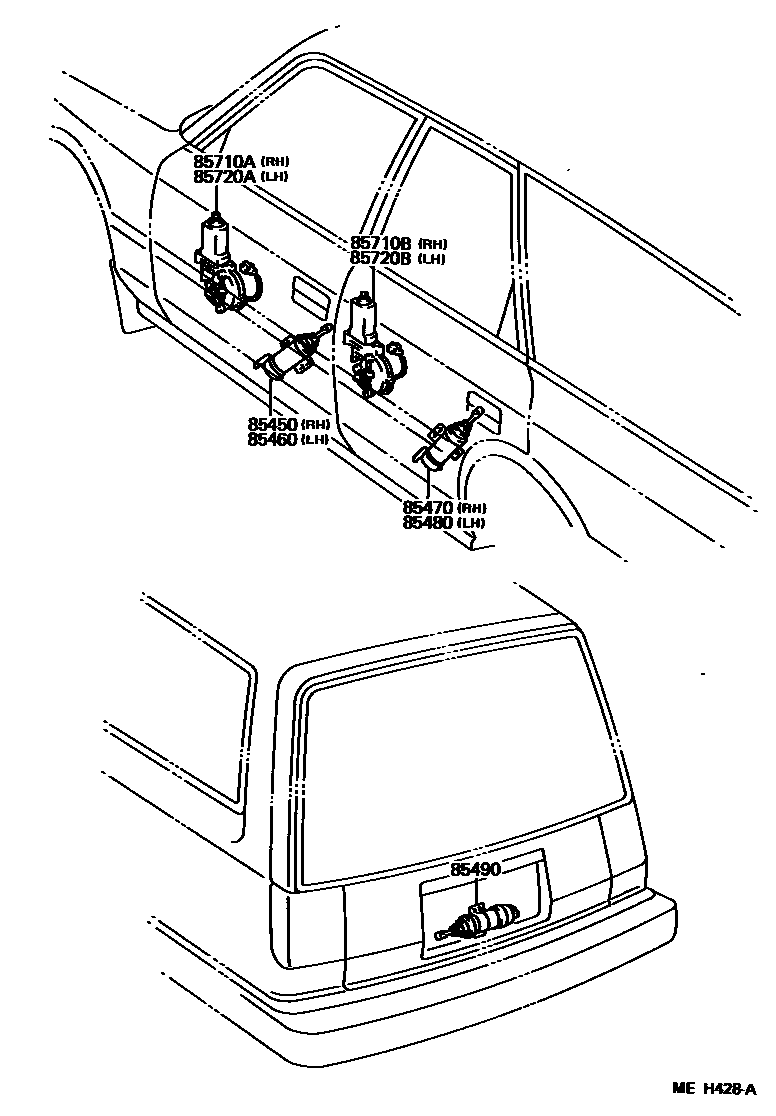

9 parts on this diagram · 1 diagram in section
