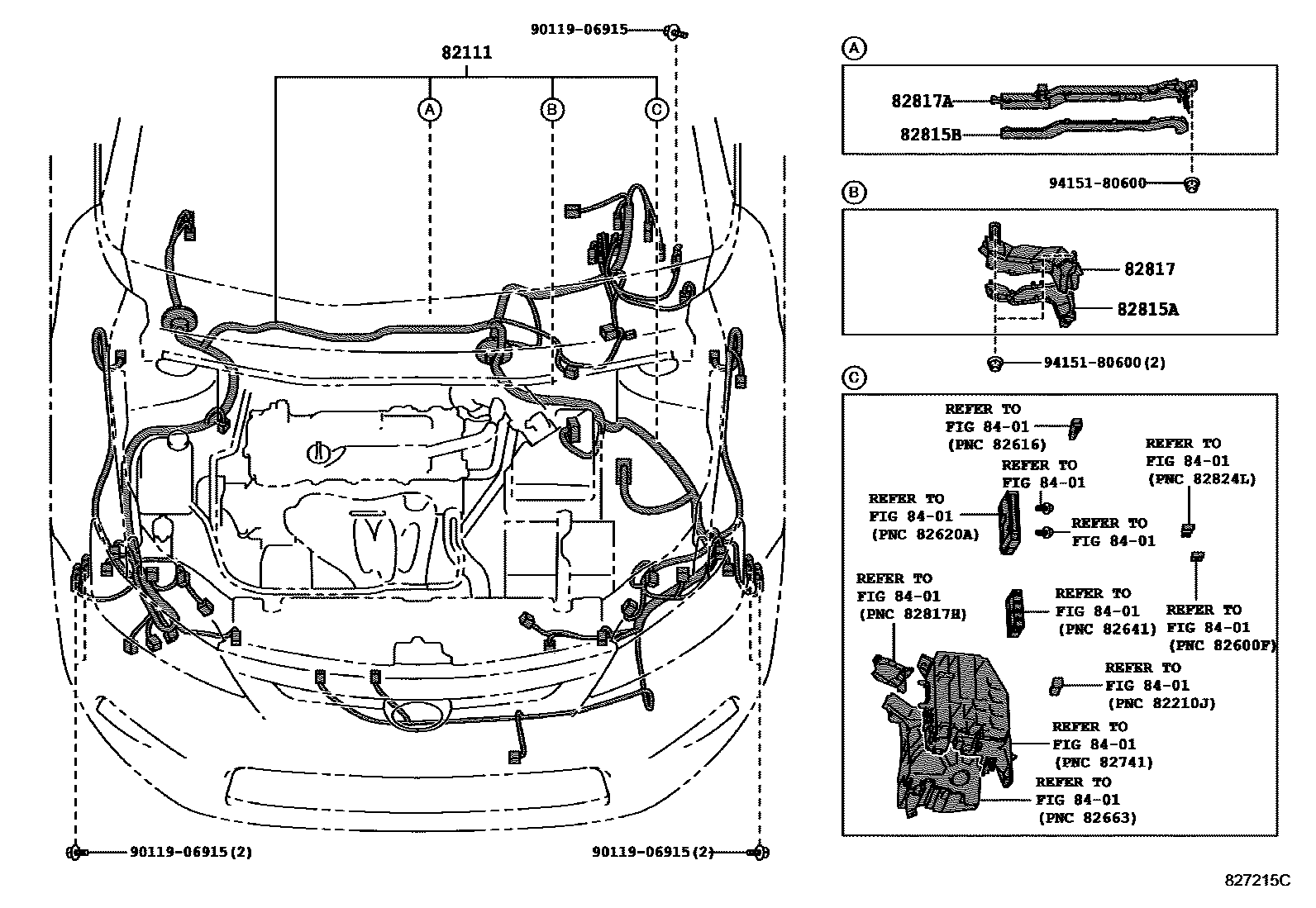

WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82111-21670supersedes 82111-21661i201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

main82111-21671supersedes 82111-21661i201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

main82111-21680supersedes 82111-21661i201008-201305

REAR WINDOW WIPER-WITH; WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&REAR WINDOW WIPER-WITH

main82111-21681supersedes 82111-21661i201305

REAR WINDOW WIPER-WITH(INTERMITTENT); WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&REAR WINDOW WIPER-WITH(INTERMITTENT)

main82111-21700supersedes 82111-21691i201008-201305

REAR WINDOW WIPER-WITH; WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&REAR WINDOW WIPER-WITH

main82111-21701supersedes 82111-21691i201305

REAR WINDOW WIPER-WITH(INTERMITTENT); WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&REAR WINDOW WIPER-WITH(INTERMITTENT)

main82111-21770supersedes 82111-21691i201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

main82111-21771supersedes 82111-21691i201412-201502

LIMITED PACKAGE-SPECIAL EDITION

main82111-21840supersedes 82111-21661i201305-201307

LIMITED PACKAGE-SCION 10

main82111-21850supersedes 82111-21691i201305-201307

LIMITED PACKAGE-SCION 10

main82111-21860supersedes 82111-21661i201305-201307

LIMITED PACKAGE-SCION 10&REAR WINDOW WIPER-WITH(INTERMITTENT)

main82111-21870supersedes 82111-21691i201305-201307

LIMITED PACKAGE-SCION 10&REAR WINDOW WIPER-WITH(INTERMITTENT)

main82111-21880supersedes 82111-21711i201305-201307

LIMITED PACKAGE-SCION 10

main82111-21890supersedes 82111-21721i201305-201307

LIMITED PACKAGE-SCION 10

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12130i201008-201305

82815BCOVER, WIRING HARNESS PROTECTOR

82817PROTECTOR, WIRING HARNESS, NO.1

82817APROTECTOR, WIRING HARNESS, NO.2

8401SWITCH & RELAY & COMPUTER

9011906915

9415180600

8 parts on this diagram · 9 diagrams in section
