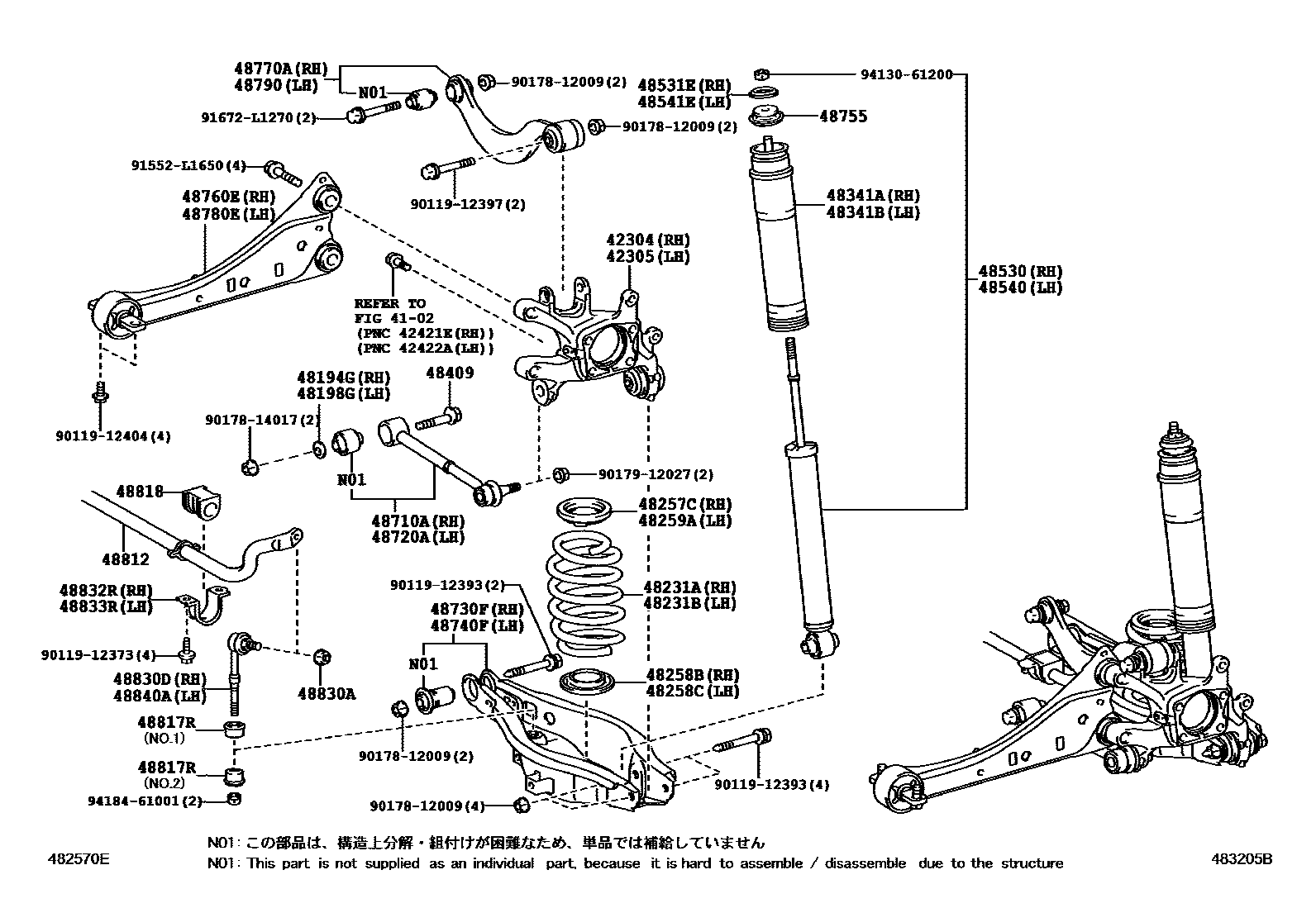

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-21050iAGT20201008-201305

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-21050iAGT20201008-201305

48194GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH

main48198-42010iAGT20201008-201305

48198GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH

main48198-42010iAGT20201008-201305

48231ASPRING, COIL, REAR RH

main48231-21240iAGT20201008-201305

main48231-21241iAGT20201509-201606

48231BSPRING, COIL, REAR LH

main48231-21240iAGT20201008-201305

main48231-21241iAGT20201509-201606

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iAGT20201008-201009

main48257-75010iAGT20201010-201305

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-12050iAGT20201008-201305

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-12050iAGT20201008-201305

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iAGT20201008-201009

main48257-75010iAGT20201010-201305

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-75010iAGT20201008-201305

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-75010iAGT20201008-201305

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-42030×2iAGT20201008-201305

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80568iAGT20201008-201305

MARK 48530-21180

main48530-80678iAGT20201305

MARK 48530-21200

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90948-02159iAGT20201008-201305

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80568iAGT20201008-201305

MARK 48530-21180

main48530-80678iAGT20201305

MARK 48530-21200

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90948-02159iAGT20201008-201305

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-72010iAGT20201008-201305

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-72010iAGT20201305

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-21120iAGT20201112-201305

main48730-75010iAGT20201305

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-21120iAGT20201112-201305

main48740-75010iAGT20201305

48755SUPPORT, REAR SUSPENSION

main48755-12100×2iAGT20201008-201305

48760EARM ASSY, TRAILING, REAR RH

main48760-12010iAGT20201008-201305

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-12010iAGT20201008-201305

48780EARM ASSY, TRAILING, REAR LH

main48780-12140iAGT20201008-201305

48790ARM ASSY, UPPER CONTROL, REAR LH

main48770-12010iAGT20201008-201305

48812BAR, STABILIZER, REAR

main48812-12380iAGT20201305

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12020×2iAGT20201305

NO.1

main48817-12030×2iAGT20201008-201305

NO.2

48818BUSH, STABILIZER, REAR

main48818-12280×2iAGT20201008-201305

48830ANUT(FOR REAR STABILIZER LINK)

main94151-21241×2iAGT20201008-201305

48830DLINK ASSY, REAR STABILIZER, RH

main48830-12070iAGT20201008-201305

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-12050iAGT20201008-201305

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48832-12050iAGT20201008-201305

48840ALINK ASSY, REAR STABILIZER, LH

main48830-12070iAGT20201008-201305

9011912373

main90119-12373

9011912393

main90119-12393

9011912397

main90119-12397

9011912404

main90119-12404

9017812009

main90178-12009

9017814017

main90178-14017

9017912027

main90179-12027

91552L1650

main91552-L1650

91672L1270

main91672-L1270

9413061200

main94130-61200

9418461001

main94184-61001
