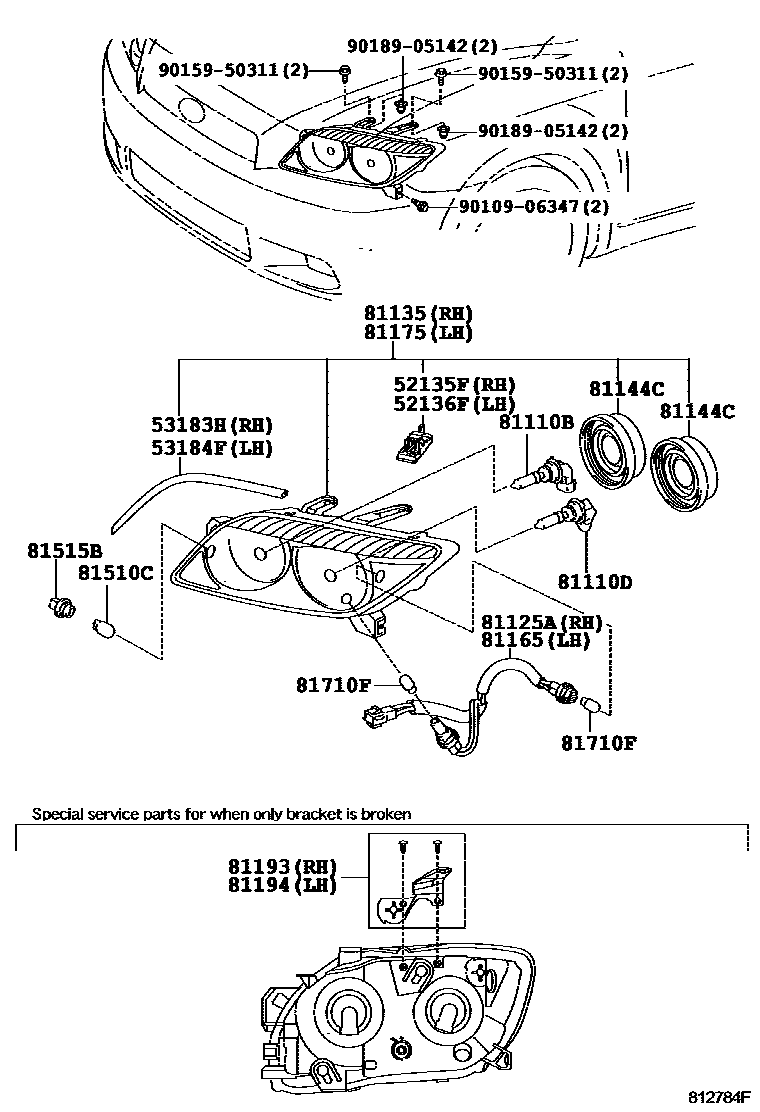

HEADLAMP

0001 1 0002 1BASE PACKAGE 0003 1

52135FBRACKET, FRONT BUMPER, NO.1 RH

main52135-21020iANT10200605-200804

BASE PACKAGE

52136FBRACKET, FRONT BUMPER NO.1, LH

main52136-21020iANT10200605-200804

BASE PACKAGE

53183HSEAL, HEADLAMP COVER, RH

main53183-21030iANT10200405

53184FSEAL, HEADLAMP COVER, LH

main53184-21030iANT10200405

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iANT10200405-200704

12V 65W

main90981-13046×2iANT10200704

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047×2iANT10200405-200704

12V 51W,HALOGEN

main90981-13075×2iANT10200704

12V 55W,HALOGEN

81125ACORD, HEADLAMP, RH

main81125-21130iANT10200405-200704

main81125-21190iANT10200704

81135UNIT ASSY, HEADLAMP, RH

main81130-21130iANT10200405-200704

main81130-21190iANT10200704

main81130-21170iANT10200701-200703

SPECIAL EDITION

81144CCOVER, HEADLAMP SOCKET

main90075-65006×4iANT10200405

81165CORD, HEADLAMP, LH

main81125-21130iANT10200405-200704

main81125-21190iANT10200704

81175UNIT ASSY, HEADLAMP, LH

main81170-21130iANT10200405-200704

main81170-21190iANT10200704

main81170-21170iANT10200701-200703

SPECIAL EDITION

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-21030iANT10200405-200704

main81193-21040iANT10200704

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-21030iANT10200405-200704

main81194-21040iANT10200704

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iANT10200701-200703

12V 21W,AMBER,SPECIAL EDITION

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iANT10200605-200804

BASE PACKAGE

81710FBULB, FRONT SIDE MAKER LAMP

main99132-12050×4iANT10200701-200703

SPECIAL EDITION

9010906347

main90109-06347

9015950311

main90159-50311

9018905142

main90189-05142

19 parts on this diagram · 3 diagrams in section
