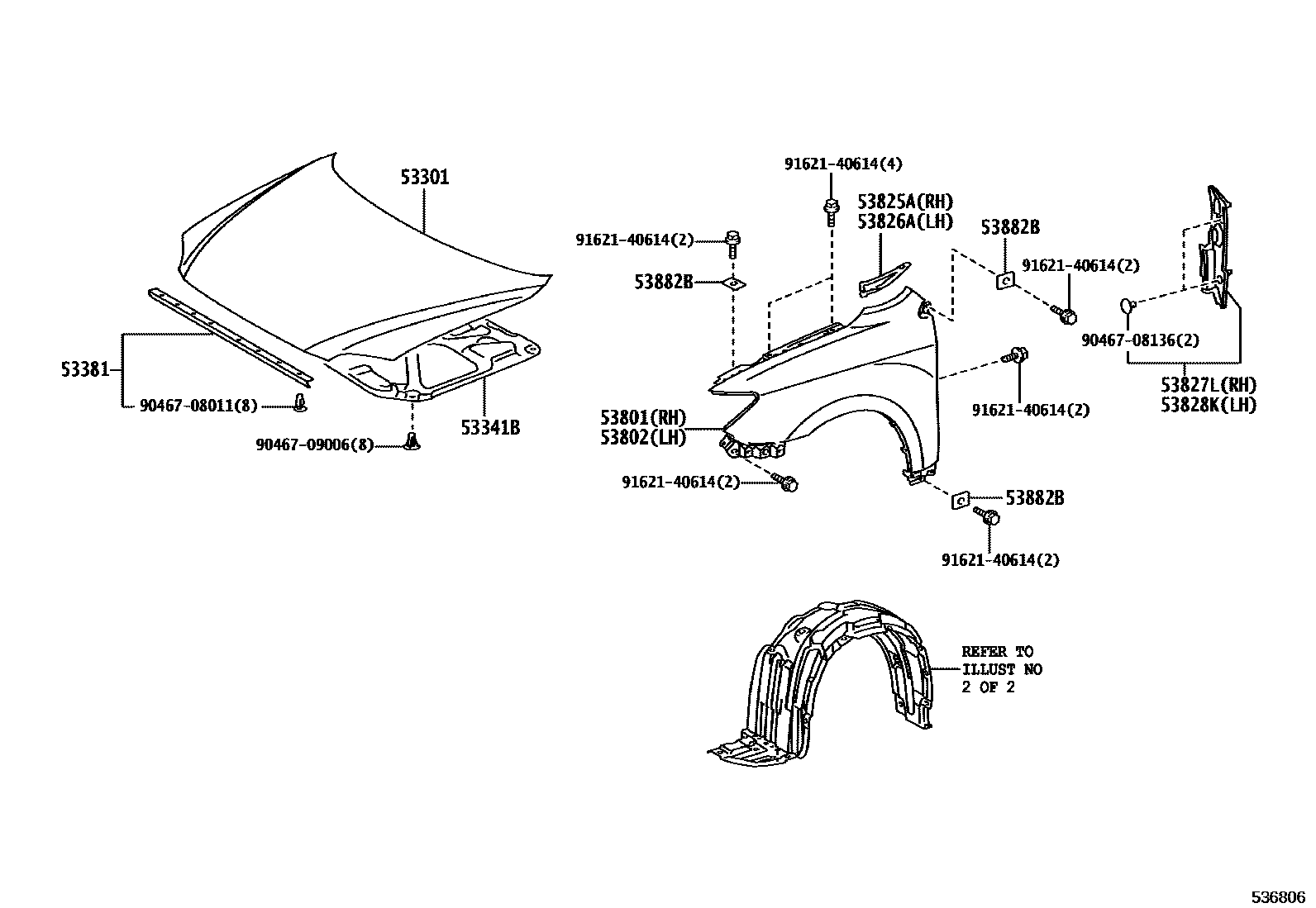

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-21040iANT10200405-201007

53341BINSULATOR, HOOD

main53341-21050iANT10200405

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-20180iANT10200405

53801FENDER SUB-ASSY, FRONT RH

main53801-21120iANT10200405

53802FENDER SUB-ASSY, FRONT LH

main53802-21120iANT10200405

53825APROTECTOR, FRONT FENDER, UPPER RH

main53866-21010iANT10200405

53826APROTECTOR, FRONT FENDER, UPPER LH

main53867-21020iANT10200405

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-21030iANT10200405

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-21030iANT10200405

53882BSEAL, FRONT FENDER, RH

main53882-16030×6iANT10200405

9046708011

main90467-08011

9046708136

main90467-08136

9046709006

main90467-09006

9162140614

main91621-40614

14 parts on this diagram · 2 diagrams in section
