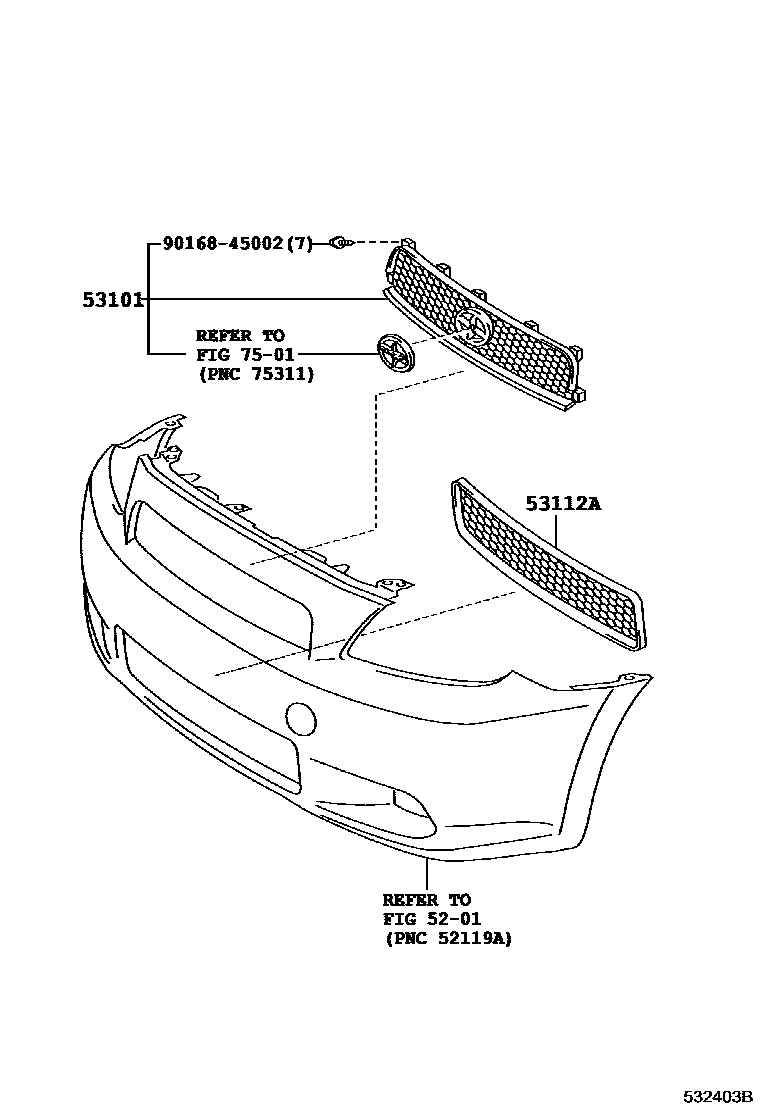

RADIATOR GRILLE

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53101GRILLE SUB-ASSY, RADIATOR

main53101-21070iANT10200405-200704

PLATED

main53101-21110iANT10200704-201007

NO PAINT REQ.

main53101-21100iANT10200605-200704

NO PAINT REQ.,BASE PACKAGE

53112AGRILLE, RADIATOR, LOWER

main53112-21030iANT10200405-200704

main53112-21040iANT10200704-201007

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9016845002

main90168-45002

5 parts on this diagram · 2 diagrams in section
