11711BEARING, CRANKSHAFT

main11711-28010-01×5i200405-200511

MARK 1,REFER REPAIR MANUAL

main11711-28010-02×5i200405-200511

MARK 2,REFER REPAIR MANUAL

main11711-28010-03×5i200405-200511

MARK 3,REFER REPAIR MANUAL

main11711-28010-04×5i200405-200511

MARK 4,REFER REPAIR MANUAL

main11711-28020-01×5i200511-200811

MARK1,REFER REPAIR MANUAL

main11711-28020-02×5i200511-200811

MARK2,REFER REPAIR MANUAL

main11711-28020-03×5i200511-200811

MARK3,REFER REPAIR MANUAL

main11711-28020-04×5i200511-200811

MARK4,REFER REPAIR MANUAL

main11711-28021-01×5i200811

MARK 1,REFER REPAIR MANUAL

main11711-28021-02×5i200811

MARK 2,REFER REPAIR MANUAL

main11711-28021-03×5i200811

MARK 3,REFER REPAIR MANUAL

main11711-28021-04×5i200811

MARK 4,REFER REPAIR MANUAL

11721BEARING, CRANKSHAFT, NO.2

main11721-28010-01×5i200405-200511

MARK 1,REFER REPAIR MANUAL

main11721-28010-02×5i200405-200511

MARK 2,REFER REPAIR MANUAL

main11721-28010-03×5i200405-200511

MARK 3,REFER REPAIR MANUAL

main11721-28010-04×5i200405-200511

MARK 4,REFER REPAIR MANUAL

main11721-28020-01×5i200511-200811

MARK1,REFER REPAIR MANUAL

main11721-28020-02×5i200511-200811

MARK2,REFER REPAIR MANUAL

main11721-28020-03×5i200511-200811

MARK3,REFER REPAIR MANUAL

main11721-28020-04×5i200511-200811

MARK4,REFER REPAIR MANUAL

main11721-28021-01×5i200811

MARK 1,REFER REPAIR MANUAL

main11721-28021-02×5i200811

MARK 2,REFER REPAIR MANUAL

main11721-28021-03×5i200811

MARK 3,REFER REPAIR MANUAL

main11721-28021-04×5i200811

MARK 4,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-28020×2i200405

STD

11911BEARING, BALANCESHAFT, NO.1

main11911-28010-01×8i200405-200811

MARK 1,REFER REPAIR MANUAL

main11911-28010-02×8i200405-200811

MARK 2,REFER REPAIR MANUAL

main11911-28010-03×8i200405-200811

MARK 3,REFER REPAIR MANUAL

main11911-28011-01×8i200811

MARK 1,REFER REPAIR MANUAL

main11911-28011-02×8i200811

MARK 2,REFER REPAIR MANUAL

main11911-28011-03×8i200811

MARK 3,REFER REPAIR MANUAL

13011RING SET, PISTON

main13011-28102i200405-200605

STD

main13011-28160i200605-200912

STD

main13011-28161i200912

STD

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

13041BEARING, CONNECTING ROD

main13281-28010-01×8i200405-200811

MARK 1,REFER REPAIR MANUAL

main13281-28010-02×8i200405-200811

MARK 2,REFER REPAIR MANUAL

main13281-28010-03×8i200405-200811

MARK 3,REFER REPAIR MANUAL

main13281-28011-01×8i200811

MARK 1,REFER REPAIR MANUAL

main13281-28011-02×8i200811

MARK 2,REFER REPAIR MANUAL

main13281-28011-03×8i200811

MARK 3,REFER REPAIR MANUAL

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×8i200405

13201ROD SUB-ASSY, CONNECTING

main13201-09790-A0×4i200801-200908

MARK A,(L):REFER R/M

main13201-09790-B0×4i200801-200908

MARK B,(L):REFER R/M

main13201-09790-C0×4i200801-200908

MARK C,(L):REFER R/M

main13201-09791-A0×4i200908

MARK A,(L):REFER R/M

main13201-09791-B0×4i200908

MARK B,(L):REFER R/M

main13201-09791-C0×4i200908

MARK C,(L):REFER R/M

main13201-29685-A0×4i200405-200801

MARK A,REFER REPAIR MANUAL

main13201-29685-B0×4i200405-200801

MARK B,REFER REPAIR MANUAL

main13201-29685-C0×4i200405-200801

MARK C,REFER REPAIR MANUAL

main13201-29686-A0×4i200811

MARK A,(J):REFER R/M

main13201-29686-B0×4i200811

MARK B,(J):REFER R/M

main13201-29686-C0×4i200811

MARK C,(J):REFER R/M

13211PISTON

main13211-28031-A0×4i200405-200605

MARK A,REFER REPAIR MANUAL

main13211-28031-B0×4i200405-200605

MARK B,REFER REPAIR MANUAL

main13211-28031-C0×4i200405-200605

MARK C,REFER REPAIR MANUAL

main13211-28110-A0×4i200605-200806

MARKA,REFER REPAIR MANUAL

main13211-28110-B0×4i200605-200806

MARKB,REFER REPAIR MANUAL

main13211-28110-C0×4i200605-200806

MARKC,REFER REPAIR MANUAL

main13211-28111-A0×4i200806-200911

MARK A,REFER REPAIR MANUAL

main13211-28111-B0×4i200806-200911

MARK B,REFER REPAIR MANUAL

main13211-28111-C0×4i200806-200911

MARK C,REFER REPAIR MANUAL

main13211-28112-A0×4i200911

MARK A,REFER REPAIR MANUAL

main13211-28112-B0×4i200911

MARK B,REFER REPAIR MANUAL

main13211-28112-C0×4i200911

MARK C,REFER REPAIR MANUAL

13251PIN, PISTON

main13251-28010-A0×4i200405-200605

MARK A,REFER REPAIR MANUAL

main13251-28010-B0×4i200405-200605

MARK B,REFER REPAIR MANUAL

main13251-28010-C0×4i200405-200605

MARK C,REFER REPAIR MANUAL

main13251-28020-A0×4i200605

MARKA,REFER REPAIR MANUAL

main13251-28020-B0×4i200605

MARKB,REFER REPAIR MANUAL

main13251-28020-C0×4i200605

MARKC,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-28010×8i200405

13405FLYWHEEL SUB-ASSY

main13405-28020i200405

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i200405

L=23,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-12322×8i200405

13411CRANKSHAFT

main13401-0H010i200411

(L)

main13401-28010i200405

(J)

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

main95161-30416i200405

13453GEAR, FLYWHEEL RING

main13453-74011i200405

13471PULLEY, CRANKSHAFT

main13470-28020i200405

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30416i200405

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i200405

13519GEAR, OIL PUMP DRIVE

main13519-28010i200405

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-28010i200405-200601

main13521-28030i200601

13601ABALANCESHAFT SUB-ASSY, NO.1

main13601-28010i200405-200505

main13601-28011i200505-200509

main13601-28020i200605

main13601-28030i200509-200605

13602BALANCESHAFT SUB-ASSY, NO.2

main13602-28010i200405-200505

main13602-28011i200505-200509

main13602-28020i200605

main13602-28030i200509-200605

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-28010i200405

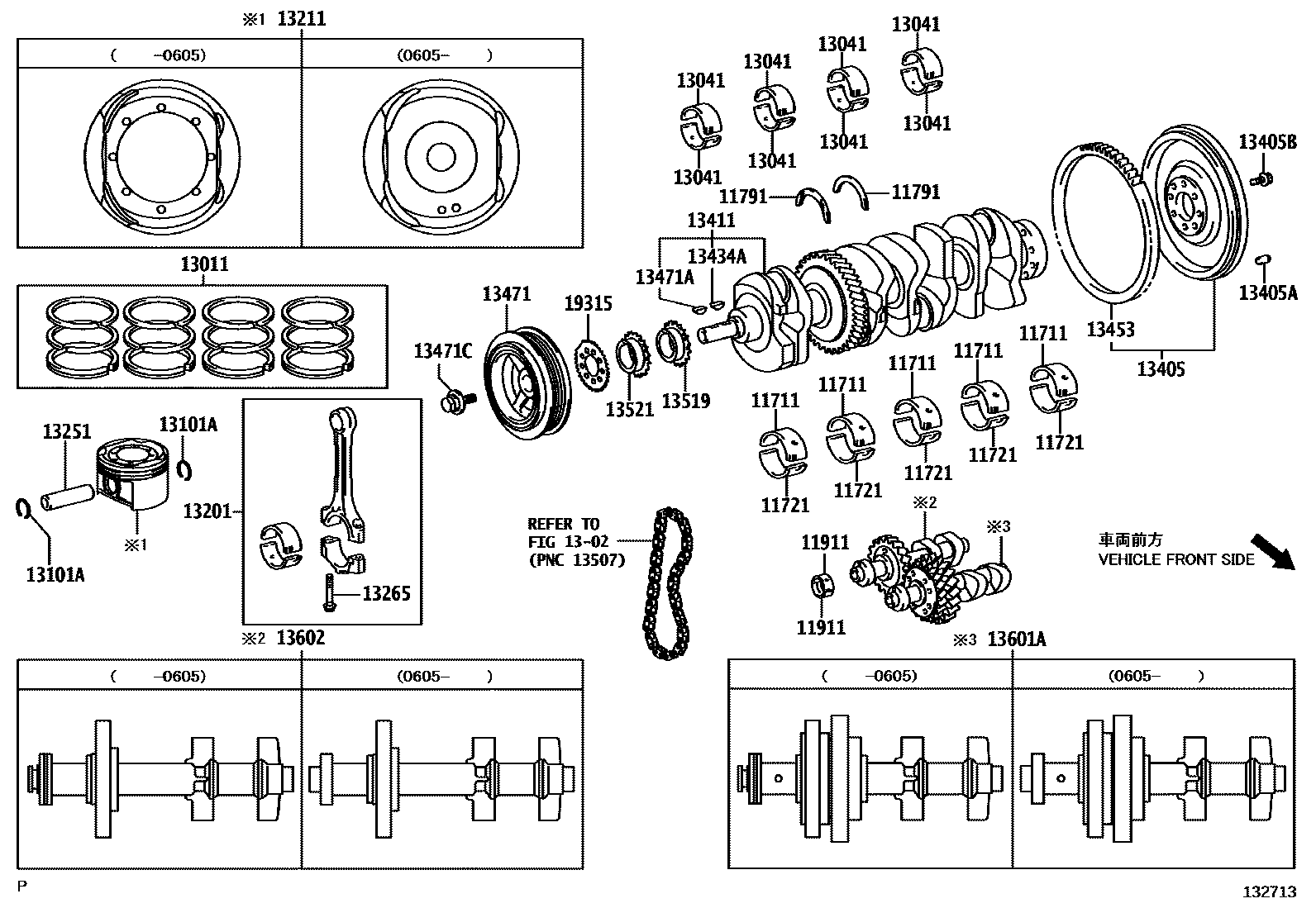

CRANKSHAFT & PISTON
