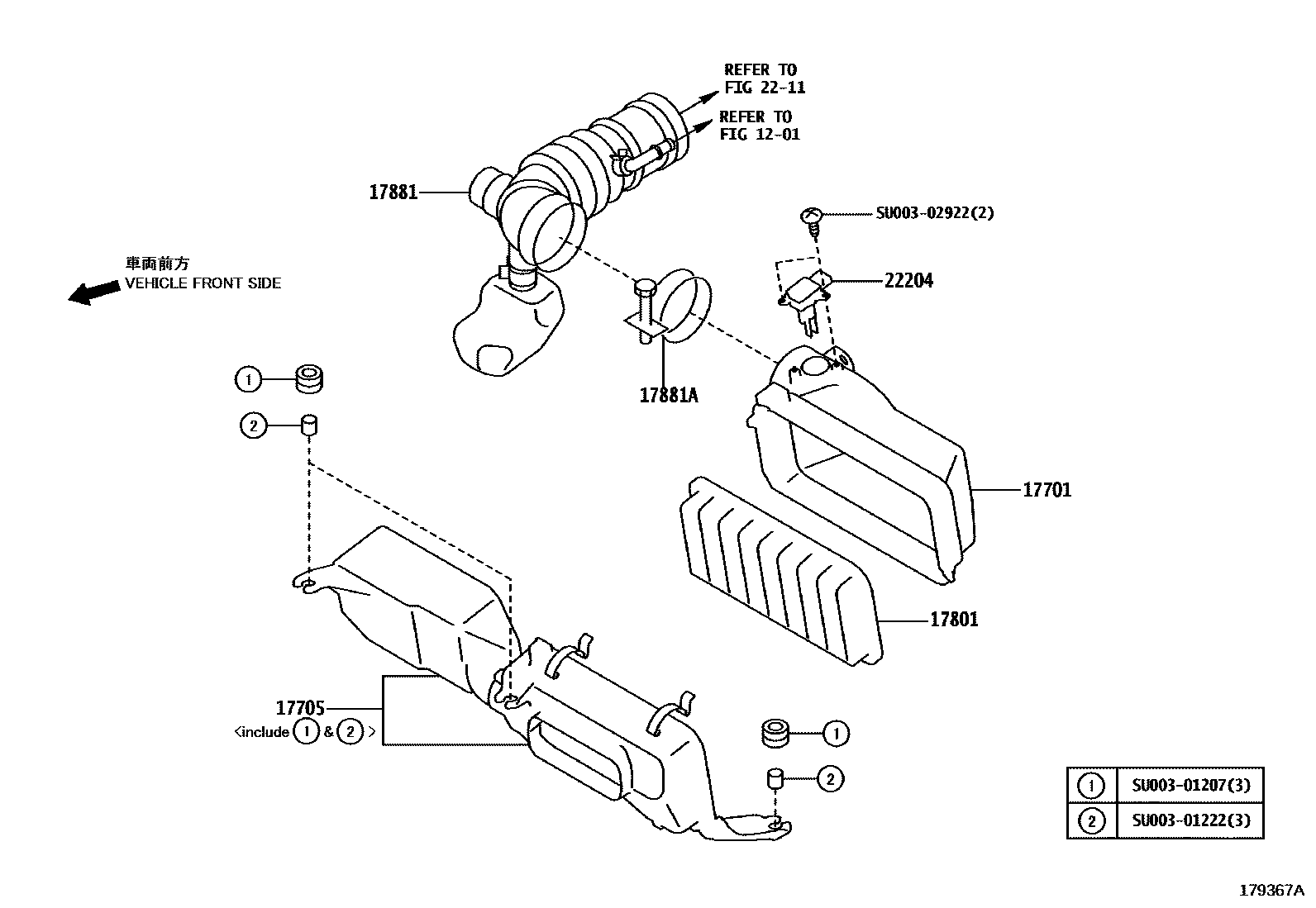

AIR CLEANER

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17701CASE SUB-ASSY, AIR CLEANER

mainSU00301214iFA20..ZN6..6FC;FA20..ZN6..6F..(HI1,SPE1)201807-201907

mainSU00307170iFA20..ZN6..6F..(SPE,STD)201607-201711

17705CAP SUB-ASSY, AIR CLEANER

mainSU00301215iFA20..ZN6..6FC;FA20..ZN6..6F..HI201607-201711

mainSU00307171iFA20..ZN6..6F201908-202012

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

mainSU00300319iFA20..ZN6..6FC;FA20..ZN6..6F..(HI1,SPE1)201807-201907

mainSU00306405iFA20..ZN6..6F..(SPE,STD)201607-201711

17881HOSE, AIR CLEANER, NO.1

mainSU00305882iFA20..ZN6..6FC;FA20..ZN6..6F..(HI1,SPE1)201807-201907

mainSU00307169iFA20..ZN6..6F201908-202012

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

mainSU00301217iFA20..ZN6201807-201907

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

mainSU00300427iFA20..ZN6201607-201711

SU00301207

mainSU003-01207

SU00301222

mainSU003-01222

SU00302922

mainSU003-02922

11 parts on this diagram · 2 diagrams in section
