ELECTRONIC FUEL INJECTION SYSTEM

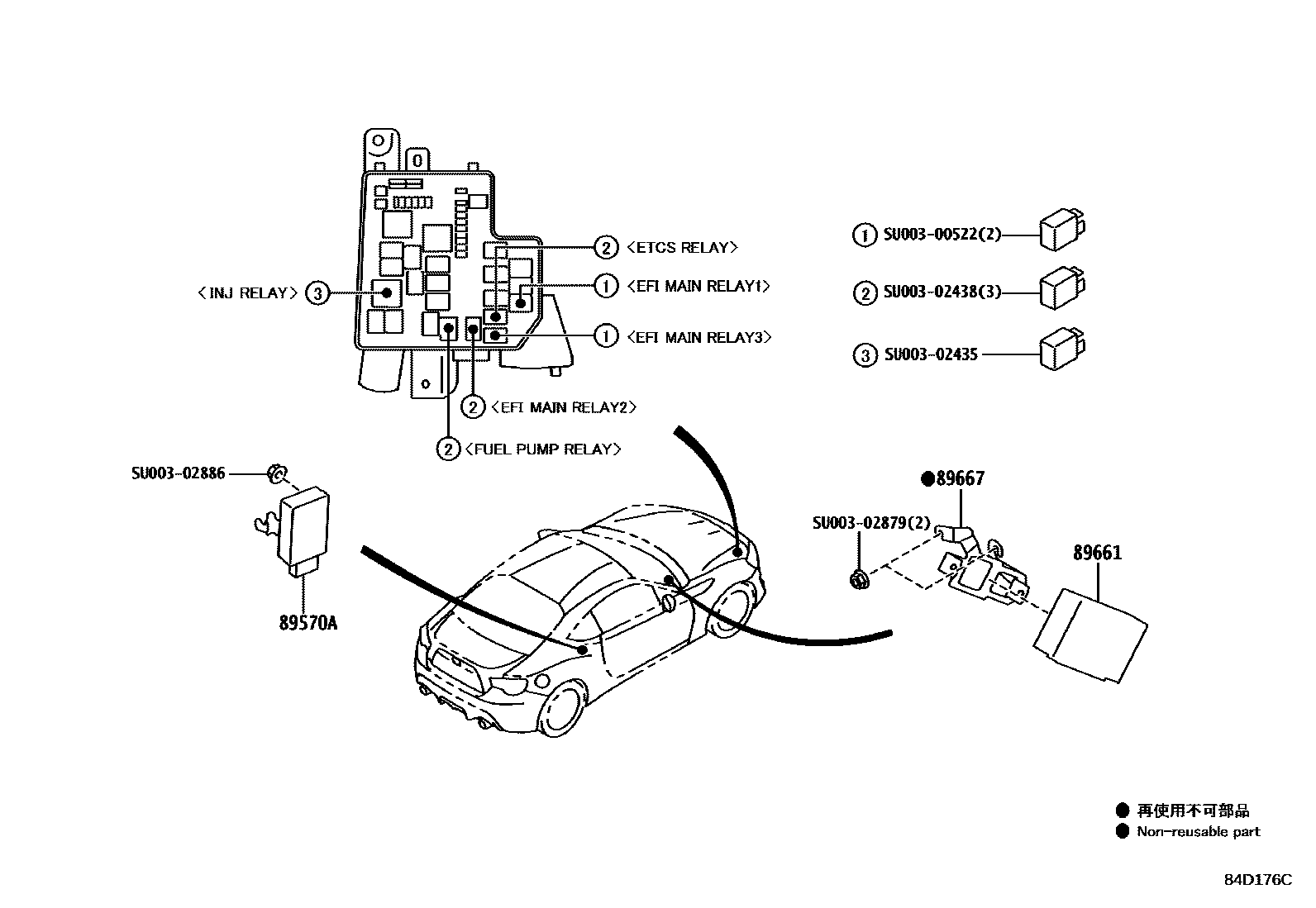

0001 1COMPUTER & RELAY 0002 1

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

mainSU00300426iZN6201203-201308

89661COMPUTER, ENGINE CONTROL

mainSU00300433iZN6..6FC..STD201203-201207

mainSU00300434iZN6..6F..STD201203-201207

mainSU00300440iZN6..6FC..(BASE,HI)201203-201212

mainSU00300444iZN6..6F..(BASE,HI)201203-201211

mainSU00304521iZN6..6FC..STD201207-201209

mainSU00304522iZN6..6F..STD201207-201209

mainSU00304567iZN6..6FC..STD201209-201301

mainSU00304568iZN6..6F..STD201209-201301

mainSU00304593iZN6..6FC..(BASE,HI)201301-201306

mainSU00304596iZN6..6F..(BASE,HI)201211-201306

mainSU00304673iZN6..6FC..(LIMD,STD)201301-201308

mainSU00304674iZN6..6F..(LIMD,STD)201301-201308

mainSU00304675iZN6..6FC..(BASE,HI)..B201307-201404

mainSU00304677iZN6..6F..(BASE,HI)201306-201308

mainSU00304748iZN6..6FC..STD..B201307-201309

mainSU00304749iZN6..6F..STD..B201307-201309

mainSU00305185iZN6..6FC..(LIMD,STD)201309-201404

mainSU00305186iZN6..6F..(LIMD,STD)201309-201404

mainSU00305262iZN6..6F..(LIMD,STD)..C201404-201504

mainSU00305263iZN6..6FC..(LIMD,STD)..C201404-201504

mainSU00305814iZN6..6FC..(BASE,HI)..D201504-201606

DENSO

mainSU00305815iZN6..6F..(BASE,HI)201406-201504

mainSU00305885iZN6..6F..STD..D201504-201509

mainSU00305886iZN6..6FC..STD..D201504-201509

mainSU00306257iZN6..6F..(SPE,STD)201509-201606

DENSO

mainSU00306258iZN6..6FC..(SPE,STD)201509-201606

DENSO

89667BRACKET, ENGINE CONTROL COMPUTER

mainSU00300423iZN6201203-201308

SU00300522

mainSU003-00522

SU00302435

mainSU003-02435

SU00302438

mainSU003-02438

SU00302879

mainSU003-02879

SU00302886

mainSU003-02886

8 parts on this diagram · 2 diagrams in section
