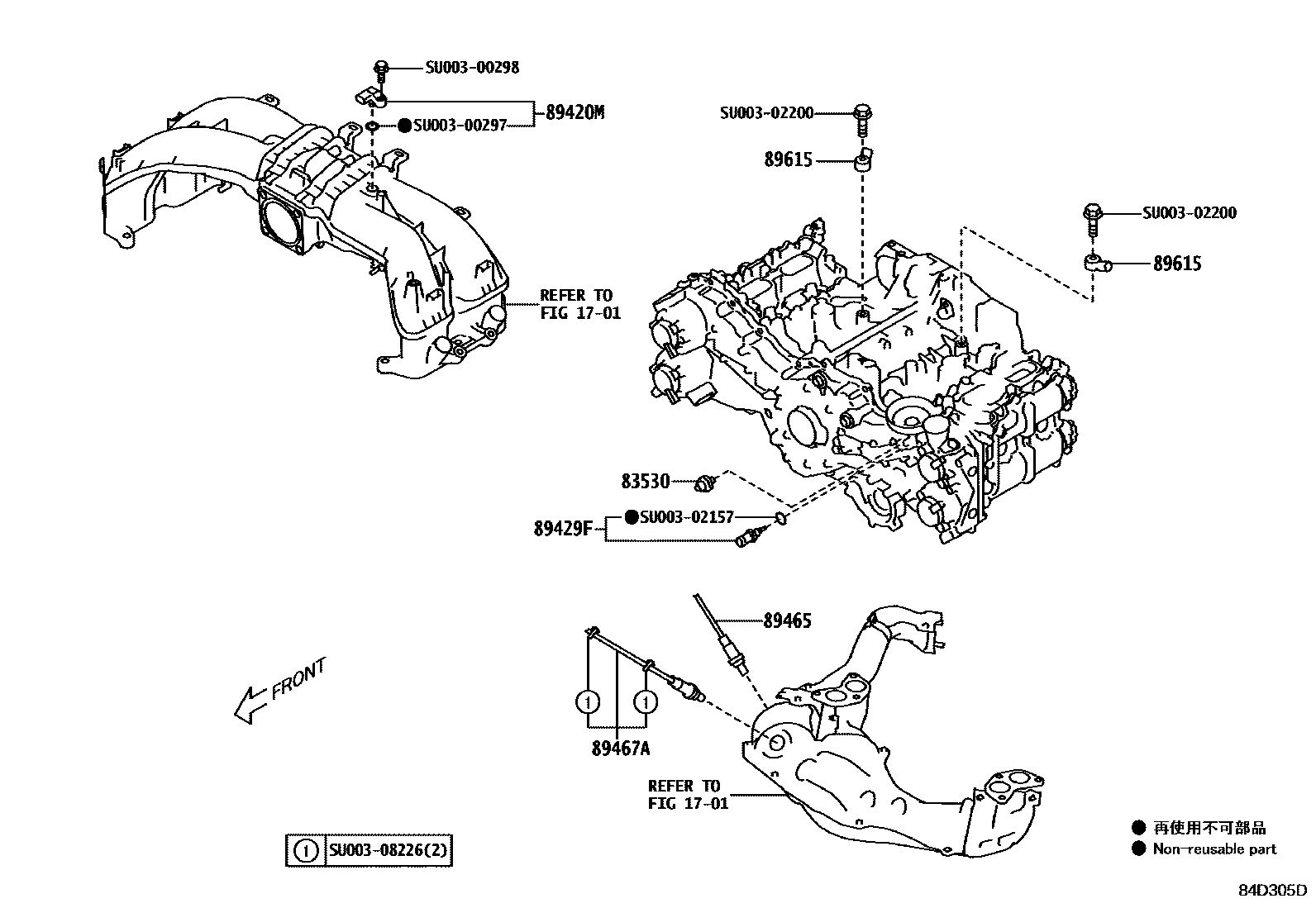

1701MANIFOLD

→ Go to FIG 17-01

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

mainSU00300523iZN6..C201404-201504

mainSU00306104iZN6201506-201606

89420MSENSOR ASSY, AIR PRESSURE

mainSU00300419iZN6..C201404-201504

89429FSENSOR, TEMPERATURE

mainSU00300420iZN6201203-201308

mainSU00304714iZN6..C201404-201504

89465SENSOR, OXYGEN

mainSU00300428iZN6201203-201308

89467ASENSOR, WIDE RANGE AIR FUEL RATIO

mainSU00300425iZN6..B201307-201404

89615SENSOR, KNOCK CONTROL

mainSU00300415×2iZN6..D201504-201606

SU00300297

mainSU003-00297

SU00300298

mainSU003-00298

SU00302157

mainSU003-02157

SU00302200

mainSU003-02200

SU00308226

mainSU003-08226

12 parts on this diagram · 12 diagrams in section
