ROOF PANEL & BACK WINDOW GLASS

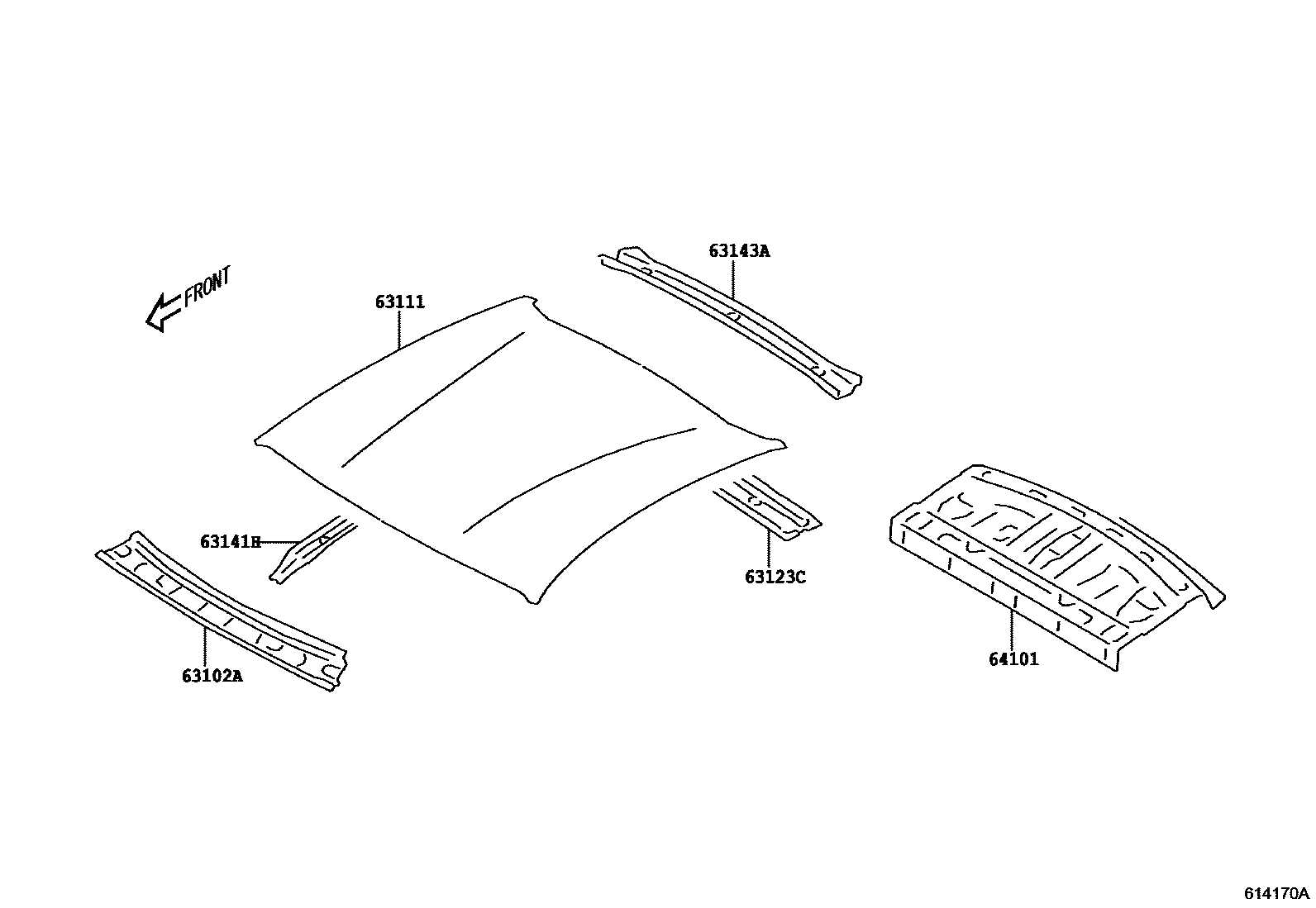

Parts diagram

63102APANEL SUB-ASSY, WINDSHIELD HEADER

mainSU00301374i201203-201308

63111PANEL, ROOF

mainSU00301376i201203-201308

63123CREINFORCEMENT, ROOF PANEL

mainSU00301378i201203-201308

63141HREINFORCEMENT, ROOF PANEL, CENTER

mainSU00301377i201203-201308

63143AREINFORCEMENT, ROOF PANEL

mainSU00301375i201203-201308

64101PANEL SUB-ASSY, UPPER BACK

mainSU00301373i201203-201305

mainSU00304760i201305-201308

mainSU00305172i201308-201404

mainSU00305906i201504-201512

mainSU00307172i201512-201606

6 parts on this diagram · 2 diagrams in section
