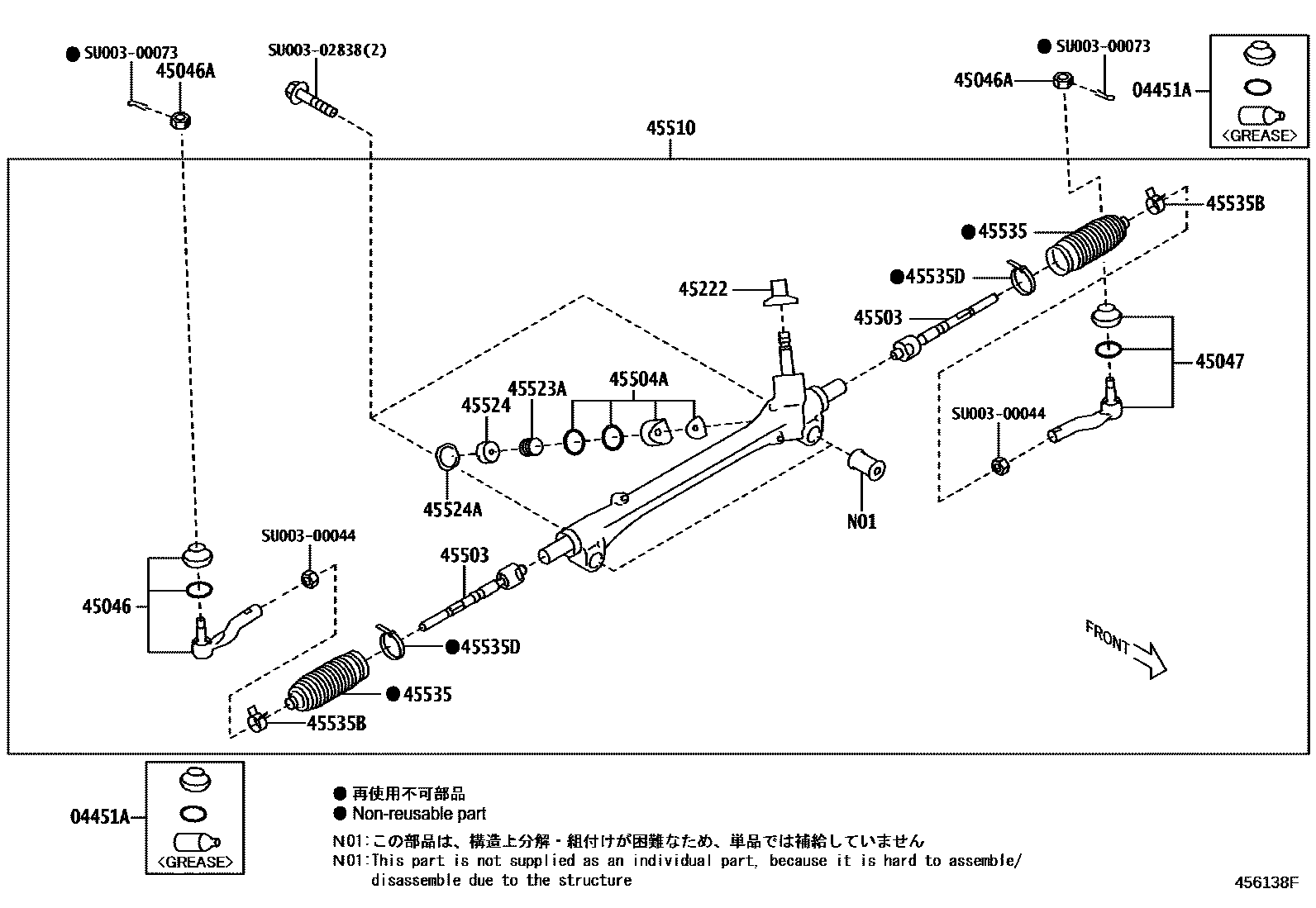

FRONT STEERING GEAR & LINK

04451AREPAIR KIT, TIE ROD END

mainSU00304597×2iZN6201203-201308

45046END SUB-ASSY, TIE ROD, RH

mainSU00300833iZN6201203-201308

45046ANUT, CASTLE(FOR TIE ROD END)

mainSU00300047×2iZN6201203-201308

45047END SUB-ASSY, TIE ROD, LH

mainSU00300834iZN6201203-201308

45222COVER, STEERING GEAR DUST

mainSU00300830iZN6201203-201308

45503END SUB-ASSY, STEERING RACK

mainSU00300832×2iZN6201203-201308

45504AGUIDE SUB-ASSY, RACK

mainSU00300828iZN6201203-201308

45510GEAR ASSY, STEERING

mainSU00300841iZN6201203-201308

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

mainSU00300827iZN6201203-201308

45524CAP, STEERING RACK GUIDE SPRING

mainSU00300829iZN6201203-201308

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

mainSU00300839iZN6201203-201308

45535BOOT, STEERING RACK, NO.1

mainSU00300831×2iZN6201203-201308

45535BCLIP(FOR STEERING RACK BOOT)

mainSU00300825×2iZN6201203-201308

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

mainSU00300826×2iZN6201203-201308

SU00300044

mainSU003-00044

SU00300073

mainSU003-00073

SU00302838

mainSU003-02838

17 parts on this diagram · 1 diagram in section
