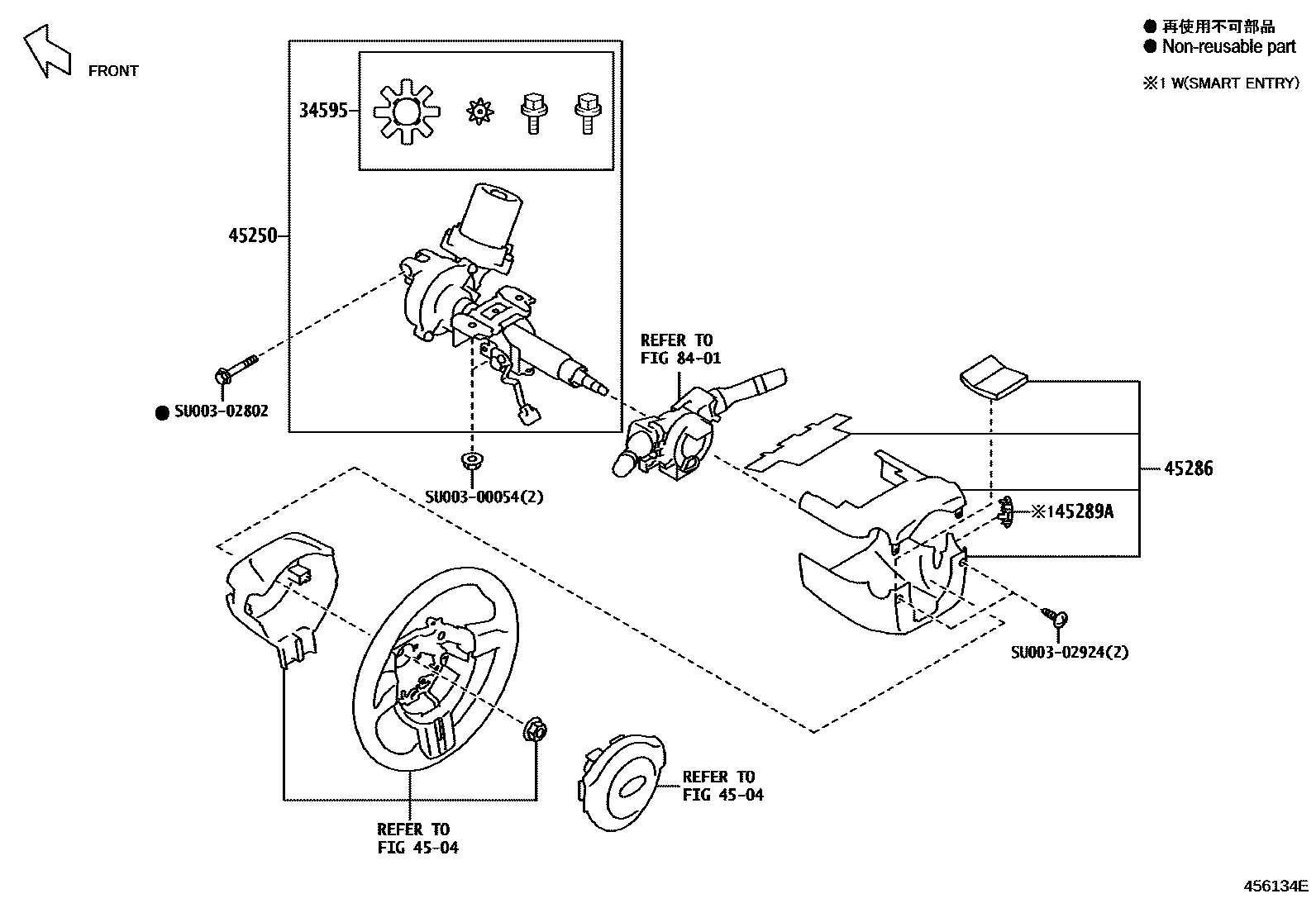

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1W/O(SMART ENTRY) 0004 1W(SMART ENTRY)

34595REPAIR KIT, DAMPER

mainSU00311027iZN6201203-201308

4504STEERING WHEEL

→ Go to FIG 45-04

45250COLUMN ASSY, STEERING

mainSU00300869iZN6..(HI,LIMD)..C201404-201504

mainSU00300870iZN6..(BASE,STD)..C201404-201504

mainSU00306815iZN6..HI,SPE201511-201606

mainSU00306816iZN6..BASE,STD201511-201606

45286COVER, STEERING COLUMN

mainSU00300860iZN6..C201404-201504

BLACK

mainSU00307206iZN6201604-201606

BLACK

45289ASUPPORT, STEERING COLUMN COVER

mainSU00300864iZN6..HI,LIMD201203-201308

BLACK

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00300054

mainSU003-00054

SU00302802

mainSU003-02802

SU00302924

mainSU003-02924

9 parts on this diagram · 4 diagrams in section
