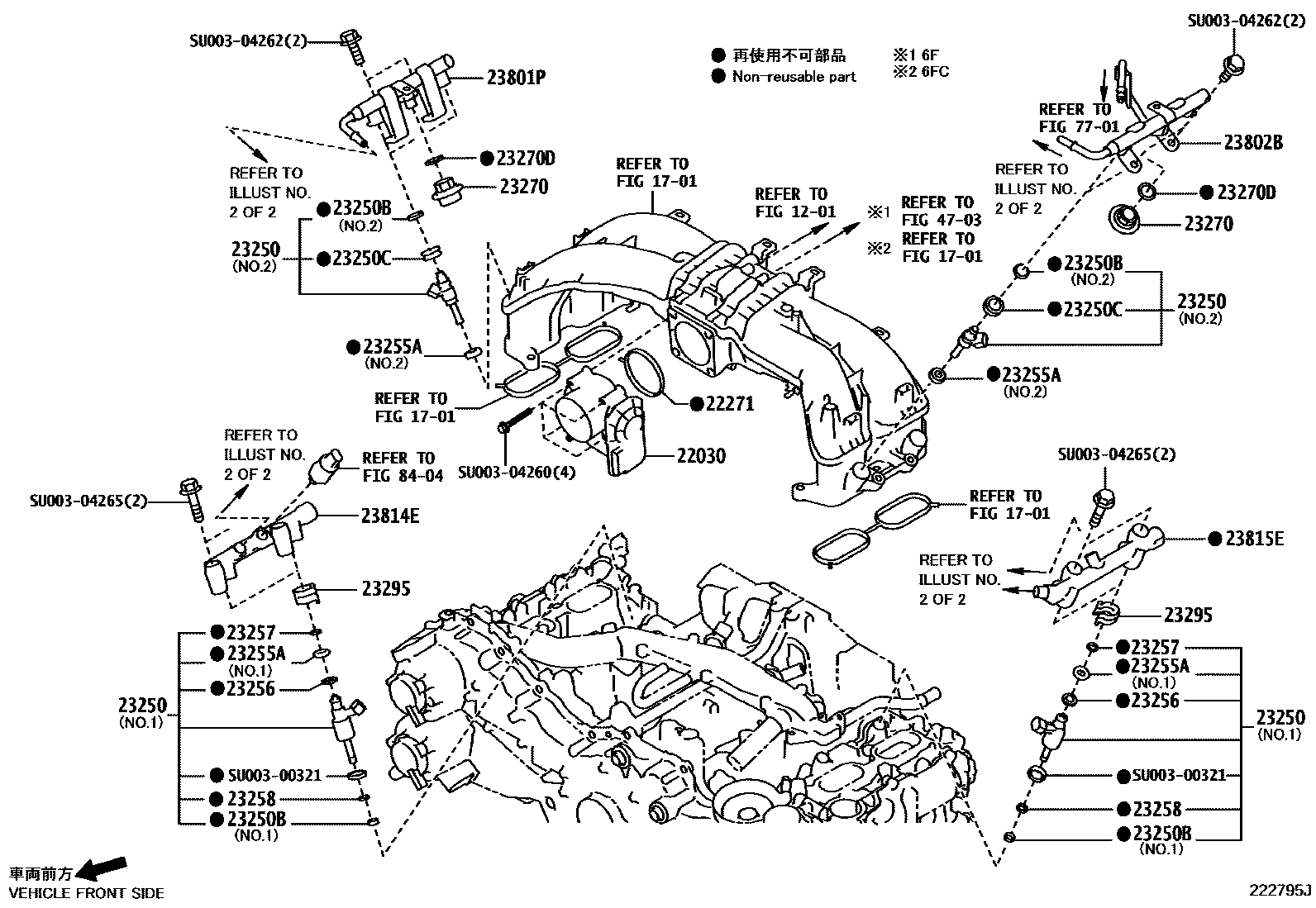

FUEL INJECTION SYSTEM

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

mainSU00300313iFA20..ZN6..D201504-201606

22271GASKET, THROTTLE BODY

mainSU00300316iFA20..ZN6201203-201308

23250INJECTOR ASSY, FUEL

mainSU00300326×4iFA20..ZN6..B201307-201404

NO.2

mainSU00304460×4iFA20..ZN6..D201504-201606

MARK 1,NO.1

mainSU00304461×4iFA20..ZN6..B201307-201404

MARK 2,NO.1

mainSU00304462×4iFA20..ZN6..B201307-201404

MARK 3,NO.1

23250BRING, O(FOR FUEL INJECTOR)

mainSU00300322×4iFA20..ZN6201203-201308

NO.1

mainSU00300335×4iFA20..ZN6..C201404-201504

NO.2

23250CGROMMET(FOR FUEL INJECTOR)

mainSU00300317×4iFA20..ZN6201203-201308

23255ASEAL, FUEL INJECTOR

mainSU00300323×4iFA20..ZN6201203-201308

NO.1

mainSU00300324×4iFA20..ZN6..C201404-201504

NO.2

23256RING, FUEL INJECTOR BACK-UP, NO.1

mainSU00300333×4iFA20..ZN6201203-201308

23257RING, FUEL INJECTOR BACK-UP, NO.2

mainSU00300334×4iFA20..ZN6..D201504-201606

23258RING, FUEL INJECTOR BACK-UP, NO.3

mainSU00305632×4iFA20..ZN6201203-201308

23270DAMPER ASSY, FUEL PRESSURE PULSATION

mainSU00300331×2iFA20..ZN6201203-201308

23270DGASKET(FOR PULSATION DAMPER)

mainSU00300346×2iFA20..ZN6201203-201308

23295HOLDER, INJECTOR, NO.1

mainSU00300320×4iFA20..ZN6201203-201308

23801PPIPE SUB-ASSY, FUEL, NO.1

mainSU00300338iFA20..ZN6201203-201308

23802BPIPE SUB-ASSY, FUEL, NO.2

mainSU00300340iFA20..ZN6201203-201308

23814EPIPE, FUEL DELIVERY, RH

mainSU00300336iFA20..ZN6201203-201308

23815PIPE, FUEL DELIVERY, NO.2

mainSU00300342iFA20..ZN6201203-201308

23815EPIPE, FUEL DELIVERY, LH

mainSU00300337iFA20..ZN6201203-201308

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

SU00300321

mainSU003-00321

SU00304260

mainSU003-04260

SU00304262

mainSU003-04262

SU00304265

mainSU003-04265

26 parts on this diagram · 2 diagrams in section
