VACUUM PIPING

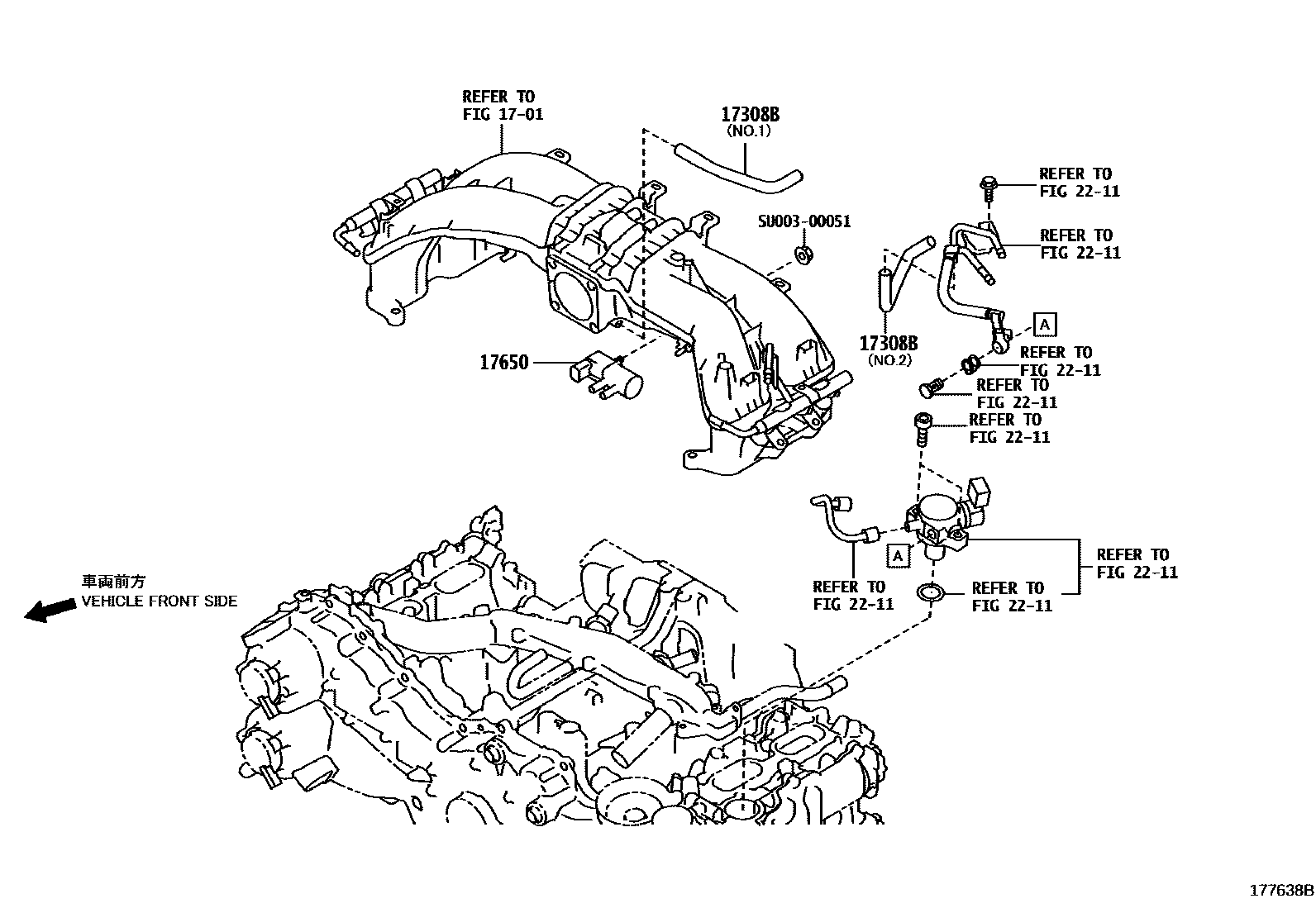

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

17308BHOSE SUB-ASSY, VACUUM

mainSU00303442i201404-201504

NO.1

mainSU00303443i201504-201605

NO.2

mainSU00307229i201605-201606

NO.1

mainSU00307230i201605-201606

NO.2

17650VALVE ASSY, VACUUM SWITCHING

mainSU00300314i201203-201308

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

SU00300051

mainSU003-00051

5 parts on this diagram · 1 diagram in section
