HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

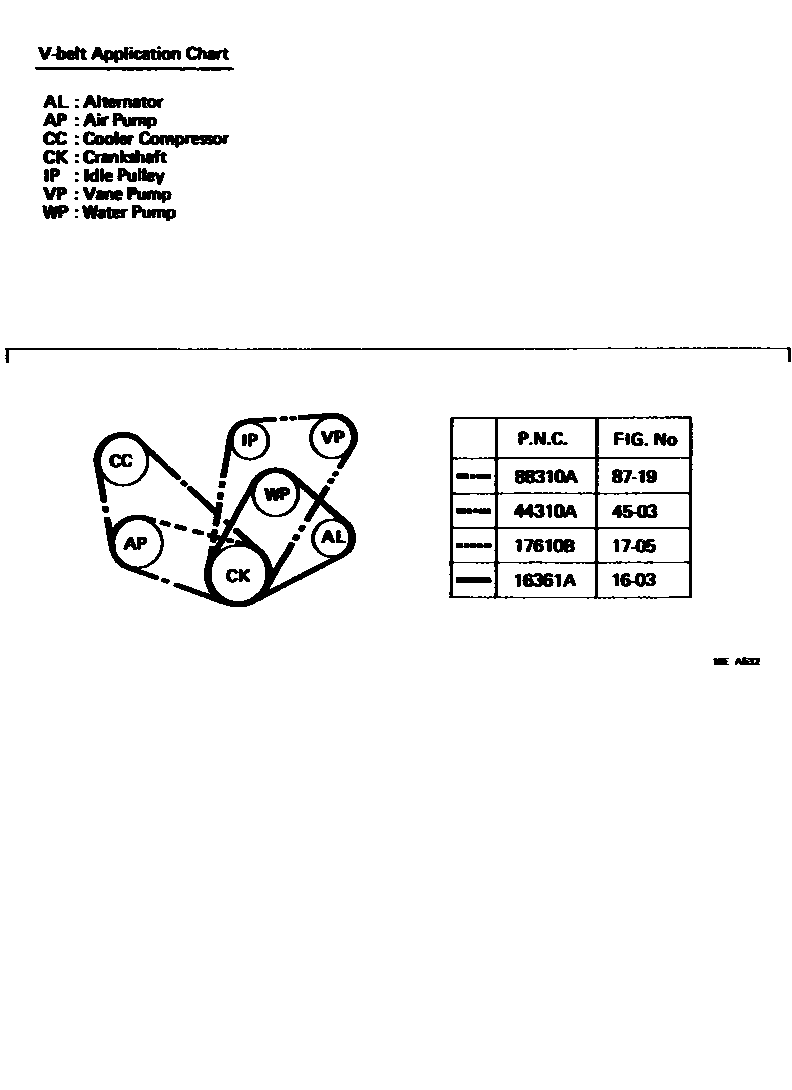

16361ABELT, V(FOR FAN & ALTERNATOR)

main99331-00880i20R..RT134197809-197908

L=880

main99331-10880i20R,22R..RT13#197908-198112

L=880

1705AIR PUMP

→ Go to FIG 17-05

17610BBELT, V(FOR AIR PUMP)

main99332-00865i20R..RT134197809-197908

L=865

main99332-10820i22R..RT135..USA198008-198112

L=820

main99332-10830i20R..RT134197908-198008

L=830

44310ABELT, V(FOR VANE PUMP)

main99332-11135iRT13#..3FC,3HC,4FC,5F197908-198112

main99332-51135iRT134197809-197908

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-01140iRT134197809-197908

L=1140

main99332-10890iRT135..CND198008-198112

L=890

main99332-11110iRT135..USA198008-198112

L=1140

8 parts on this diagram · 3 diagrams in section
