METER

0001 1 0003 1 0004 1

3304SPEEDOMETER DRIVEN GEAR (MTM)

→ Go to FIG 33-04

3505SPEEDOMETER DRIVEN GEAR (ATM)

→ Go to FIG 35-05

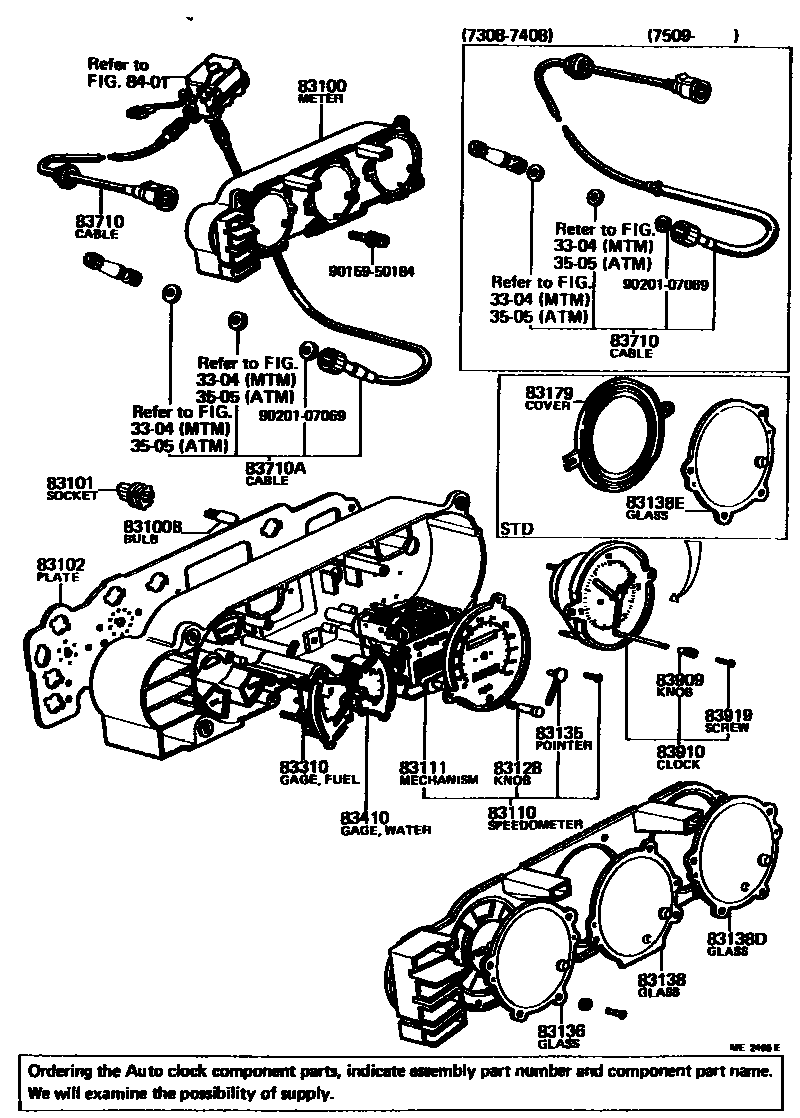

83100METER ASSY, COMBINATION

main83100-20330iRT118..4F;RT104..3FC..STD197308-197408

L/TACHOMETER

main83100-20340iRT118..4F;RT104..3FC..STD197308-197408

W/TACHOMETER

main83100-20400iRT118..4F;RT104..3FC..STD197308-197408

main83100-20420iRT105..3FC..4D197408-197509

main83100-20421iRT119..3HC;RT105..3FC..4D197509-197608

main83100-20422iRT119..3HC197608-197701

main83100-20423iRT119..3HC197701-197708

main83100-20424iRT119..3HC197708-197808

MILE & KM,USA SPEC.

main83100-20430iRT105..3FC..4D197408-197509

L/TACHOMETER

main83100-20431iRT119..3HC;RT105..3FC..4D197509-197608

L/TACHOMETER

main83100-20432iRT119..3HC197608-197701

L/TACHOMETER

main83100-20433iRT119..3HC197701-197708

main83100-20434iRT119..3HC197708-197808

MILE & KM,USA SPEC.

main83100-20440iRT105..3FC..4D197408-197509

W/TACHOMETER

main83100-20441iRT119..3HC;RT105..3FC..4D197509-197608

W/TACHOMETER

main83100-20442iRT119..3HC197608-197701

W/TACHOMETER

main83100-20740iRT119..3HC197708-197808

KM & MILE,CANADA SPEC.

main83100-20750iRT119..3HC197708-197808

KM & MILE,CANADA SPEC.

83100BBULB, COMBINATION METER, NO.1

main99132-12034×13iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

12V 3.4W,12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12020iRT119..3HC;RT105..3FC..4D197602-197701

EXHAUST LAMP

main83101-20040×13iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-20140iRT118..4F;RT104..3FC..STD197308-197408

W/TACHOMETER

main83102-20150iRT118..4F;RT104..3FC..STD197308-197408

L/TACHOMETER

main83102-20210iRT105..3FC..4D197408-197509

L/TACHOMETER

main83102-20211iRT119..3HC;RT105..3FC..4D197509-197608

L/TACHOMETER

main83102-20220iRT105..3FC..4D197408-197509

W/TACHOMETER

main83102-20221iRT119..3HC;RT105..3FC..4D197509-197701

W/TACHOMETER

main83247-20070iRT119..3HC197701-197808

83110SPEEDOMETER ASSY

main83110-20250iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main83110-20251iRT119..3HC;RT105..3FC..4D197509-197701

main83110-20252iRT119..3HC197701-197708

main83110-20350iRT119..3HC197708-197808

KM & MILE,CANADA SPEC.

83111MECHANISM, SPEEDOMETER

main83112-20250iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main83112-20252iRT119..3HC197701-197808

83128KNOB, TRIP COUNTER

main83128-20190iRT118..4F;RT104..3FC..STD197308-197405

83135POINTER, SPEEDOMETER

main83135-20230iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

83136GLASS, GAGE METER

main83134-20170iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

L/HOLE,BIG

main83137-20340iRT119..3HC;RT105..3FC..4D197509-197701

SMALL

83138GLASS, SPEEDOMETER

main83138-20190iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

83138DGLASS, CLOCK

main83137-20170iRT119..3HC197701-197808

main83137-20340iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

83138EGLASS, METER COVER

main83137-20170iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

83179COVER, COMBINATION METER, HOLE

main83179-20020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

83310GAGE ASSY, FUEL RECEIVER

main83243-20020iRT119..3HC197701-197808

main83310-20070iRT119..3HC197608-197701

L/TACHOMETER

main83310-20090iRT119..3HC;RT105..3FC..4D197509-197701

W/TACHOMETER

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-20010iRT119..3HC197701-197808

main83410-20070iRT118..4F;RT104..3FC..STD197308-197408

L/TACHOMETER

main83410-20071iRT119..3HC197608-197701

L/TACHOMETER

main83410-20090iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

W/TACHOMETER

main83410-20091iRT119..3HC197608-197701

W/TACHOMETER

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-20160iRT105..3FC..4D197408-197509

main83710-29345iRT118..4F;RT104..3FC..STD197308-197408

L=1700

main83710-29355iRT119..3HC;RT105..3FC..4D197509-197701

W/TACHOMETER

83710ACABLE ASSY, SPEEDOMETER DRIVE, NO.2

main89449-29015iRT105..3FC..4D197408-197509

EGR

83909KNOB, CLOCK

main83915-20010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

83910CLOCK ASSY

main83910-20121iRT119..3HC197701-197808

main83910-29025iRT119..3HC;RT105..3FC..4D197408-197608

L/TACHOMETER

main83910-29045iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

W/TACHOMETER

83919SCREW, CLOCK

main83916-20010iRT119..3HC197701-197808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950184

main90159-50184

9020107069

main90201-07069

25 parts on this diagram · 3 diagrams in section
