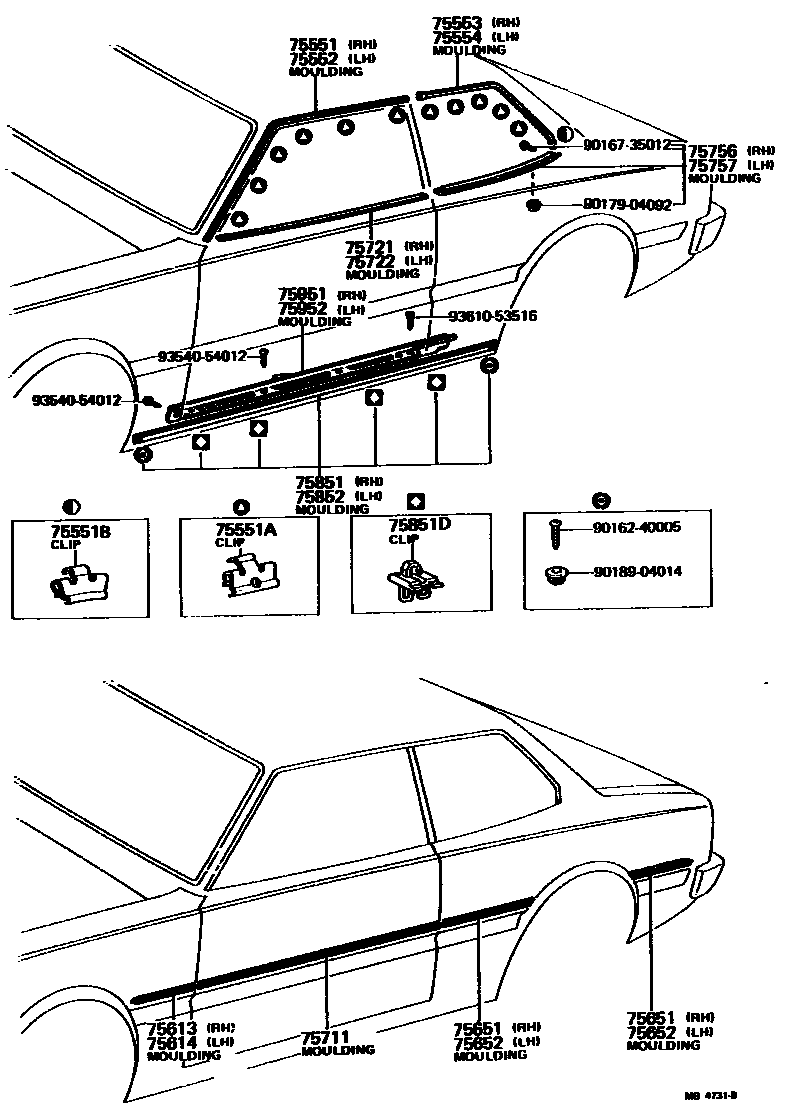

SIDE MOULDING

0001 1 0002 1 0003 1 0004 1

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-20100iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main75551-20130iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

75551ACLIP, ROOF DRIP MOULDING, NO.1

main75399-20040×20iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main75399-20050×12iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

75551BCLIP, ROOF DRIP MOULDING, NO.2

main75564-20020×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-20100iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main75552-20130iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

75553MOULDING, ROOF DRIP SIDE FINISH, RH

main75507-20080iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main75507-20100iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main75507-21010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main75555-29015iRT118..4F197308-197311

main75555-29016iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197311-197808

75554MOULDING, ROOF DRIP SIDE FINISH, LH

main75508-20080iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main75508-20100iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main75508-21010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main75556-29015iRT118..4F197308-197311

main75556-29016iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197311-197808

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75611-20010-01iRT119..3HC;RT105..3FC..4D197512-197808

BLACK,BLACK

main75611-20010-04iRT119..3HC;RT105..3FC..4D197408-197808

BLUE,BLUE

main75611-20010-06iRT119..3HC;RT105..3FC..4D197408-197808

BROWN,BROWN

main75611-20010-16iRT105..3FC..4D197408-197512

GOLD M.,BROWN

main75611-20030-01iRT119..3HC197701-197708

LUXURY EDITION,BLACK,BLACK

main75611-20030-04iRT119..3HC197701-197708

LUXURY EDITION,BLUE,BLUE

main75611-20030-06iRT119..3HC197708-197808

LUXURY EDITION,BROWN,BROWN

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75611-20010-01iRT119..3HC;RT105..3FC..4D197512-197808

BLACK,BLACK

main75611-20010-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main75611-20010-06iRT119..3HC;RT105..3FC..4D197408-197808

BROWN,BROWN

main75611-20010-16iRT105..3FC..4D197408-197512

GOLD M.,BROWN

main75612-20010-01iRT119..3HC197708-197808

LUXURY EDITION,BLACK,BLACK

main75612-20010-04iRT119..3HC197701-197708

LUXURY EDITION,BLUE,BLUE

main75612-20010-06iRT119..3HC197701-197708

LUXURY EDITION,BROWN,BROWN

75651MOULDING, QUARTER, OUTSIDE RH

main75651-20040-04iRT105..3FC..4D197408-197502

REAR,BLUE,BLUE

main75651-20040-06iRT105..3FC..4D197408-197502

REAR,BROWN,BROWN

main75651-20040-16iRT105..3FC..4D197408-197502

REAR,GOLD M.,BROWN

main75651-20050-01iRT119..3HC;RT105..3FC..4D197512-197808

REAR,BLACK,BLACK

main75651-20050-04iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

REAR,BLUE,BLUE

main75651-20050-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

REAR,BROWN,BROWN

main75651-20050-16iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197512

REAR,GOLD M.,BROWN

main75651-20060-01iRT119..3HC197701-197708

LUXURY EDITION,BLACK,BLACK

main75651-20060-04iRT119..3HC197708-197808

LUXURY EDITION,BLUE,BLUE

main75651-20060-06iRT119..3HC197708-197808

LUXURY EDITION,BROWN,BROWN

main75651-21030-01iRT119..3HC;RT105..3FC..4D197512-197808

BLACK,BLACK

main75651-21030-04iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

BLUE,BLUE

main75651-21030-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

BROWN,BROWN

main75651-21030-16iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197512

GOLD M.,BROWN

main75655-20010-01iRT119..3HC;RT105..3FC..4D197512-197808

BLACK,BLACK; FRONT,BLACK;BLACK,BLACK

main75655-20010-04iRT105..3FC..4D197408-197502

FRONT,BLUE,BLUE

main75655-20010-06×2iRT119..3HC;RT105..3FC..4D197502-197808

BROWN,BROWN; FRONT,BROWN;BROWN,BROWN

main75655-20010-16iRT105..3FC..4D197408-197502

FRONT,GOLD M.,BROWN

75652MOULDING, QUARTER, OUTSIDE LH

main75652-20030-04iRT118..4F;RT104..3FC..STD197308-197408

REAR,BLUE,BLUE

main75652-20030-06iRT118..4F;RT104..3FC..STD197308-197408

REAR,BROWN,BROWN

main75652-20030-16iRT118..4F;RT104..3FC..STD197308-197408

REAR,GOLD M.,BROWN

main75652-20040-01iRT119..3HC;RT105..3FC..4D197512-197808

REAR,BLACK,BLACK

main75652-20040-04iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

REAR,BLUE,BLUE

main75652-20040-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

REAR,BROWN,BROWN

main75652-20040-16iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197512

REAR,GOLD M.,BROWN

main75652-20050-01iRT119..3HC197708-197808

LUXURY EDITION,BLACK,BLACK

main75652-20050-04iRT119..3HC197701-197708

LUXURY EDITION,BLUE,BLUE

main75652-20050-06iRT119..3HC197701-197708

LUXURY EDITION,BROWN,BROWN

main75652-21030-01iRT119..3HC;RT105..3FC..4D197512-197808

BLACK,BLACK

main75652-21030-04iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

BLUE,BLUE

main75652-21030-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

BROWN,BROWN

main75652-21030-16iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197512

GOLD M.,BROWN

main75656-20010-01iRT119..3HC;RT105..3FC..4D197512-197808

BLACK,BLACK; FRONT,BLACK;BLACK,BLACK

main75656-20010-04iRT105..3FC..4D197408-197502

FRONT,BLUE,BLUE

main75656-20010-06iRT105..3FC..4D197408-197502

FRONT,BROWN,BROWN

main75656-20010-16×2iRT105..3FC..4D197502-197512

FRONT,GOLD M.;GOLD M.,BROWN; GOLD M.,BROWN

75711MOULDING, FRONT DOOR OUTSIDE, NO.1

main75711-20030-01×2iRT119..3HC;RT105..3FC..4D197512-197808

BLACK,BLACK

main75711-20030-04×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

BLUE,BLUE

main75711-20030-06×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

BROWN,BROWN

main75711-20030-16×2iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197512

GOLD M.,BROWN

main75711-20040-01×2iRT119..3HC;RT105..3FC..4D197512-197808

BLACK,BLACK

main75711-20040-04×2iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main75711-20040-06×2iRT119..3HC;RT105..3FC..4D197408-197808

BROWN,BROWN

main75711-20040-16×2iRT118..4F;RT104..3FC..STD197308-197408

GOLD M.,BROWN

main75731-20030-01iRT119..3HC197708-197808

RH.LUXURY EDITION,BLACK,BLACK

main75731-20030-04iRT119..3HC197701-197708

RH.LUXURY EDITION,BLUE,BLUE

main75731-20030-06iRT119..3HC197708-197808

RH.LUXURY EDITION,BROWN,BROWN

main75732-20030-01iRT119..3HC197701-197708

LH.LUXURY EDITION,BLACK,BLACK

main75732-20030-04iRT119..3HC197708-197808

LH.LUXURY EDITION,BLUE,BLUE

main75732-20030-06iRT119..3HC197708-197808

LH.LUXURY EDITION,BROWN,BROWN

75721MOULDING, FRONT DOOR BELT, RH

main75710-20080iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main75710-20081iRT119..3HC197701-197808

main75710-20100iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197608

main75710-29015iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

75722MOULDING, FRONT DOOR BELT, LH

main75720-20080iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main75720-20081iRT119..3HC197701-197808

main75720-20100iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197608

main75720-29015iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

75756MOULDING, QUARTER BELT, RH

main75605-29015iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main75708-29015iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197608

main75740-29015iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

75757MOULDING, QUARTER BELT, LH

main75606-29015iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main75709-29015iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197608

main75750-29015iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

75851MOULDING, ROCKER PANEL, RH

main75850-29045iRT118..4F;RT104..3FC..STD197308-197406

main75850-29046iRT118..4F;RT104..3FC..STD197406-197408

main75850-29047iRT119..3HC197701-197808

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75859-20010×8iRT118..4F;RT104..3FC..STD197308-197408

main75859-20011iRT119..3HC197701-197808

75852MOULDING, ROCKER PANEL, LH

main75860-29045iRT118..4F;RT104..3FC..STD197308-197406

main75860-29046iRT118..4F;RT104..3FC..STD197406-197408

main75860-29047iRT119..3HC197701-197808

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-20050iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main67913-20060iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main67913-20070iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main67913-20080-01iRT119..3HC;RT105..3FC..4D197509-197808

BLACK,BLACK

main67913-20080-03iRT119..3HC197701-197808

GRAY,GRAY

main67913-20080-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main67913-20080-06iRT119..3HC;RT105..3FC..4D197509-197701

BROWN,BROWN

main67913-20080-15iRT119..3HC197701-197808

BEIGE,BEIGE

main67913-20090-01iRT119..3HC;RT105..3FC..4D197509-197808

BLACK,FOR CARPET,BLACK

main67913-20090-05iRT119..3HC;RT105..3FC..4D197509-197701

FOR CARPET,BEIGE,BEIGE

main67913-20090-06iRT119..3HC;RT105..3FC..4D197509-197701

FOR CARPET,BROWN,BROWN

main67913-20090-15iRT119..3HC197701-197808

FOR CARPET,BEIGE,BEIGE

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67914-20050iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main67914-20060iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main67914-20070iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main67914-20080-01iRT119..3HC;RT105..3FC..4D197509-197808

BLACK,BLACK

main67914-20080-03iRT119..3HC197701-197808

GRAY,GRAY

main67914-20080-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main67914-20080-06iRT119..3HC;RT105..3FC..4D197509-197701

BROWN,BROWN

main67914-20080-15iRT119..3HC197701-197808

BEIGE,BEIGE

main67914-20090-01iRT119..3HC;RT105..3FC..4D197509-197808

FOR CARPET,BLACK,BLACK

main67914-20090-05iRT119..3HC;RT105..3FC..4D197509-197701

FOR CARPET,BEIGE,BEIGE

main67914-20090-06iRT119..3HC;RT105..3FC..4D197509-197701

FOR CARPET,BROWN,BROWN

main67914-20090-15iRT119..3HC197701-197808

FOR CARPET,BEIGE,BEIGE

9016240005

main90162-40005

9016735012

main90167-35012

9017904092

main90179-04092

9018904014

main90189-04014

9354054012

main93540-54012

9361053516

main93610-53516

26 parts on this diagram · 4 diagrams in section
