BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

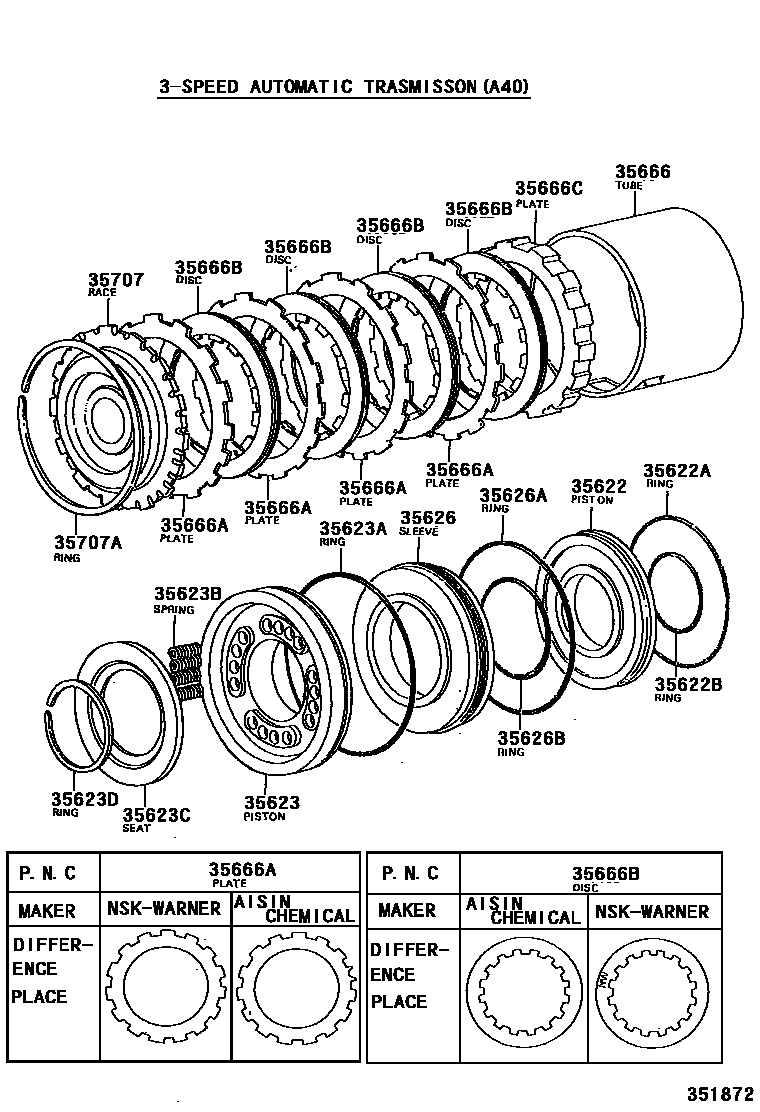

Parts diagram

35622PISTON, BRAKE, NO.2

main35622-22010i197308-197808

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193i197308-197808

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188i197308-197808

35623PISTON, BRAKE, NO.3

main35623-22010i197308-197808

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99192i197308-197808

35623BSPRING (FOR BRAKE PISTON RETURN)

main90501-10671×16i197308-197808

WD=1.0,CW=6.0

35623CSEAT, BRAKE RETURN SPRING

main35627-22010i197308-197808

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262i197308-197808

35626SLEEVE, BRAKE REACTION

main35626-22010i197308-197808

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200i197308-197808

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191i197308-197808

35666TUBE, BRAKE APPLY

main35666-22010i197308-197808

35666APLATE, CLUTCH (FOR BRAKE)

main35634-22020×4i197308-197408

main35634-22050×4i197408-197808

NSK-WARNER

main35634-22080×4i197408-197602

AISIN CHEMICAL

35666BDISC, CLUTCH (FOR BRAKE)

main35633-22020×4i197308-197408

main35633-22030×4i197408-197808

NSK-WARNER

main35633-22040×3i197408-197602

AISIN CHEMICAL

35666CPLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010i197308-197808

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-22010i197308-197808

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140i197308-197808

17 parts on this diagram · 1 diagram in section
