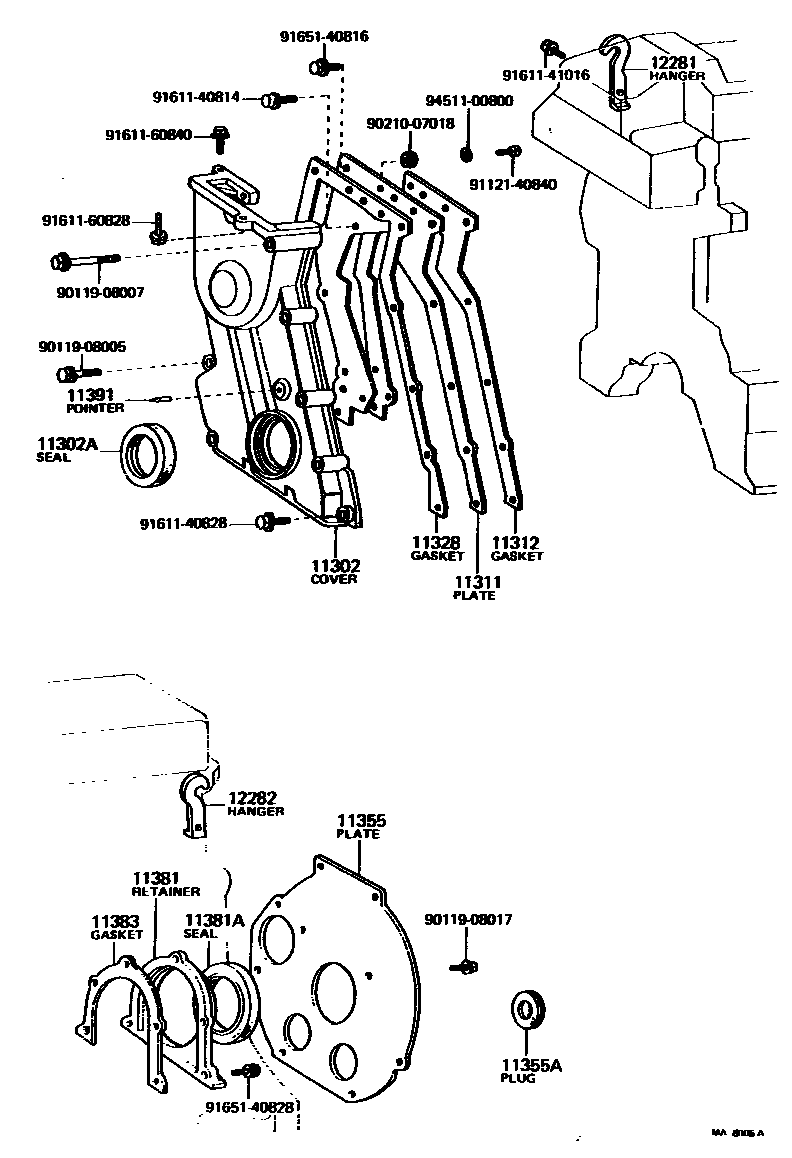

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
main90311-45069i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197802
TC3 45 68 12
11311PLATE, FRONT END
11312GASKET, FRONT END PLATE
11328GASKET, TIMING GEAR OR CHAIN COVER
11355PLATE, REAR END
11355APLUG, HOLE(FOR REAR END PLATE)
main90950-01128×2i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
11381RETAINER, ENGINE REAR OIL SEAL
main11381-33010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197711
11381ASEAL, ENGINE REAR OIL
HTC 80 100 12
main90311-80068i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197711
TC 80 100 12
11383GASKET, ENGINE REAR OIL SEAL RETAINER
main11383-33010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
11391POINTER, TIMING
12281HANGER, ENGINE, NO.1
W/COOLER
12282HANGER, ENGINE, NO.2
9011908005
main90119-08005
9011908007
main90119-08007
9011908017
main90119-08017
9021007018
main90210-07018
9112140840
main91121-40840
9161140814
main91611-40814
9161140828
main91611-40828
9161141016
main91611-41016
9161160828
main91611-60828
9161160840
main91611-60840
9165140816
main91651-40816
9165140828
main91651-40828
9451100800
main94511-00800
26 parts on this diagram · 4 diagrams in section
