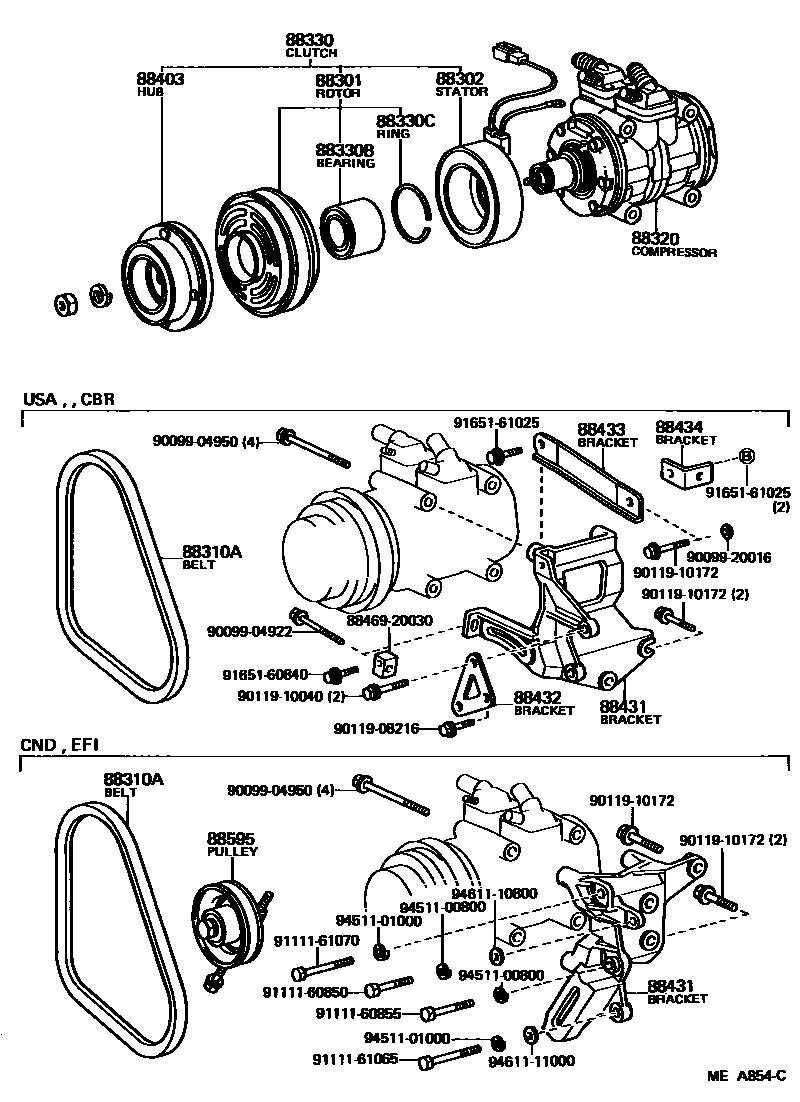

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14010iMA61198108-198512

main88412-14020iRA6#..USA198308-198507

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iMA61,RA6#198108-198308

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-10890iRA6#..EFI; RA64..CBR..CND198108-198308

L=890

main99332-10980iMA61198108-198512

main99332-11120iRA64..CBR..USA198108-198308

88320COMPRESSOR ASSY, COOLER

main88320-14320iRA65;RA64..CND;RA64..EFI..USA198108-198308

10P15C

main88320-14340iMA61198108-198512

10P15C

main88320-14350iRA64..CBR..USA198108-198308

10P15C

88330CLUTCH ASSY, MAGNET

main88410-14090iMA61198108-198512

main88410-14100iRA6#..USA198308-198507

88330BBEARING, MAGNET CLUTCH

main90099-10133iMA61,RA6#198108-198308

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iMA61,RA6#198108-198308

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iMA61,RA6#198108-198308

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-14130iRA64..CBR..USA198108-198308

main88431-14171iRA6#..EFI198208-198308

main88431-24020iMA61198108-198512

main88431-26150iRA64..CND198108-198208

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main11324-38011iRA64..CBR..USA198108-198308

88433BRACKET, COMPRESSOR MOUNTING, NO.3

main88434-20150iRA64..CBR..USA198108-198308

88434BRACKET, COMPRESSOR MOUNTING, NO.4

main88434-14030iRA64..CBR..USA198108-198308

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-16010iRA64..CND198108-198208

main88440-22050iRA6#..EFI198208-198308

main88440-25010iMA61198208-198512

main88440-30250iMA61198108-198208

8846920030SWITCH, PRESSURE CONTROL

main88469-20030

9009904922

main90099-04922

9009904950

main90099-04950

9009920016

main90099-20016

9011908216

main90119-08216

9011910040

main90119-10040

9011910172

main90119-10172

9111160850

main91111-60850

9111160855

main91111-60855

9111161065

main91111-61065

9111161070

main91111-61070

9165160840

main91651-60840

9165161025

main91651-61025

9451100800

main94511-00800

9451101000

main94511-01000

9461110800

main94611-10800

9461111000

main94611-11000

30 parts on this diagram · 3 diagrams in section
