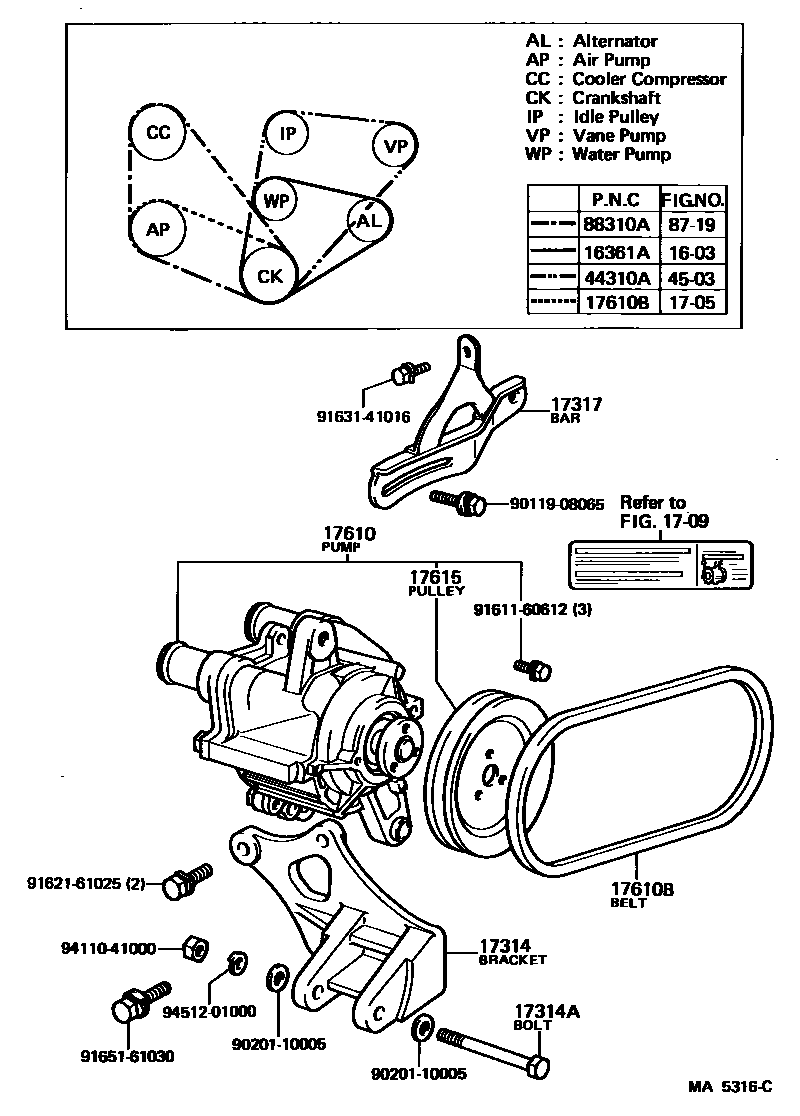

AIR PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02085i5MGE..MA61198108-198308

main99331-10870i22REC..RA6#198408-198507

main99331-10880i22R#..RA6#198108-198408

L=880

main99367-00920i5MGE..MA61198308-198512

1705AIR PUMP

→ Go to FIG 17-05

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

17314BRACKET, AIR PUMP

main17314-35010i22R..RA64..USA198108-198308

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90101-10463i22R..RA64..USA198108-198308

17317BAR, AIR PUMP ADJUSTING, NO.1

main17317-38020i22R..RA64..USA198108-198308

17610PUMP ASSY, AIR

main17610-35010i22R..RA64..USA198108-198308

17610BBELT, V(FOR AIR PUMP)

main99332-10820i22R..RA64..USA198108-198308

L=820

17615PULLEY(FOR AIR PUMP)

main17615-35010i22R..RA64..USA198108-198308

44310ABELT, V(FOR VANE PUMP)

main90916-02104iMA61198108-198512

main99332-11120iRA6#198408-198507

main99332-11135iRA6#198108-198408

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-10890iRA6#..EFI; RA64..CBR..CND198108-198308

L=890

main99332-10980iMA61198108-198512

main99332-11120iRA64..CBR..USA198108-198308

9011908065

main90119-08065

9020110005

main90201-10005

9161160612

main91611-60612

9162161025

main91621-61025

9163141016

main91631-41016

9165161030

main91651-61030

9411041000

main94110-41000

9451201000

main94512-01000

22 parts on this diagram · 1 diagram in section
