47749FCLIP, PIN HOLD

main47749-30030×2i201810-201902

main47749-50090×2i201409-201810

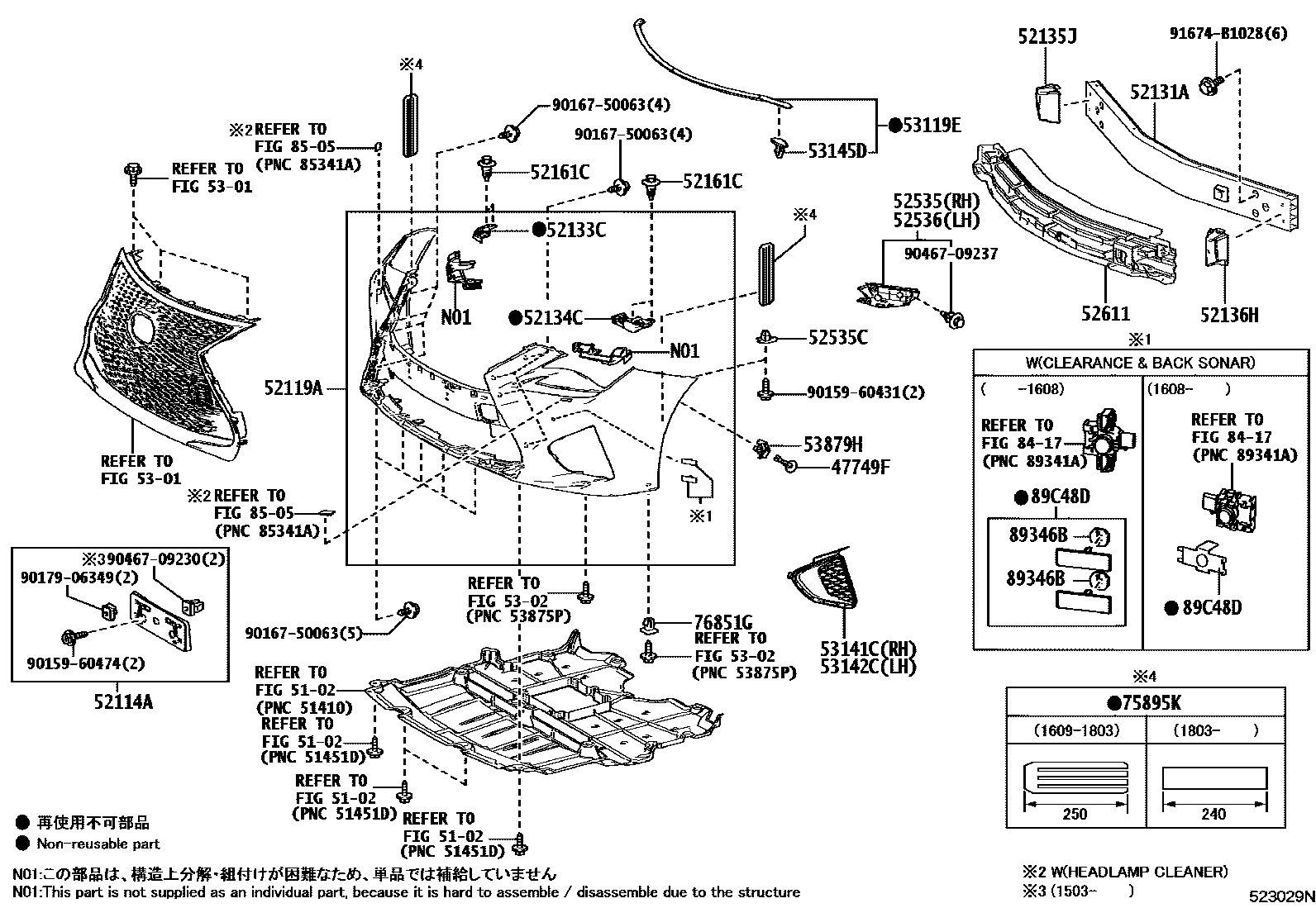

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-24160supersedes 52114-24350i201409-201411

KOREA SPEC

main52114-24161supersedes 52114-24350i201412-201902

KOREA SPEC

main52114-24350i201903-202111

KOREA SPEC

52119ACOVER, FRONT BUMPER

main52119-24945supersedes 52119-2U922i201409-201503

PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED)&CLEARANCE & BACK SONAR-WITH

main52119-24948supersedes 52119-2U922i201409-201503

PAINT REQ.,HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)&CLEARANCE & BACKSONAR-WITH; PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED)&HEADLAMP CLEANER-WITH(SYNCHRONIZATIONTO FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

main52119-24958supersedes 52119-2U922i201409-201503

PAINT REQ.,HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER); PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER); PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED)&HEADLAMP CLEANER-WITH(SYNCHRONIZATIONTO FIRST WIPER)

main52119-24970i201503-201609

PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED)&CLEARANCE & BACK SONAR-WITH

main52119-24972supersedes 52119-2U922i201503-201902

PAINT REQ.,HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER); PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)

main52119-24974i201503-201609

PAINT REQ.,HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)&CLEARANCE & BACKSONAR-WITH; PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED)&HEADLAMP CLEANER-WITH(SYNCHRONIZATIONTO FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

main52119-24975i201609-201902

PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH

main52119-24976i201609-201711

PAINT REQ.,HEADLAMP-LED(TRINOCULAR FULL LED)&HEADLAMP CLEANER-WITH(SYNCHRONIZATIONTO FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

main52119-24980i201609-201902

PAINT REQ.,KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)&HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

main52119-2U922i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

main52119-2U924supersedes 52119-2U922i201903

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52119-2U926supersedes 52119-2U922i201903-202501

FRONT SPOILER-CARBON & WITH(AIR DAM)&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRSTWIPER)

main52119-2U928supersedes 52119-2U922i201903-202501

FRONT SPOILER-CARBON & WITH(AIR DAM)&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRSTWIPER)&CLEARANCE & BACK SONAR-WITH

main52119-2U932supersedes 52119-2U922i201903-202301

KOREA SPEC&FRONT SPOILER-CARBON & WITH(AIR DAM)&HEADLAMP CLEANER-WITH(SYNCHRONIZEWITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

52131AREINFORCEMENT, FRONT BUMPER

main52131-24110i201409-201902

CANADA SPEC; KOREA SPEC

52133CREINFORCEMENT, FRONT BUMPER BAR, RH

main52133-24050supersedes 52133-24070i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

52134CREINFORCEMENT, FRONT BUMPER BAR, LH

main52134-24080i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

52135JREINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, RH

main52135-24060i201409-201502

main52135-24061i201503-201902

main52135-24070i201903

52136HREINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, LH

main52136-24050i201409-201502

main52136-24051i201503-201902

main52136-24060i201903

52161CPIECE, FRONT BUMPER

main52161-16010×2i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-24080i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060×2i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-24080i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

52611ABSORBER, FRONT BUMPER ENERGY

main52611-24110i201409-201902

main52611-24130i201903

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53119EPROTECTOR, RADIATOR GRILLE

main53119-24060i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

53141CGARNISH, RADIATOR GRILLE

main53141-24080i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

53142CGARNISH, RADIATOR GRILLE, NO.2

main53142-24060i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

53145DCLIP, RADIATOR GRILLE

main53145-60030×12i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

53879HRETAINER, FRONT FENDER LINER

main53879-30050×2i201409-201810

main53879-30060×2i201810-201902

main53879-11010×2i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

75895KTAPE, MOULDING, NO.1

main75895-28010×2i201609-201803

main75895-53010×2i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

76851GGROMMET, SCREW, NO.1

main90189-06237×2i201903-202404

FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&CLEARANCE & BACK SONAR-WITH; FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER); FRONT SPOILER-CARBON & WITH(AIR DAM), FOR DOP&HEADLAMP CLEANER-WITH(SYNCHRONIZE WITH FIRST WIPER)&CLEARANCE & BACK SONAR-WITH

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

8505HEADLAMP CLEANER

→ Go to FIG 85-05

89346BADJUSTER, ULTRASONIC SENSOR

main89346-33010×4i201409-201609

CLEARANCE & BACK SONAR-WITH

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

main89348-33120×2i201409-201609

CLEARANCE & BACK SONAR-WITH

main89348-78020×2i201609-201902

CLEARANCE & BACK SONAR-WITH
