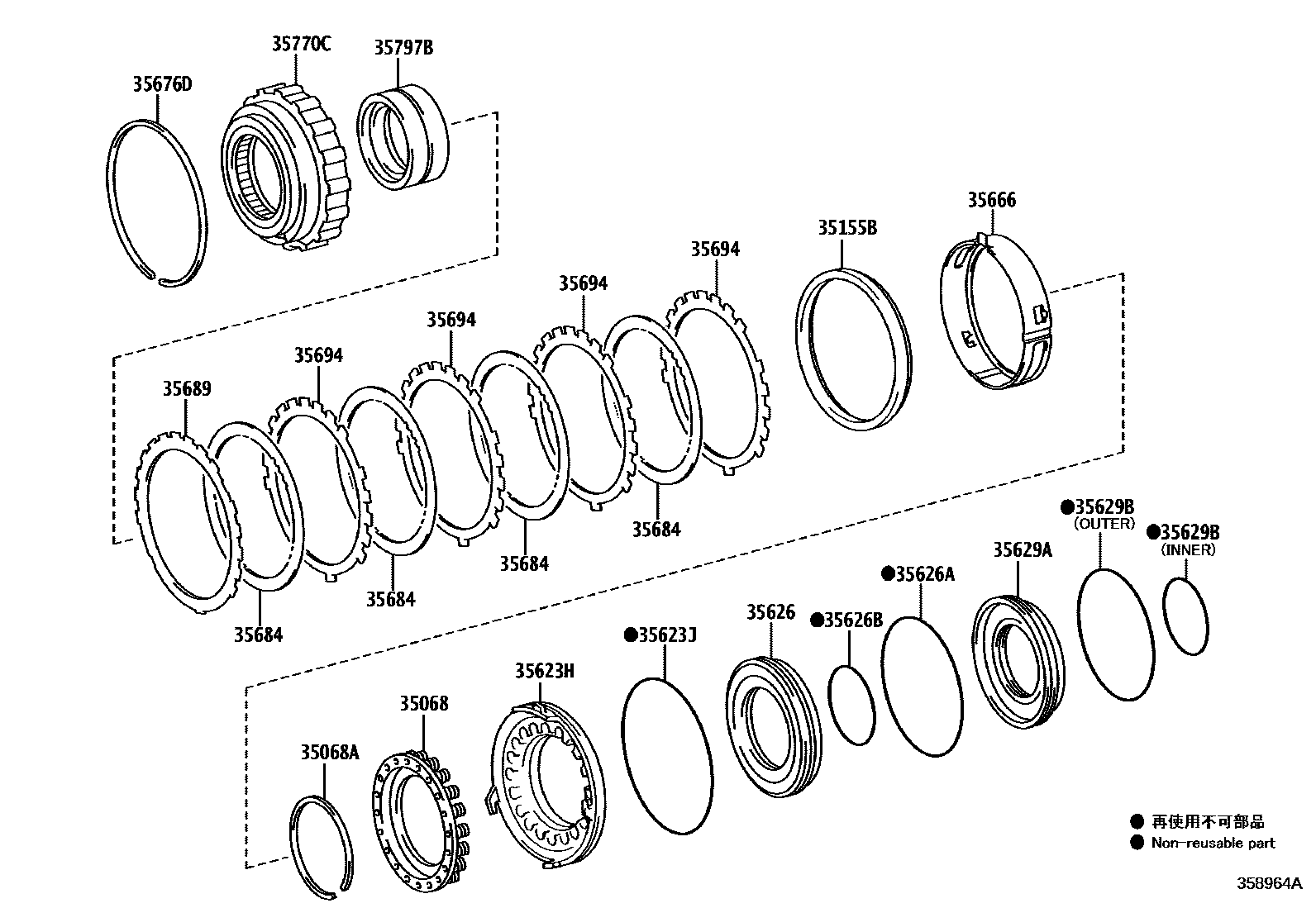

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-60010iGSC15201409-201510

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iGSC15201409-201510

35155BSLEEVE, REAR COVER

main35155-50010iGSC15201409-201510

35623HPISTON, 1ST & REVERSE BRAKE

main35623-50030iGSC15201409-201510

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGSC15201409-201510

35626SLEEVE, BRAKE REACTION

main35626-50010iGSC15201409-201510

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99144iGSC15201409-201510

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003iGSC15201409-201510

35629APISTON, BRAKE, NO.4

main35629-50020iGSC15,16201810

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iGSC15,16201810

INNER

main90301-99084iGSC15,16201810

OUTER

35666TUBE, BRAKE APPLY

main35666-50010iGSC15201409-201510

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99131iGSC15201409-201510

35684DISC, BRAKE, NO.4

main35684-60030×4iGSC15201409-201510

35689FLANGE, BRAKE, NO.4

main35689-60270iGSC15201409-201510

T=1.8,MARK 0

main35689-60280iGSC15,16201510-201810

T=1.97,MARK 1

main35689-60290iGSC15201409-201510

T=2.11,MARK 3

main35689-60300iGSC15201409-201510

T=2.25,MARK 4

main35689-60310iGSC15,16201510-201810

T=2.39,MARK 5

main35689-60320iGSC15,16201810

T=2.53,MARK 7

main35689-60330iGSC15201409-201510

T=2.67,MARK 8

main35689-60340iGSC15,16201810

T=2.81,MARK10

main35689-60350iGSC15,16201810

T=2.95,MARK 11

main35689-60360iGSC15201409-201510

T=3.09,MARK 12

main35689-60370iGSC15,16201510-201810

T=3.23,MARK 14

35694PLATE, BRAKE, NO.4

main35694-60011×4iGSC15201409-201510

35770CCLUTCH ASSY, 1WAY NO.3

main35770-60030iGSC15201409-201510

35797BRACE, 1 WAY CLUTCH, INNER

main35797-50031iGSC15201409-201510

17 parts on this diagram · 1 diagram in section
