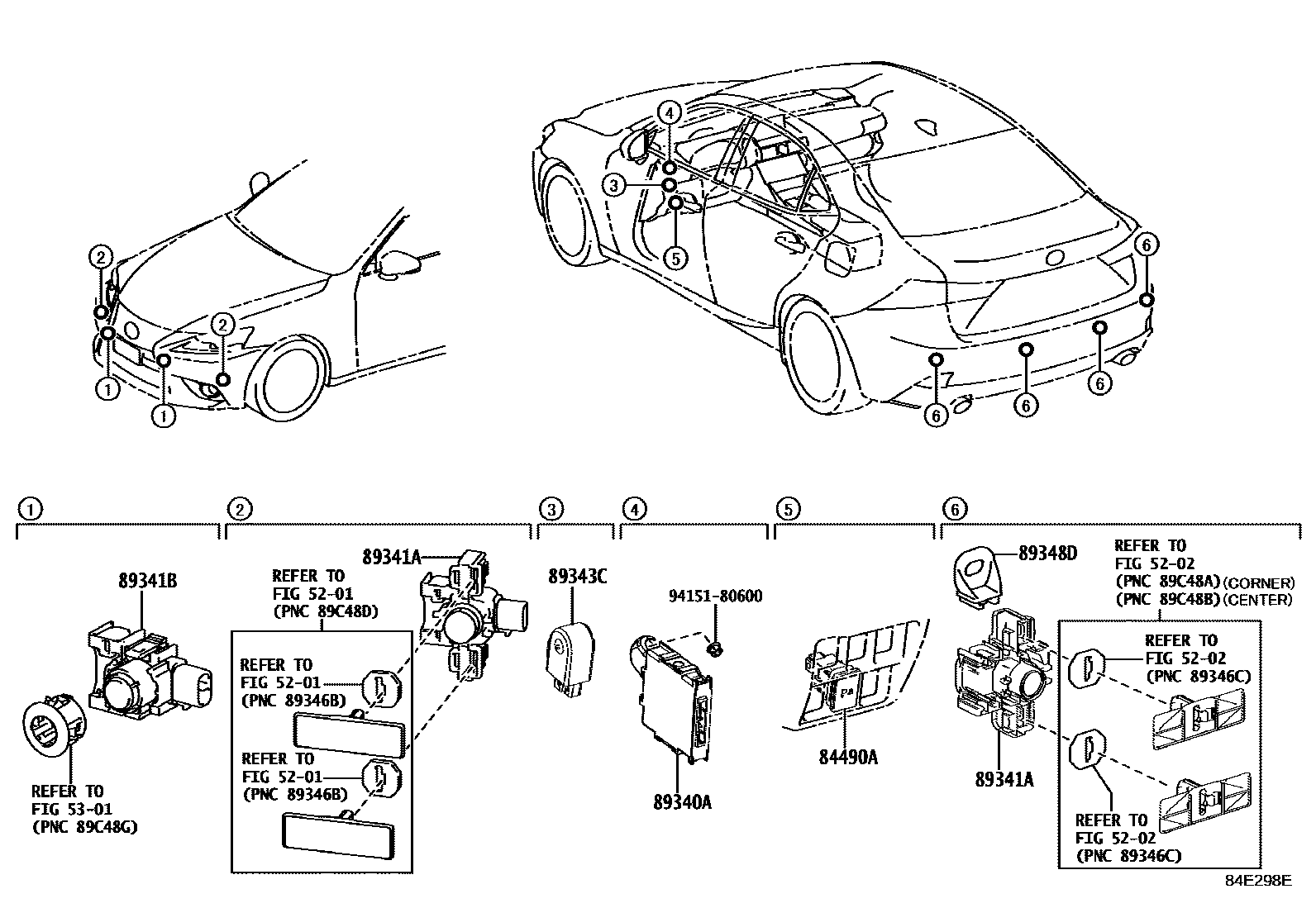

CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

5301RADIATOR GRILLE

→ Go to FIG 53-01

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341ASENSOR, ULTRASONIC, NO.1

89341BSENSOR, ULTRASONIC, NO.2

89343CBUZZER, CLEARANCE WARNING, NO.1

89348DCLIP, ULTRASONIC SENSOR

9415180600

main94151-80600

10 parts on this diagram · 3 diagrams in section
