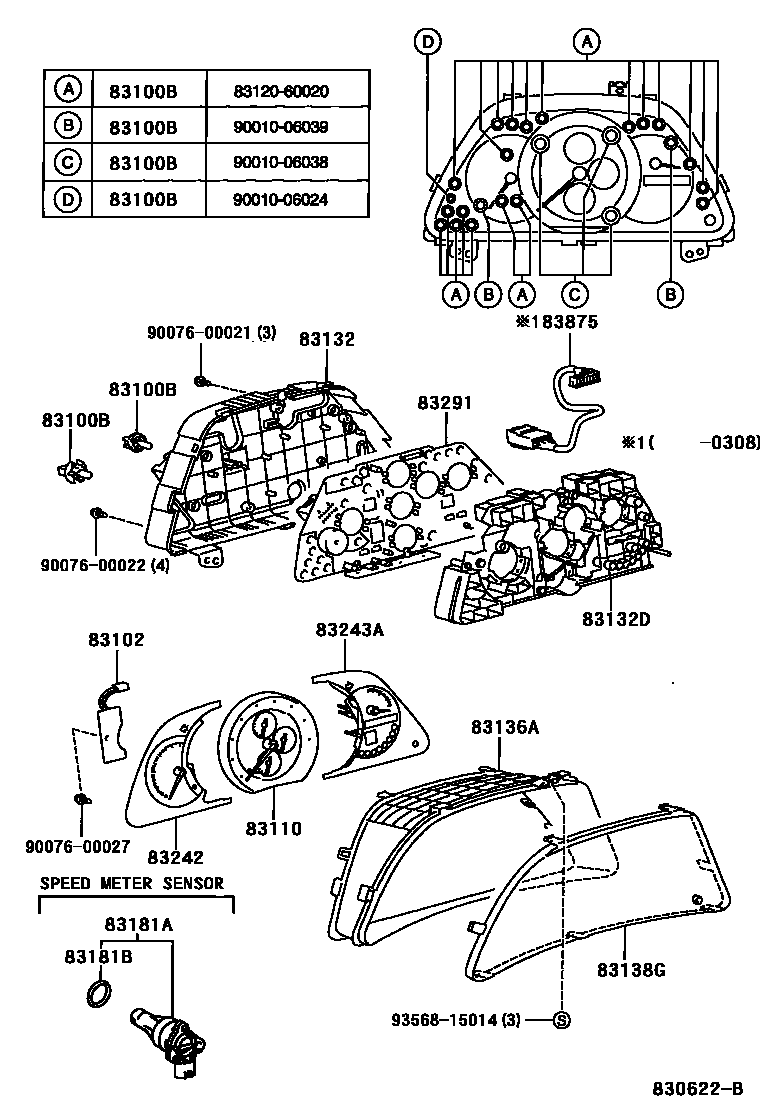

METER

83100BBULB, COMBINATION METER, NO.1

main83120-60020×20iJCE10..ATM; JCE10..MTM200308-200507

12V 1.4W,W(SOCKET)

main90010-06024iJCE10200005-200107

14V 1.12W,TYPE D:REFER TO ILLUSTRATION

main90010-06038×3iJCE10200005-200107

14V3.8W,W/ORANGE CAP,TYPE C:REFER TO ILLUSTRATION

main90010-06039×2iJCE10200308-200507

14V 3W,W(ORANGE CAP)

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83861-53220iJCE10..ATM200107-200507

83110SPEEDOMETER ASSY

main83220-53120iJCE10200005-200107

main83220-53130iJCE10200005-200107

CANADA SPEC

main83220-53240iJCE10200107-200308

main83220-53241iJCE10200308-200507

main83220-53250iJCE10200107-200308

CANADA SPEC

main83220-53251iJCE10200308-200507

CANADA SPEC

83132CASE, COMBINATION METER

main83841-53010iJCE10..SED..ATM200005-200308

83132DCASE, COMBINATION METER, NO.2

main83841-53220iJCE10..SED..ATM200005-200308

main83841-53260iJCE10..MTM200308-200507

83136ACOVER, COMBINATION METER

main83821-53010iJCE10..SED..ATM200005-200308

83138GGLASS, COMBINATION METER

main83852-53010iJCE10200107-200507

83181ASENSOR, SPEEDOMETER

main83181-24070iJCE10..MTM200107

83181BRING, O (FOR SPEEDOMETER SENSOR)

main96711-24030iJCE10..MTM200107

83242TACHOMETER ASSY, ENGINE

main83881-53220iJCE10200005-200107

main83881-53230iJCE10200005-200107

CANADA SPEC

main83881-53430iJCE10..ATM200107-200308

main83881-53431iJCE10..ATM200308-200507

main83881-53440iJCE10..ATM200107-200308

CANADA SPEC

main83881-53441iJCE10..ATM200308-200507

CANADA SPEC

main83881-53450iJCE10..MTM200107-200308

main83881-53451iJCE10..MTM200308-200507

main83881-53460iJCE10..MTM200107-200308

CANADA SPEC

main83881-53461iJCE10..MTM200308-200507

CANADA SPEC

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-53220iJCE10200005-200107

main83882-53230iJCE10200005-200107

CANADA SPEC

main83882-53340iJCE10..MTM200107-200308

CANADA SPEC

main83882-53341iJCE10..MTM200308-200507

CANADA SPEC

main83882-53400iJCE10..ATM200107-200308

CANADA SPEC

main83882-53401iJCE10..ATM200308-200507

CANADA SPEC

main83882-53430iJCE10..ATM200107-200308

main83882-53431iJCE10..ATM200308-200507

main83882-53450iJCE10..MTM200107-200308

main83882-53451iJCE10..MTM200308-200507

83291COMPUTER, COMBINATION METER

main83291-53150iJCE10200005-200107

main83291-53160iJCE10200005-200107

CANADA SPEC

main83291-53360iJCE10..ATM200107-200308

main83291-53361iJCE10..ATM200308

main83291-53370iJCE10..ATM200107-200308

CANADA SPEC

main83291-53371iJCE10..ATM200308

CANADA SPEC

main83291-53380iJCE10..MTM200107-200308

main83291-53381iJCE10..MTM200308

main83291-53390iJCE10..MTM200107-200308

CANADA SPEC

main83291-53391iJCE10..MTM200308

CANADA SPEC

83875WIRE, COMBINATION METER, NO.1

main83875-53060iJCE10..SED..ATM200005-200308

main83875-53340iJCE10200107-200308

9007600021

main90076-00021

9007600022

main90076-00022

9007600027

main90076-00027

9356815014

main93568-15014

17 parts on this diagram · 1 diagram in section
