STANDARD TOOL

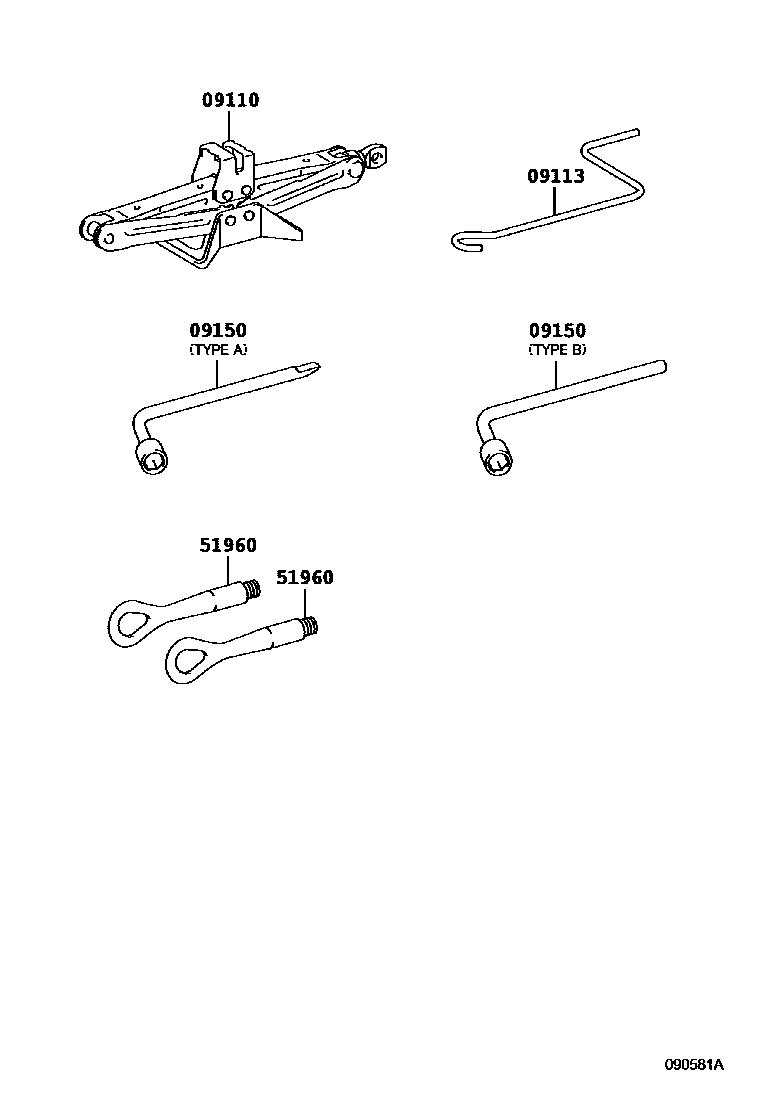

Parts diagram

09110JACK ASSY

main09111-33030i201012-201312

main09111-76010i201601-202108

09113HANDLE, JACK

main09113-52030i201012-201111

main09113-52031i201112-201312

09150WRENCH, HUB NUT BOX

main09150-35070i201012-201208

TYPE A:REFER ILLUST.

main09150-48010i201012-201208

TYPE B:REFER ILLUST.

main09150-76010i201208-201312

TYPE A:REFER ILLUST.

main09150-76020i201208-201312

TYPE B:REFER ILLUST.

51960HOOK ASSY, FRONT

main51961-50040×2i201012-201205

main51961-50042×2i201205-201312

4 parts on this diagram · 1 diagram in section
