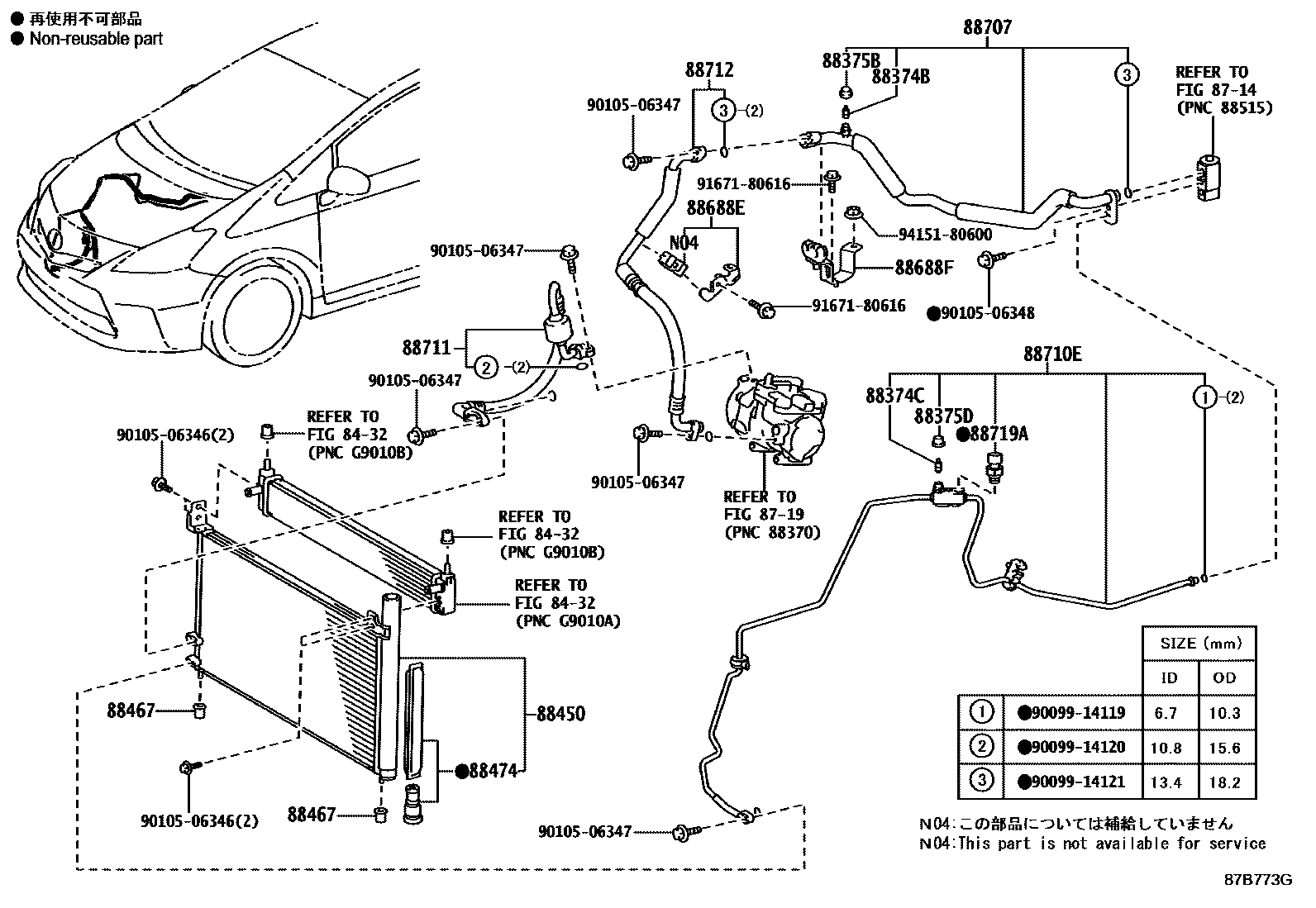

HEATING & AIR CONDITIONING - COOLER PIPING

8432INVERTER COOLING

→ Go to FIG 84-32

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iZVW41201109-201811

88374CVALVE, SERVICE, NO.2

main88374-30010iZVW41201109-201811

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZVW41201109-201811

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iZVW41201109-201811

88450CONDENSER ASSY, W/RECEIVER

main88460-47170iZVW41201109-201811

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iZVW41201109-201811

88474DRYER, COOLER

main88474-47030iZVW41201109-201811

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-47150iZVW41201109-201811

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-1E381iZVW41201109-201811

88707PIPE SUB-ASSY, SUCTION

main88707-47060iZVW41201109-201811

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-47110iZVW41201109-201811

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-47040iZVW41201109-201811

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-47050iZVW41201109-201111

main88712-47051iZVW41201112-201411

main88712-47052iZVW41201411-201811

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZVW41201109-201811

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506346

main90105-06346

9010506347

main90105-06347

9010506348

main90105-06348

9167180616

main91671-80616

9415180600

main94151-80600

25 parts on this diagram · 1 diagram in section
