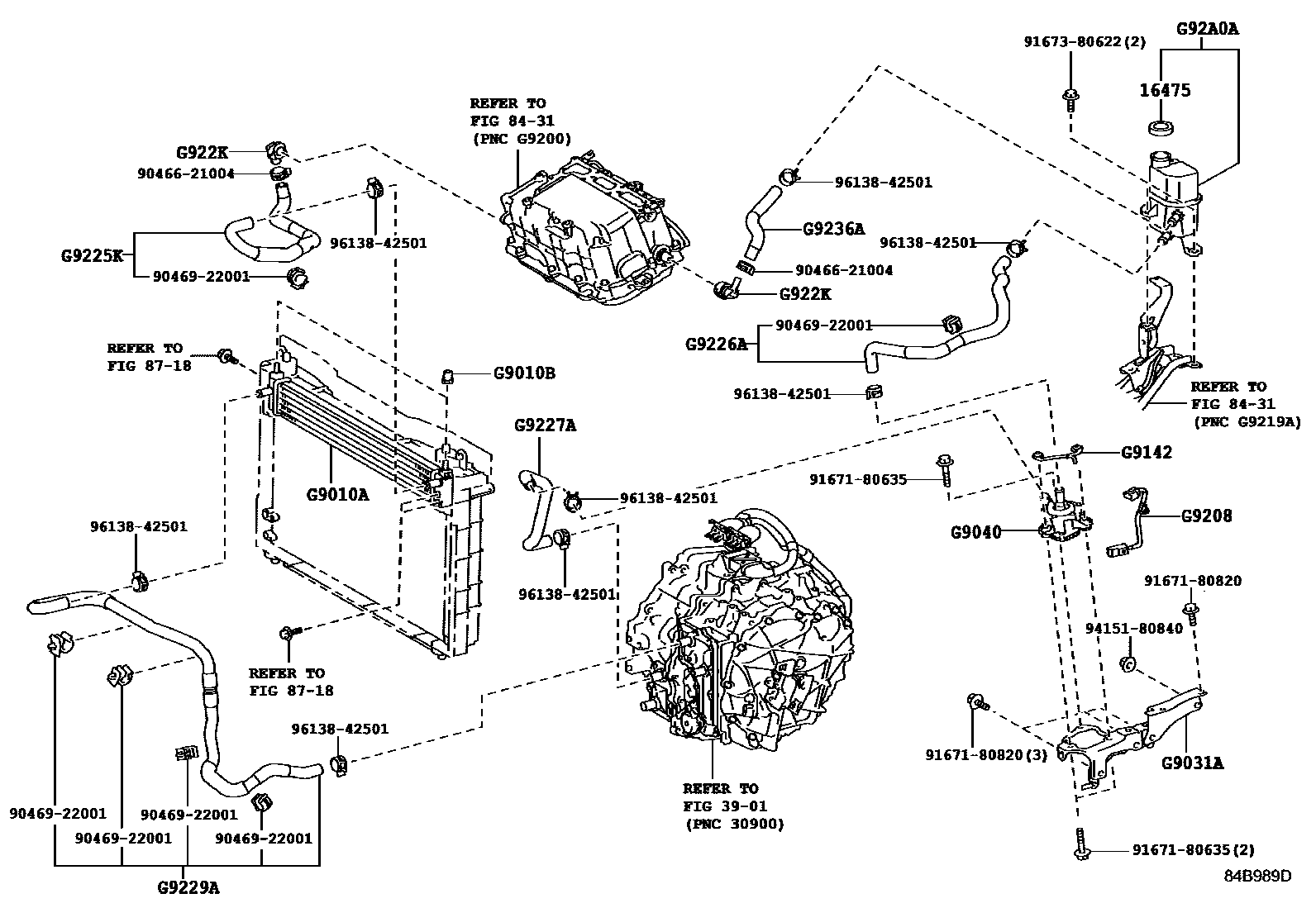

INVERTER COOLING

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZVW41201605-201811

main16475-37010i2ZRFXE..ZVW41201109-201409

main16475-37011i2ZRFXE..ZVW41201410-201604

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8431HEV INVERTER

→ Go to FIG 84-31

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

G9010ARADIATOR ASSY

mainG901047050iZVW41201109-201811

G9010BCUSHION, INVERTER RADIATOR

main16716-37010iZVW41201109-201811

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903147010iZVW41201109-201811

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047090iZVW41201109-201111

mainG904052010iZVW41201112-201811

G9142BRACKET, HYBRID WATER PUMP, NO.2

mainG914247010iZVW41201109-201811

G9208WIRE SUB-ASSY, INVERTER

mainG920847080iZVW41201109-201811

G9225KHOSE, INVERTER COOLING, NO.1

mainG922547021iZVW41201109-201811

G9226AHOSE, INVERTER COOLING, NO.2

mainG922647020iZVW41201109-201811

G9227AHOSE, INVERTER COOLING, NO.3

mainG922747030iZVW41201109-201811

G9229AHOSE, INVERTER COOLING, NO.5

mainG922947030iZVW41201109-201811

G922KCONNECTOR, HYBRID WATER HOSE

mainG922K47011iZVW41201109-201811

G9236AHOSE, INVERTER COOLING, NO.6

mainG923647031iZVW41201109-201811

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A047010iZVW41201109-201409

mainG92A047011iZVW41201410-201811

9046621004

main90466-21004

9046922001

main90469-22001

9167180635

main91671-80635

9167180820

main91671-80820

9167380622

main91673-80622

9415180840

main94151-80840

9613842501

main96138-42501

24 parts on this diagram · 1 diagram in section
