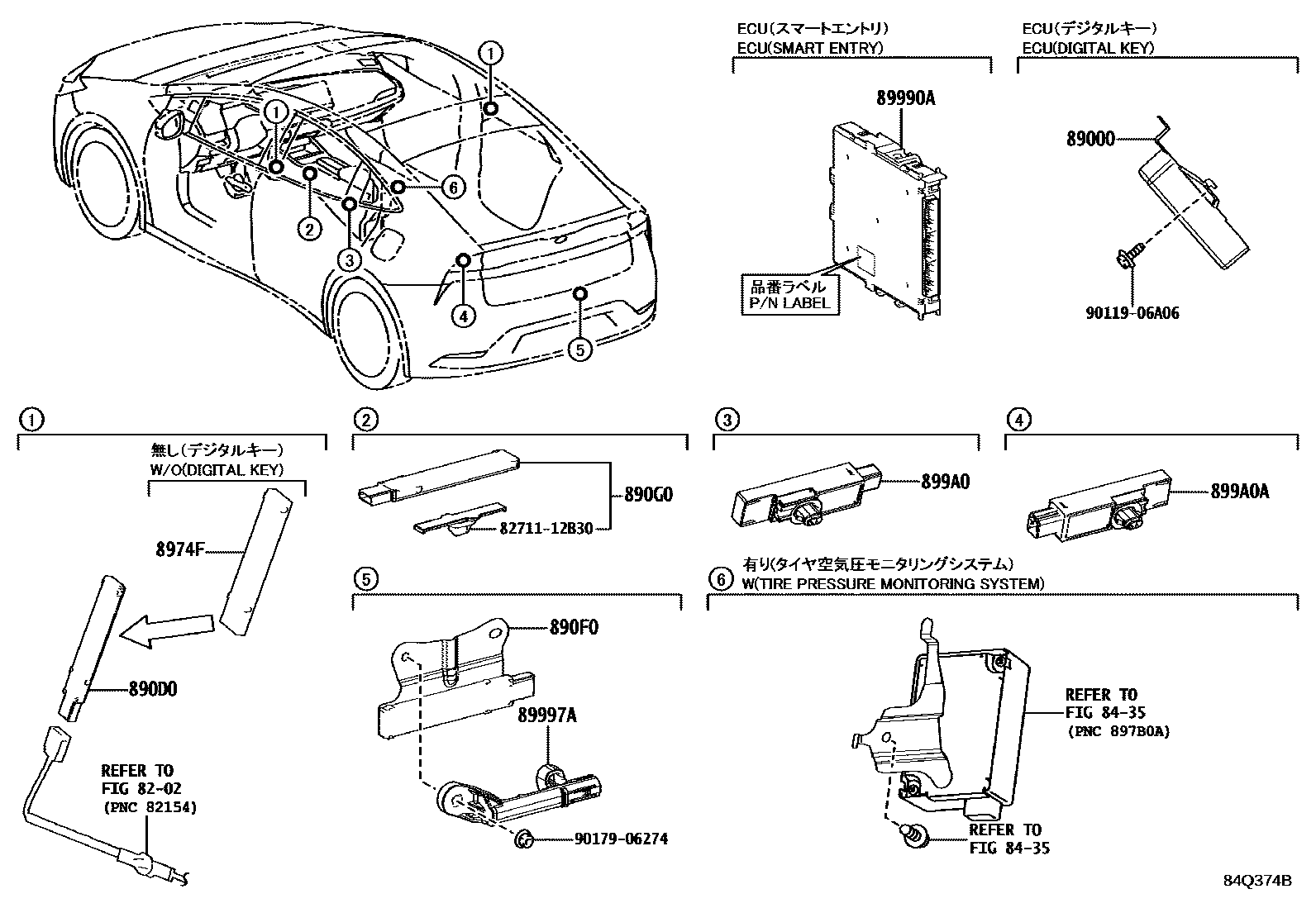

WIRELESS DOOR LOCK

8202WIRING & CLAMP

→ Go to FIG 82-02

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89000COMPUTER ASSY, DIGITAL KEY

main89000-47010iMXWH6#..G; MXWH6#..H202212-202303

SMART ENTRY-WITH(PANIC BUTTON) & WITH(DIGITAL KEY)

main89000-47011iMXWH6#..G; MXWH6#..H202304-202308

SMART ENTRY-WITH(PANIC BUTTON) & WITH(DIGITAL KEY)

main89000-47020iMXWH6#..G; MXWH6#..H202309-202412

SMART ENTRY-WITH(PANIC BUTTON) & WITH(DIGITAL KEY)

main89000-47021iMXWH6#..G; MXWH6#..H202501

SMART ENTRY-WITH(PANIC BUTTON) & WITH(DIGITAL KEY)

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78010×2iMXWH6#..G; MXWH6#..H202212

SMART ENTRY-WITH(PANIC BUTTON) & WITH(DIGITAL KEY)

890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY

main890F0-47010iMXWH6#..G; MXWH6#..H202212-202506

SMART ENTRY-WITH(PANIC BUTTON) & WITH(DIGITAL KEY)

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-V1010iMXWH6#..G; MXWH6#..H202212

SMART ENTRY-WITH(PANIC BUTTON) & WITH(DIGITAL KEY)

8974FCASE, W/O DIGITAL KEY

main8974F-78010×2iMXWH6#..E,G202212

89990ACOMPUTER ASSY, SMART KEY

main899H0-47010iMXWH61..G,H;MXWH60,65..H202212-202405

MARK 89990-47480

main899H0-47011iMXWH60,65..G; MXWH61..G,H;MXWH60,65..H202405

KOREA SPEC,MARK 89990-47481; MARK 89990-47481

main899H0-47030iMXWH60,65..E202212-202310

MARK 89990-47500

main899H0-47031iMXWH60..E; MXWH61..E202409

KOREA SPEC,MARK 89990-47501; MARK 89990-47501

main899H0-47100iMXWH60,65..G202310-202409

MARK 89990-47550

main899H0-47101iMXWH60,65..G202409

MARK 89990-47551

main899H0-47110iMXWH60,65..E202310-202409

MARK 89990-47560

main899H0-47111iMXWH60,65..E202409

MARK 89990-47561

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iMXWH6#..G,H202212

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130iMXWH6#202212

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12130iMXWH6#202212

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30

9011906A06

main90119-06A06

9017906274

main90179-06274

14 parts on this diagram · 1 diagram in section
