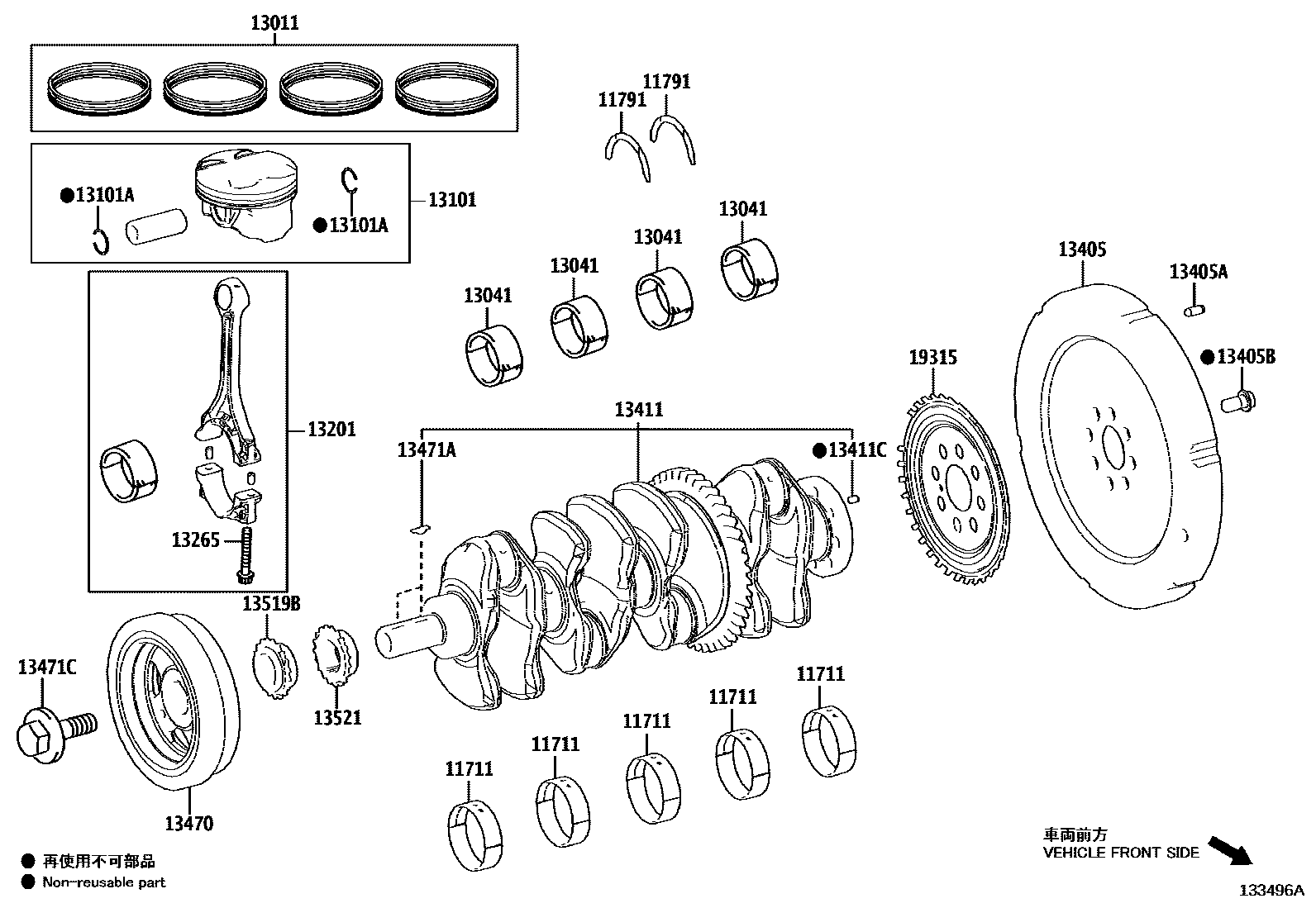

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-24010-01×5iM20AFXS..MXWH6#202212-202303

MARK 1,REFER REPAIR MANUAL

main11701-24010-02×5iM20AFXS..MXWH6#202212-202303

MARK 2,REFER REPAIR MANUAL

main11701-24010-03×5iM20AFXS..MXWH6#202212-202303

MARK 3,REFER REPAIR MANUAL

main11701-24010-04×5iM20AFXS..MXWH6#202212-202303

MARK 4,REFER REPAIR MANUAL

main11701-24010-05×5iM20AFXS..MXWH6#202212-202303

MARK 5,REFER REPAIR MANUAL

main11701-24010-06×5iM20AFXS..MXWH6#202212-202303

MARK 6,REFER REPAIR MANUAL

main11701-24011-01×5iM20AFXS..MXWH6#202303

MARK 1,REFER REPAIR MANUAL

main11701-24011-02×5iM20AFXS..MXWH6#202303

MARK 2,REFER REPAIR MANUAL

main11701-24011-03×5iM20AFXS..MXWH6#202303

MARK 3,REFER REPAIR MANUAL

main11701-24011-04×5iM20AFXS..MXWH6#202303

MARK 4,REFER REPAIR MANUAL

main11701-24011-05×5iM20AFXS..MXWH6#202303

MARK 5,REFER REPAIR MANUAL

main11701-24011-06×5iM20AFXS..MXWH6#202303

MARK 6,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030×2iM20AFXS..MXWH6#202212

STD

13011RING SET, PISTON

main13011-24040iM20AFXS..MXWH6#202212

STD

13041BEARING, CONNECTING ROD

main13041-24020-01×4iM20AFXS..MXWH6#202212

MARK 1,REFER REPAIR MANUAL

main13041-24020-02×4iM20AFXS..MXWH6#202212

MARK 2,REFER REPAIR MANUAL

main13041-24020-03×4iM20AFXS..MXWH6#202212

MARK 3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-24050×4iM20AFXS..MXWH6#202212

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019×8iM20AFXS..MXWH6#202212

13201ROD SUB-ASSY, CONNECTING

main13201-29835-A0×4iM20AFXS..MXWH6#202212

MARK A,REFER REPAIR MANUAL

main13201-29835-B0×4iM20AFXS..MXWH6#202212

MARK B,REFER REPAIR MANUAL

main13201-29835-C0×4iM20AFXS..MXWH6#202212

MARK C,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-25020×8iM20AFXS..MXWH6#202212

13405FLYWHEEL SUB-ASSY

main13451-24081iM20AFXS..MXWH6#202212

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3iM20AFXS..MXWH6#202212

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-12404×8iM20AFXS..MXWH6#202212

13411CRANKSHAFT

main13401-24010iM20AFXS..MXWH60,65202212

main13401-24020iM20AFXS..MXWH61202303

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035iM20AFXS..MXWH6#202212

13470PULLEY ASSY, CRANKSHAFT

main13470-24020iM20AFXS..MXWH6#202212

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2iM20AFXS..MXWH6#202212

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020iM20AFXS..MXWH6#202212

13519BSPROCKET, OIL PUMP DRIVE

main13519-24010iM20AFXS..MXWH6#202212

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-24010iM20AFXS..MXWH6#202212

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010iM20AFXS..MXWH6#202212

19 parts on this diagram · 1 diagram in section
