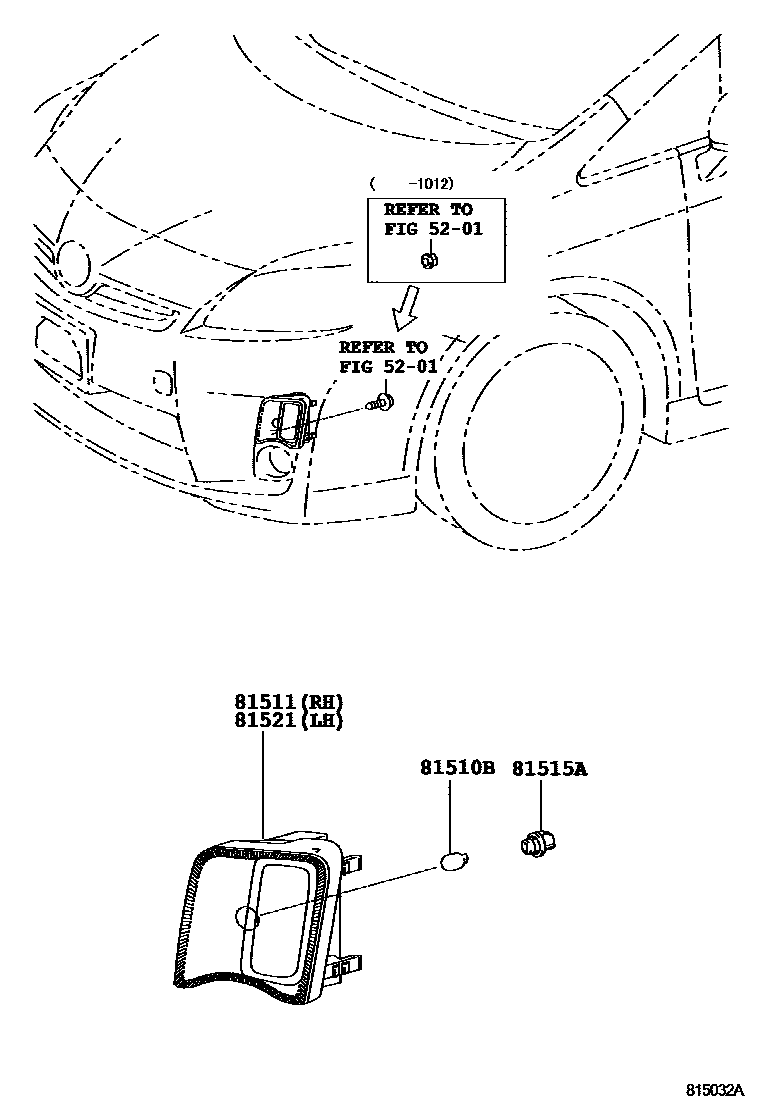

FRONT TURN SIGNAL LAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZVW30200904-201112

12V 21W,AMBER

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-47020iZVW30200904-201012

main81511-47021iZVW30201012-201112

main81511-47040iZVW30..(G,S)..USA; ZVW30..CND201112

KOREA SPEC

main81511-47060iZVW30..USA201112

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main90075-60028×2iZVW30200904-201112

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-47020iZVW30200904-201012

main81521-47021iZVW30201012-201112

main81521-47040iZVW30..(G,S)..USA; ZVW30..CND201112

KOREA SPEC

main81521-47060iZVW30..USA201112

5 parts on this diagram · 2 diagrams in section
