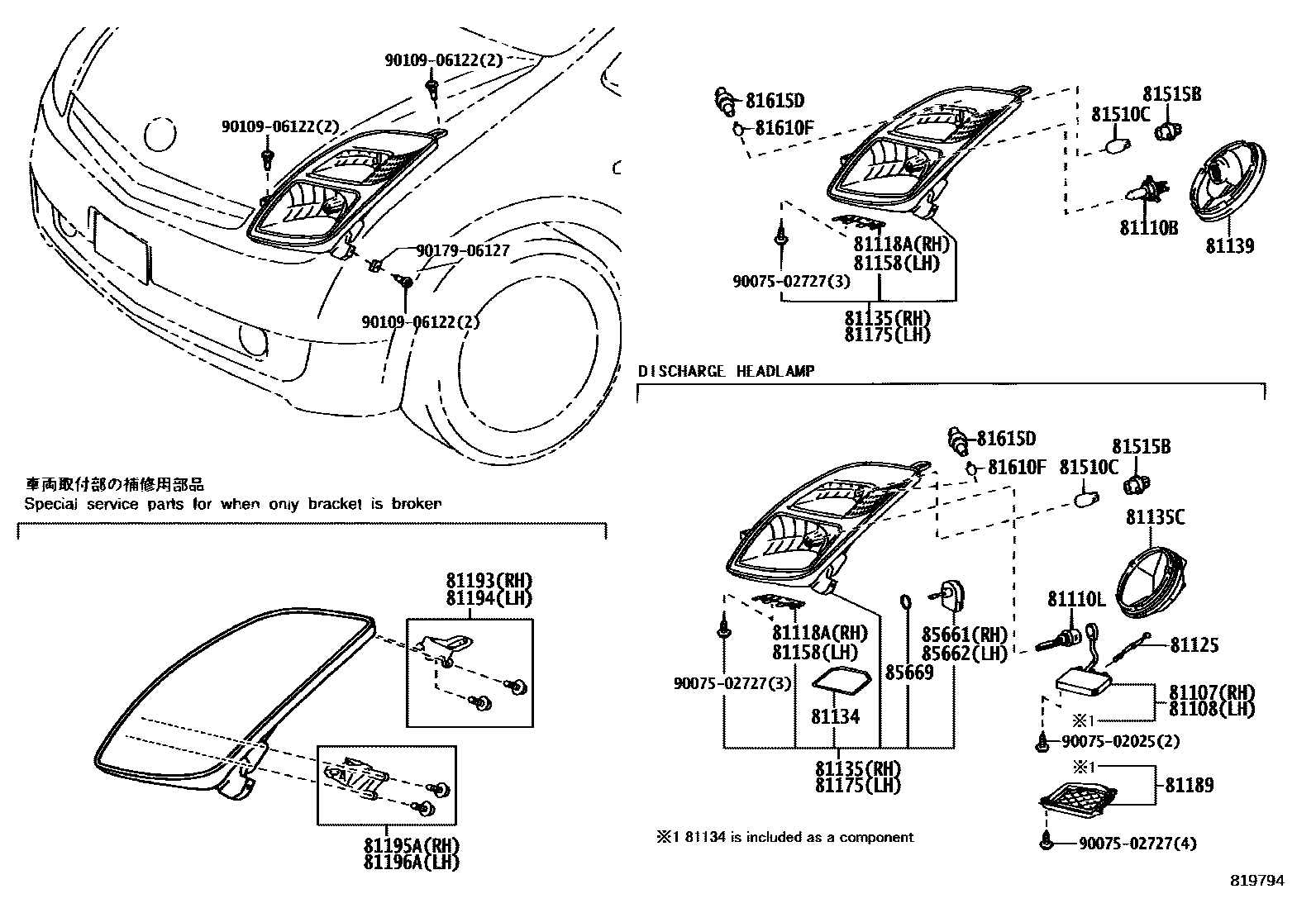

HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
HEADLAMP-DISCHARGE(2 LIGHTS)
W(VSC)
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
HEADLAMP-DISCHARGE(2 LIGHTS)
W(VSC)
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,HALOGEN
81110LBULB, DISCHARGE HEADLAMP
85V 35W,W(VSC)
43V 35W,HEADLAMP-DISCHARGE(2 LIGHTS)
81118ABRACKET, HEADLAMP, RH
81125CORD, HEADLAMP
W(VSC)
HEADLAMP-DISCHARGE(2 LIGHTS)
81134GASKET, HEADLAMP
W(VSC)
HEADLAMP-DISCHARGE(2 LIGHTS)
81135UNIT ASSY, HEADLAMP, RH
W(VSC)
HEADLAMP-DISCHARGE(2 LIGHTS)
81135CCOVER, HEADLAMP BACK, NO.1
HEADLAMP-DISCHARGE(2 LIGHTS)
81139COVER, HEADLAMP SOCKET
81158BRACKET, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
W(VSC)
HEADLAMP-DISCHARGE(2 LIGHTS)
81189COVER, HEADLAMP
W(VSC)
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
HEADLAMP-DISCHARGE(2 LIGHTS)
W(VSC)
85662MOTOR, HEADLAMP LEVELING, LH
HEADLAMP-DISCHARGE(2 LIGHTS)
W(VSC)
85669PACKING, HEADLAMP LEVELING MOTOR BASE
W(VSC)
9007502025
main90075-02025
9007502727
main90075-02727
9010906122
main90109-06122
9017906127
main90179-06127
28 parts on this diagram · 2 diagrams in section
