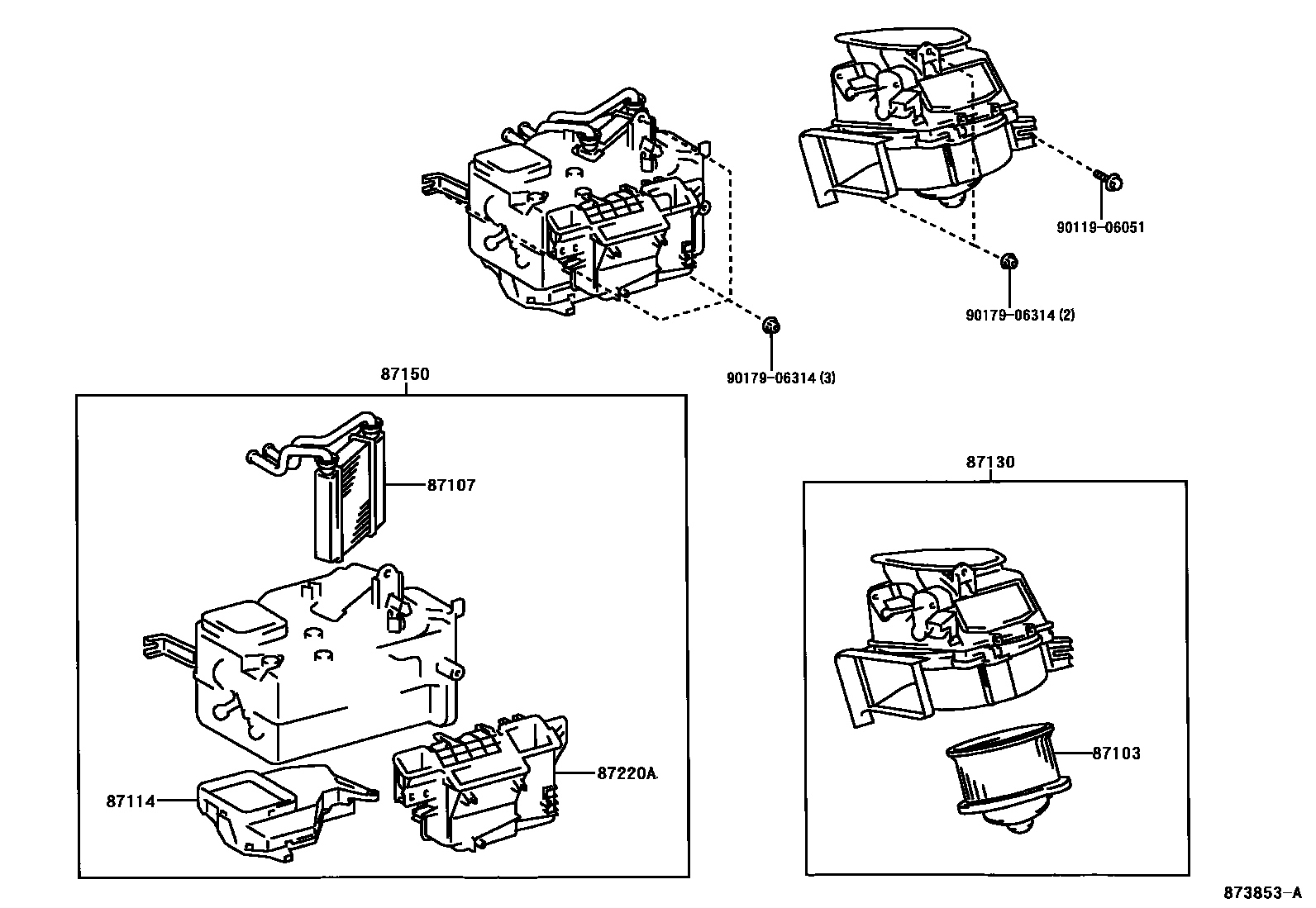

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-17040iZZW30199912-200208

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-17100iZZW30199912-200208

87114COVER, HEATER

main87114-17020iZZW30199912-200208

87130BLOWER ASSY, HEATER, FRONT

main87130-17100iZZW30199912-200208

87150RADIATOR ASSY, HEATER

main87150-17290iZZW30199912-200208

87220ADUCT ASSY, HEATER RADIATOR AIR

main87220-17020iZZW30199912-200208

9011906051

main90119-06051

9017906314

main90179-06314

8 parts on this diagram · 1 diagram in section
