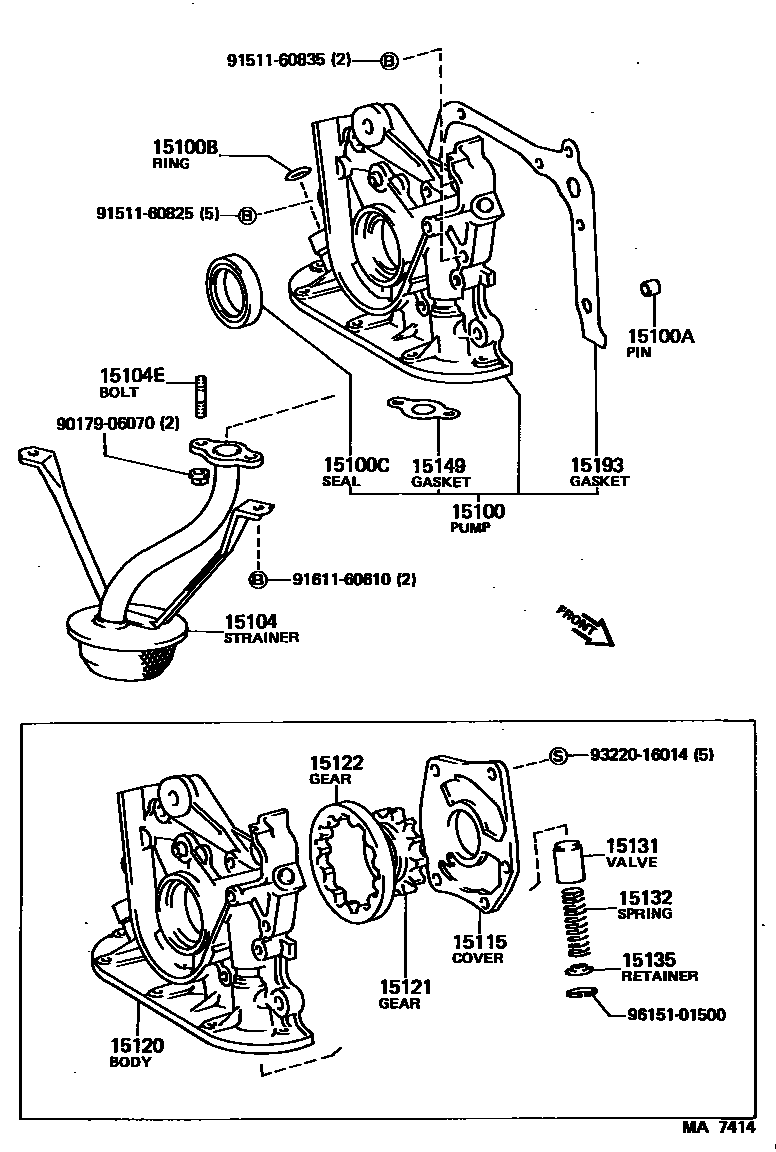

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-19025i4AG#..AW11198412-198912

main15100-19026i4AG#..AW11198912-198912

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i4AG#..AW11198412-198803

15100BRING, O(FOR OIL PUMP)

main96711-19010i4AG#..AW11198412-198803

15100CSEAL(FOR OIL PUMP)

main90311-32001i4AG#..AW11198412-198912

main90311-32018i4AG#..AW11198911-198912

15104STRAINER SUB-ASSY, OIL

main15104-15080i4AG#..AW11198412-198912

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06022×2i4AG#..AW11198803-198912

main90116-06049×2i4AG#..AW11198412-198803

15115COVER, OIL PUMP

main15115-16010i4AG#..AW11198412-198912

15120BODY SUB-ASSY, OIL PUMP

main15120-16010i4AG#..AW11198412-198912

15121GEAR, OIL PUMP DRIVE

main15121-16010i4AG#..AW11198412-198912

15122GEAR, OIL PUMP DRIVEN

main15122-16010i4AG#..AW11198412-198912

15131VALVE, OIL PUMP RELIEF

main15131-24010i4AG#..AW11198412-198912

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i4AG#..AW11198412-198912

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i4AG#..AW11198412-198912

15149GASKET, OIL STRAINER FLANGE

main15149-15010i4AG#..AW11198412-198912

15193GASKET, OIL PUMP

main15197-15011i4AG#..AW11198412-198912

9017906070

main90179-06070

9151160825

main91511-60825

9151160835

main91511-60835

9161160610

main91611-60610

9322016014

main93220-16014

9615101500

main96151-01500

21 parts on this diagram · 1 diagram in section
