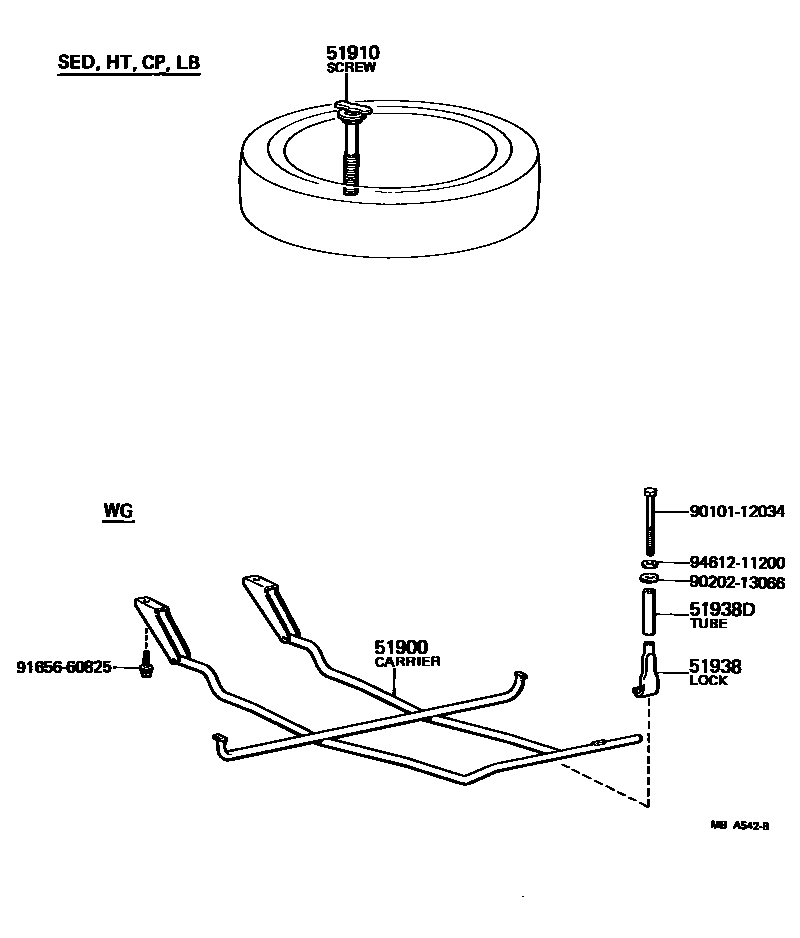

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-13021iAE71,TE72..WG197908-198307

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-10040iTE72..(CP,LB,SED)..(DX,STD)197908-197909

main51910-12030iTE72..SR5197908-197909

W/5J-13 DISC WHEEL

main51910-14040iAE71,TE72..CP,HT,LB,SED197909-198307

51938LOCK, SPARE WHEEL CARRIER

main51938-13010iAE71,TE72..WG197908-198307

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17015iAE71,TE72..WG197908-198307

9010112034

main90101-12034

9020213066

main90202-13066

9165660825

main91656-60825

9461211200

main94612-11200

8 parts on this diagram · 1 diagram in section
