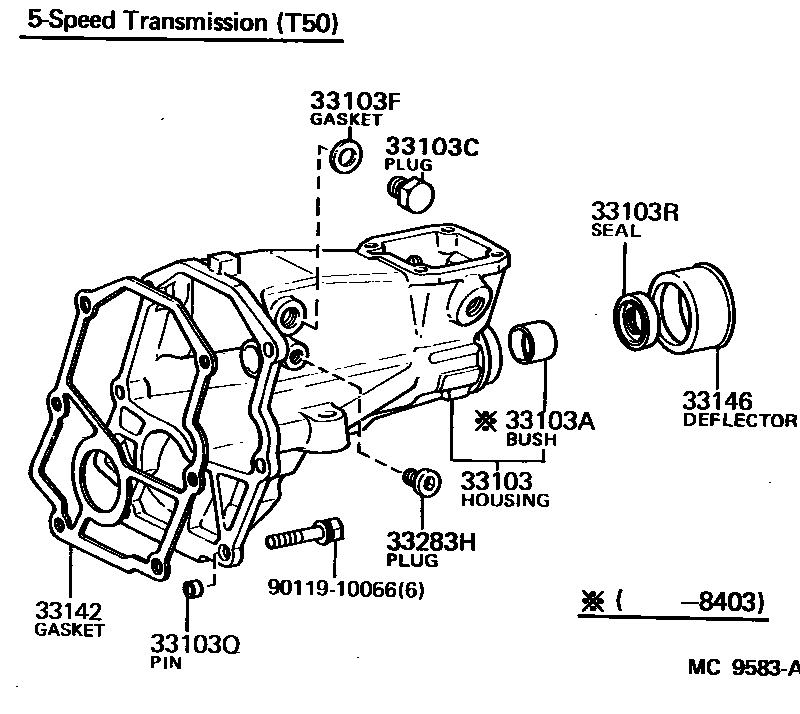

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-12130iAE86..5F198503-198707

main33103-14040iAE86..5F198308-198403

main33103-14041iAE86..5F198403-198503

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72022iAE86..5F198308-198403

33103CPLUG, NO.1(FOR EXTENSION HOUSING)

main90341-18006iAE86..5F198310-198707

main90341-18049iAE86..5F198308-198310

33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)

main90430-18007iAE86..5F198308-198408

main90430-18008iAE86..5F198408-198707

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-13017×2iAE86..5F198308-198707

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-32010iAE86..5F198308-198707

33142GASKET, EXTENSION HOUSING(MTM)

main33142-14010iAE86..5F198308-198707

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-12010iAE86..5F198308-198707

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iAE86..5F198308-198707

9011910066

main90119-10066

10 parts on this diagram · 1 diagram in section
