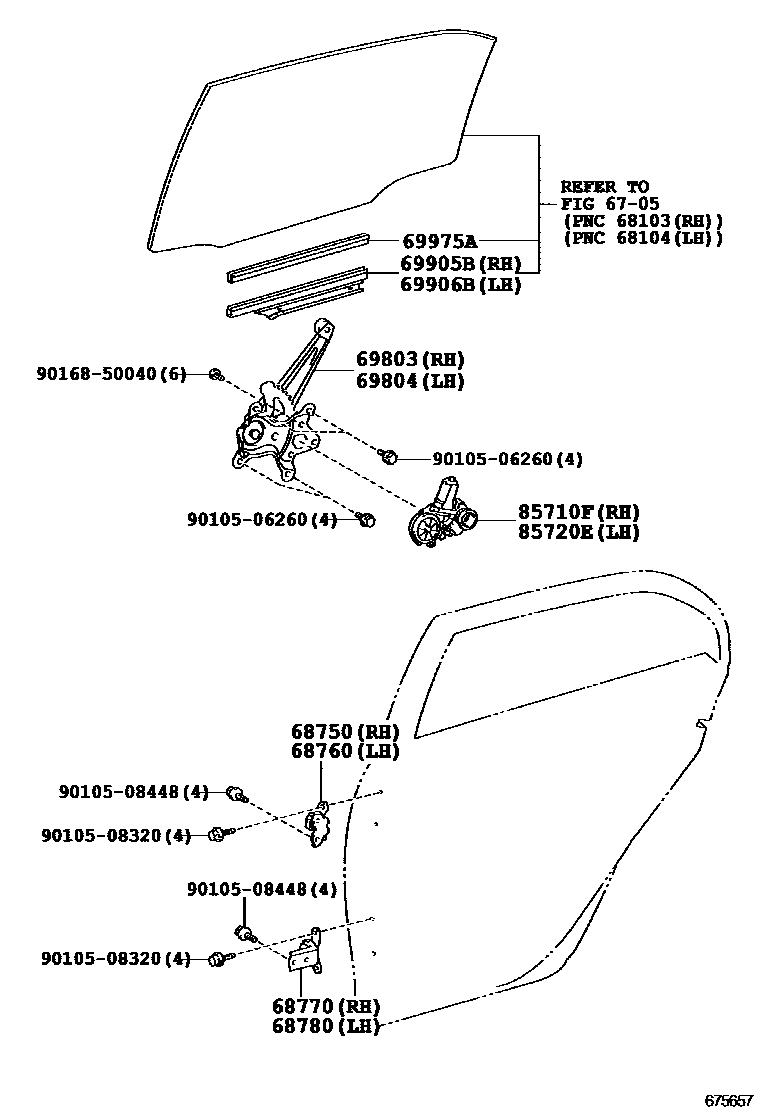

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-02070iZZE142..SEG..HTWCF200803-201003

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-02070iZZE142..SEG..HTWCF200803-201003

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iZZE14#200803-200810

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iZZE14#200803-200810

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-02210iZZE142..SEG..HTWCF200803-201003

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-02210iZZE142..SEG..HTWCF200803-201003

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-02110iZZE142..SEG..HTWCF200803-201003

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-02110iZZE142..SEG..HTWCF200803-201003

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-02120×2iZZE142..CNG200803-201105

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-02340iZZE142..CNG200910-201105

main85720-0D120iZZE14#..CE,XLI; ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803

LOW GRADE PACKAGE

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-02360iZZE142..BZ,VEN200803-200909

main85710-0D100iZRE142..HTWCF;ZRE142..MTM..XEI; ZRE142..XLI201103-201403

LOW GRADE PACKAGE

9010506260

main90105-06260

9010508320

main90105-08320

9010508448

main90105-08448

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
