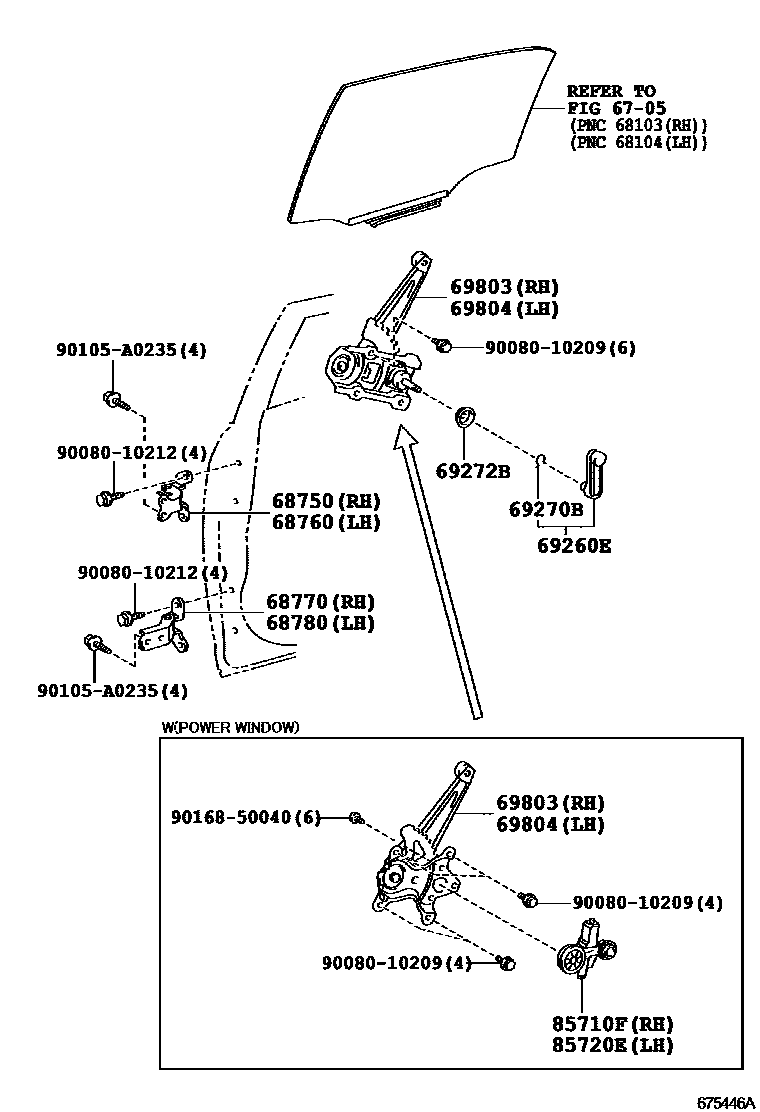

REAR DOOR WINDOW REGULATOR & HINGE
6705REAR DOOR PANEL & GLASS
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
DK.GRAY,TRIM1#; POWER WINDOW-WITH 4DR JAM-PRO AUTO U/D,DK.GRAY,TRIM1#; POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM1#
GRAY,TRIM1#; POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#
GRADE MARK-LE,GREGE,TRIM4#; GREGE,TRIM4#; POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#
69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
POWER WINDOW-WITH 4DR JAM-PRO AUTO U/D; POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
POWER WINDOW-WITH 4DR JAM-PRO AUTO U/D; POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
main69803-02150supersedes 69830-02290iAZE141,ZRE142..NAP..(CE,S,STD,XRS); ZRE142..NAP..LE200801-201012
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
main69804-02150supersedes 69840-02290iAZE141,ZRE142..NAP..(CE,S,STD,XRS); ZRE142..NAP..LE200801-201012
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH
9008010209
main90080-10209
9008010212
main90080-10212
90105A0235
main90105-A0235
9016850040
main90168-50040
16 parts on this diagram · 1 diagram in section
