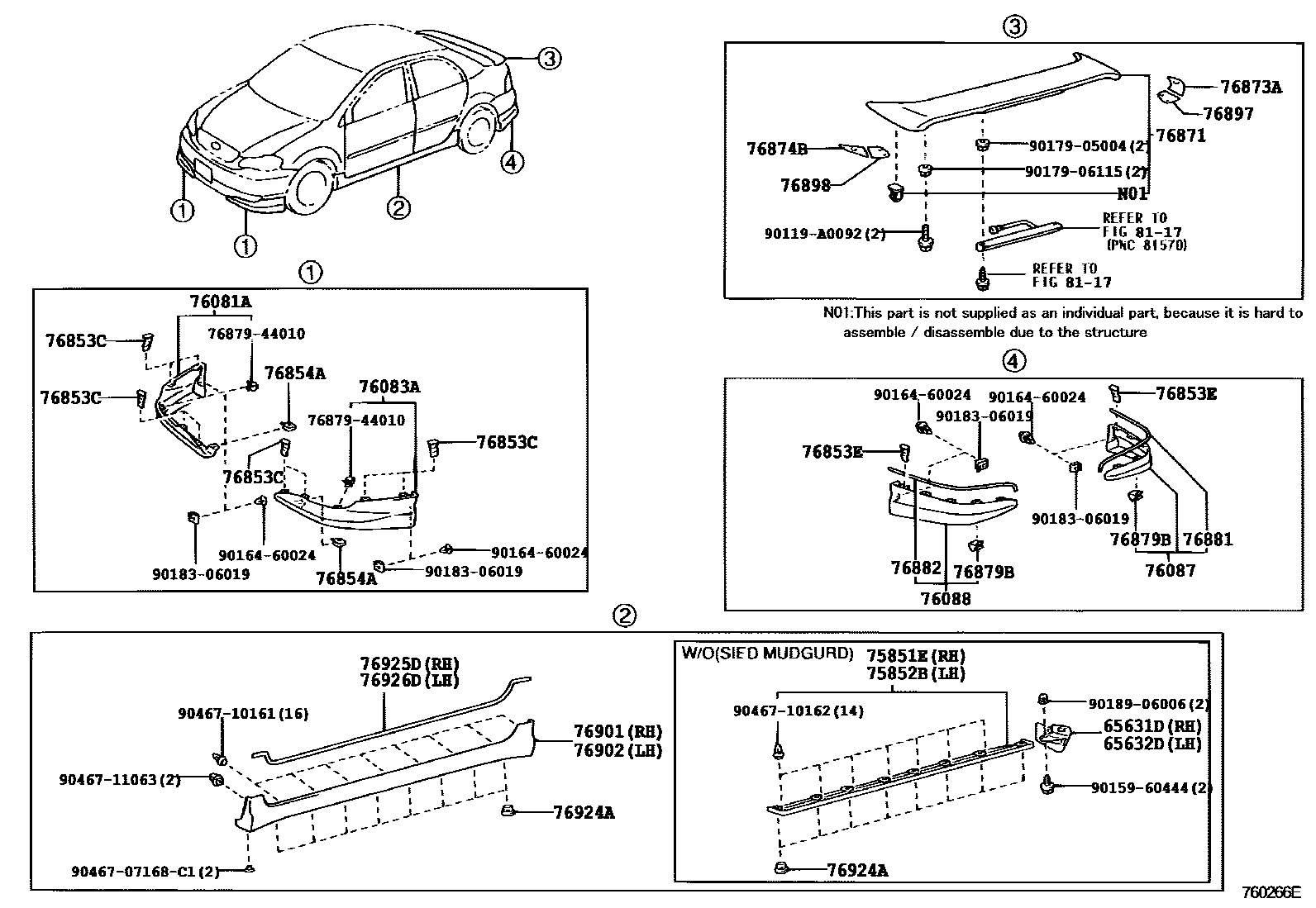

MUDGUARD & SPOILER

0001 1 0002 1 0003 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-02030iZZE130..5F..CE..CND;ZZE130..4FC..(CE,LE)..CND; ZZE130..NAP..5F..LE..CND200201-200405

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-02030iZZE130..5F..CE..CND;ZZE130..4FC..(CE,LE)..CND; ZZE130..NAP..5F..LE..CND200201-200405

75851EMOULDING, BODY ROCKER PANEL, RH

main75851-02030iZZE130..NAP..5F..CE..CND;ZZE130..NAP..4FC..(CE,LE);ZZE130..NAP..5F..(CE,LE)..USA; ZZE130..NAP..5F..LE..CND200201-200405

75852BMOULDING, BODY ROCKER PANEL, LH

main75852-02030iZZE130..NAP..5F..CE..CND;ZZE130..NAP..4FC..(CE,LE);ZZE130..NAP..5F..(CE,LE)..USA; ZZE130..NAP..5F..LE..CND200201-200405

76081ASPOILER SUB-ASSY, FRONT RH

main76081-02010-A1iZZE130..NAP..S200201-200405

SUPER WHITE 2,040

main76081-02010-B2iZZE130..NAP..S200201-200405

SILVER ME.,1C8

main76081-02010-B3iZZE130..NAP..S200201-200405

CHARCOAL GRAY ME.,1E6

main76081-02010-C1iZZE130..NAP..S200201-200405

BLACK MC.,209

main76081-02010-D1iZZE130..NAP..S200201-200405

RED M.M.,3P1

main76081-02010-G1iZZE130..NAP..S200201-200405

GRAYISH GREEN M.M.OP,6R6

main76081-02010-J1iZZE130..NAP..S200201-200405

DK.BLUE M.M.,8P4

main76081-02030-A0iZZE130,131..NAP..S200405-200801

SUPER WHITE 2,040

main76081-02030-B0iZZE130,131..NAP..S200405-200801

GRAY M.M.,1E3

main76081-02030-B1iZZE130,131..NAP..S200405-200801

SILVER M.M.,1E7

main76081-02030-C0iZZE130,131..NAP..S200405-200801

BLACK MC.,209

main76081-02030-D0iZZE130,131..NAP..S200405-200801

RED M.M.,3P1

main76081-02030-J0iZZE130,131..NAP..S200405-200801

DK.BLUE M.M.,8P4

main76081-02030-J1iZZE130..NAP..S200702-200801

BLUE ME.,8P1

76083ASPOILER SUB-ASSY, FRONT LH

main76083-02010-A1iZZE130..NAP..S200201-200405

SUPER WHITE 2,040

main76083-02010-B2iZZE130..NAP..S200201-200405

SILVER ME.,1C8

main76083-02010-B3iZZE130..NAP..S200201-200405

CHARCOAL GRAY ME.,1E6

main76083-02010-C1iZZE130..NAP..S200201-200405

BLACK MC.,209

main76083-02010-D1iZZE130..NAP..S200201-200405

RED M.M.,3P1

main76083-02010-G1iZZE130..NAP..S200201-200405

GRAYISH GREEN M.M.OP,6R6

main76083-02010-J1iZZE130..NAP..S200201-200405

DK.BLUE M.M.,8P4

main76083-02030-A0iZZE130,131..NAP..S200405-200801

SUPER WHITE 2,040

main76083-02030-B0iZZE130,131..NAP..S200405-200801

GRAY M.M.,1E3

main76083-02030-B1iZZE130,131..NAP..S200405-200801

SILVER M.M.,1E7

main76083-02030-C0iZZE130,131..NAP..S200405-200801

BLACK MC.,209

main76083-02030-D0iZZE130,131..NAP..S200405-200801

RED M.M.,3P1

main76083-02030-J0iZZE130,131..NAP..S200405-200801

DK.BLUE M.M.,8P4

main76083-02030-J1iZZE130..NAP..S200702-200801

BLUE ME.,8P1

76087SPOILER SUB-ASSY, REAR NO.1

main76087-02010-A1iZZE130..NAP..S200201-200405

SUPER WHITE 2,040

main76087-02010-B2iZZE130..NAP..S200201-200405

SILVER ME.,1C8

main76087-02010-B3iZZE130..NAP..S200201-200405

CHARCOAL GRAY ME.,1E6

main76087-02010-B4iZZE130,131..NAP..S200405-200801

GRAY,1E3

main76087-02010-B5iZZE130,131..NAP..S200405-200801

SILVER M.M.,1E7

main76087-02010-C1iZZE130,131..NAP..S200405-200801

BLACK MC.,209

main76087-02010-D1iZZE130..NAP..S200201-200405

RED M.M.,3P1

main76087-02010-G1iZZE130..NAP..S200201-200405

GRAYISH GREEN M.M.OP,6R6

main76087-02010-J1iZZE130..NAP..S200201-200405

DK.BLUE M.M.,8P4

main76087-02010-J2iZZE130..NAP..S200702-200801

BLUE ME.,8P1

76088SPOILER SUB-ASSY, REAR NO.2

main76088-02010-A1iZZE130..NAP..S200201-200405

SUPER WHITE 2,040

main76088-02010-B2iZZE130..NAP..S200201-200405

SILVER ME.,1C8

main76088-02010-B3iZZE130..NAP..S200201-200405

CHARCOAL GRAY ME.,1E6

main76088-02010-B4iZZE130,131..NAP..S200405-200801

GRAY,1E3

main76088-02010-B5iZZE130,131..NAP..S200405-200801

SILVER M.M.,1E7

main76088-02010-C1iZZE130..NAP..S200201-200405

BLACK MC.,209

main76088-02010-D1iZZE130,131..NAP..S200405-200801

RED M.M.,3P1

main76088-02010-G1iZZE130..NAP..S200201-200405

GRAYISH GREEN M.M.OP,6R6

main76088-02010-J1iZZE130..NAP..S200201-200405

DK.BLUE M.M.,8P4

main76088-02010-J2iZZE130..NAP..S200702-200801

BLUE ME.,8P1

76853CRETAINER, FRONT SPOILER, NO.1

main76853-10010×14iZZE130..NAP..S; ZZE133..NAP..6F;ZZE132,134..NAP..XR200201-200405

76853ERETAINER, REAR SPOILER, NO.1

main76853-10010×10iZZE133..NAP..4FC200201-200305

76854ARETAINER, FRONT SPOILER, NO.2

main76854-44010×6iZZE133..NAP..4FC200201-200305

76871SPOILER, REAR

main76871-02900iZZE130..NAP200201-200405

PAINT REQ.

main76871-02901iZZE133..NAP..6F;ZZE132,134..NAP..XR200201-200405

PAINT REQ.

76873APROTECTOR, REAR SPOILER, RH

main76783-02020iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405

76874BPROTECTOR, REAR SPOILER, LH

main76784-02020iZZE130,131..NAP200405

76879BCLIP, REAR SPOILER, NO.2

main76879-44010×2iZZE130..NAP..S200201-200405

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-02010-B0iZZE130..NAP..S200201-200405

GRAY,040 ,1C8 ,1E6 ,6R6 ,8P4

main76881-02010-C0iZZE130..NAP..S200405-200801

BLACK,209 ,3P1 ,8P1 ,8P4

main76881-02020-B0iZZE133..NAP..4FC200201-200305

GRAY,040 ,1C8 ,8Q5

main76881-02020-C0iZZE133..NAP..6F;ZZE132,134..NAP..XR200201-200405

BLACK,209 ,3L5 ,8P4

main76881-02020-E0iZZE132,133,134..NAP..(XR,XRS)200201-200305

IVORY,4Q2

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76882-02010-B0iZZE130..NAP..S200201-200405

GRAY,040 ,1C8 ,1E6 ,6R6 ,8P4

main76882-02010-C0iZZE131..NAP200405-200607

BLACK,209 ,3P1 ,8P4

main76882-02020-B0iZZE133..NAP..6F;ZZE132,134..NAP..XR200201-200405

GRAY,040 ,1C8 ,1E3 ,576 ,8Q5

main76882-02020-C0iZZE133..NAP..4FC200201-200305

BLACK,209 ,3L5 ,8P4

main76882-02020-E0iZZE132,133,134..NAP..(XR,XRS)200201-200305

IVORY,4Q2

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-02020iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-02020iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405

76901MUDGUARD SUB-ASSY, SIDE, RH

main76911-02030-A0iZZE130..NAP..S200201-200405

SUPER WHITE 2,040

main76911-02030-B0iZZE130..NAP..S200201-200405

SILVER ME.,1C8

main76911-02030-B1iZZE130..NAP..S200201-200405

CHARCOAL GRAY ME.,1E6

main76911-02030-B2iZZE130,131..NAP..S200405-200801

GRAY M.M.,1E3

main76911-02030-B3iZZE130,131..NAP..S200405-200801

SILVER M.M.,1E7

main76911-02030-C0iZZE130,131..NAP..S200405-200801

BLACK MC.,209

main76911-02030-D0iZZE130..NAP..S200201-200405

RED M.M.,3P1

main76911-02030-G0iZZE130..NAP..S200201-200405

GRAYISH GREEN M.M.OP,6R6

main76911-02030-J0iZZE130,131..NAP..S200405-200801

DK.BLUE M.M.,8P4

main76911-02030-J1iZZE130..NAP..S200702-200801

BLUE ME.,8P1

main76911-02040-A0iZZE133..NAP..6F;ZZE132,134..NAP..XR200201-200405

SUPER WHITE 2,040

main76911-02040-B0iZZE133..NAP..4FC200201-200305

SILVER ME.,1C8

main76911-02040-B1iZZE133..NAP..6F;ZZE132,134..NAP..XR200201-200405

GRAY M.M.,1E3

main76911-02040-B2iZZE132,133,134..NAP..(XR,XRS)200405

SILVER M.M.,1E7

main76911-02040-B3iZZE132,133,134..NAP..(XR,XRS)200405

DK. GRAY M.M.,1F4

main76911-02040-C0iZZE133..NAP..4FC200201-200305

BLACK MC.,209

main76911-02040-D1iZZE133..NAP..6F;ZZE132,134..NAP..XR200201-200405

RED,3L5

main76911-02040-E0iZZE132,133,134..NAP..(XR,XRS)200201-200305

BEIGE M. M.,4Q2

main76911-02040-F0iZZE133..NAP..6F;ZZE132,134..NAP..XR200201-200405

SUPER BRIGHT YELLOW,576

main76911-02040-J0iZZE132..NAP..STD..CND200501

DK.BLUE M.M.,8P4

main76911-02040-J1iZZE133..NAP..6F;ZZE132,134..NAP..XR200201-200405

BLUE ME.,8Q5

main76911-02040-J2iZZE132..NAP..CND;ZZE132..NAP..XR..USA200607

BLUE ME.,8P1

76902MUDGUARD SUB-ASSY, SIDE, LH

main76912-02030-A0iZZE130..NAP..S200201-200405

SUPER WHITE 2,040

main76912-02030-B0iZZE130..NAP..S200201-200405

SILVER ME.,1C8

main76912-02030-B1iZZE130..NAP..S200201-200405

CHARCOAL GRAY ME.,1E6

main76912-02030-B2iZZE130,131..NAP..S200405-200801

GRAY M.M.,1E3

main76912-02030-B3iZZE130,131..NAP..S200405-200801

SILVER M.M.,1E7

main76912-02030-C0iZZE130..NAP..S200201-200405

BLACK MC.,209

main76912-02030-D0iZZE130..NAP..S200201-200405

RED M.M.,3P1

main76912-02030-G0iZZE130..NAP..S200201-200405

GRAYISH GREEN M.M.OP,6R6

main76912-02030-J0iZZE130,131..NAP..S200405-200801

DK.BLUE M.M.,8P4

main76912-02030-J1iZZE130..NAP..S200702-200801

BLUE ME.,8P1

main76912-02040-A0iZZE132,133,134..NAP..(XR,XRS)200405

SUPER WHITE 2,040

main76912-02040-B0iZZE133..NAP..4FC200201-200305

SILVER ME.,1C8

main76912-02040-B1iZZE132,133,134..NAP..(XR,XRS)200405

GRAY M.M.,1E3

main76912-02040-B2iZZE132,133,134..NAP..(XR,XRS)200405

SILVER M.M.,1E7

main76912-02040-B3iZZE132..NAP..STD..CND200501-200607

DK. GRAY M.M.,1F4

main76912-02040-C0iZZE132..NAP..STD..CND200501

BLACK MC.,209

main76912-02040-D1iZZE132,133,134..NAP..(XR,XRS)200405

RED,3L5

main76912-02040-E0iZZE132,133,134..NAP..(XR,XRS)200201-200305

BEIGE M. M.,4Q2

main76912-02040-F0iZZE133..NAP..6F;ZZE132,134..NAP..XR200201-200405

SUPER BRIGHT YELLOW,576

main76912-02040-J0iZZE132..NAP..STD..CND200501

DK.BLUE M.M.,8P4

main76912-02040-J1iZZE132,133,134..NAP..(XR,XRS)200405

BLUE ME.,8Q5

main76912-02040-J2iZZE132..NAP..CND;ZZE132..NAP..XR..USA200607

BLUE ME.,8P1

76924ARETAINER, SIDE MUDGUARD, NO.2

main76924-02010×16iZZE130..NAP; ZZE133..NAP..6F;ZZE132,134..NAP..XR200311-200405

main76924-52021×16iZZE133..NAP..4FC200201-200305

76925DPROTECTOR, SIDE MUDGUARD, RH

main76925-02030-B0iZZE130..NAP..S200201-200405

GRAY,040 ,1C8 ,1E6 ,6R6

main76925-02030-C0iZZE130..NAP..S200405-200801

BLACK,209 ,3P1 ,8P1 ,8P4

main76925-02040-B0iZZE132..NAP..STD..CND200501

GRAY,040 ,1E7 ,8Q5

main76925-02040-C0iZZE133..NAP..6F;ZZE132,134..NAP..XR200201-200405

BLACK,209 ,3L5 ,8P4

main76925-02040-E0iZZE132,133,134..NAP..(XR,XRS)200201-200305

IVORY,4Q2

76926DPROTECTOR, SIDE MUDGUARD, LH

main76925-02030-B0iZZE130,131..NAP..S200405-200801

GRAY,040 ,1E3 ,1E7

main76925-02030-C0iZZE130..NAP..S200405-200801

BLACK,209 ,3P1 ,8P1 ,8P4

main76925-02040-B0iZZE133..NAP..4FC200201-200305

GRAY,040 ,1C8 ,8Q5

main76925-02040-C0iZZE133..NAP..4FC200201-200305

BLACK,209 ,3L5 ,8P4

main76925-02040-E0iZZE132,133,134..NAP..(XR,XRS)200201-200305

IVORY,4Q2

8117CENTER STOP LAMP

→ Go to FIG 81-17

7687944010CLIP, REAR SPOILER, NO.1

main76879-44010

90119A0092

main90119-A0092

9015960444

main90159-60444

9016460024

main90164-60024

9017905004

main90179-05004

9017906115

main90179-06115

9018306019

main90183-06019

9018906006

main90189-06006

9046707168C1

main90467-07168C1

9046710161

main90467-10161

9046710162

main90467-10162

9046711063

main90467-11063
