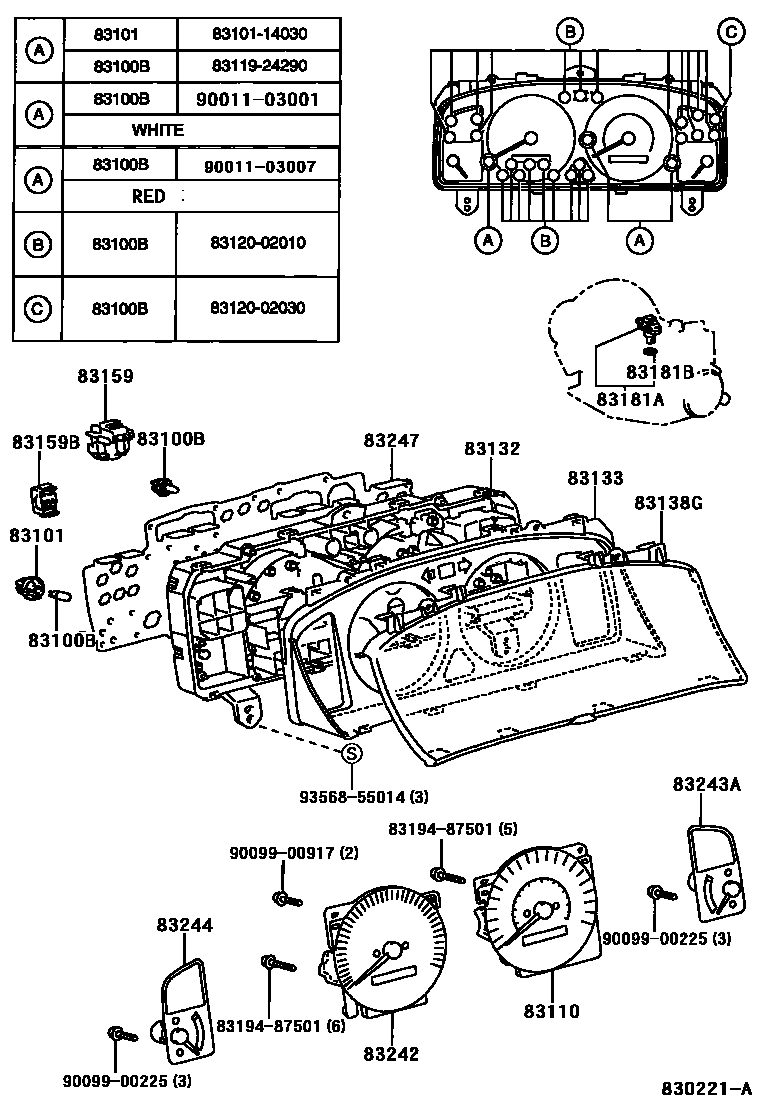

METER

0001 1W(TACHOMETER) 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main83119-24290×3iZZE110199708-200005

14V 3.78W,TYPE A:REFER TO ILLUSTRATION

main83120-02010iZZE110199708-200005

14V 3.0W,TYPE B:REFER TO ILLUSTRATION

main83120-02030×14iZZE110..CND; ZZE110..TAIW; ZZE110..USA199708-200005

14V 1.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION

main90011-03001×3iZZE110199708-200005

14V 3.78W,TYPE A:REFER TO ILLUSTRATION,WHITE

main90011-03007iZZE110..S..(CND,USA)200005

14V 3.4W,TYPE A:REFER TO ILLUSTRATION,RED

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iZZE110..CE1,CE2,LE1,LE2,VE199708

83110SPEEDOMETER ASSY

main83220-02020iZZE110..(CE1,CE2,LE1,LE2,VE)..USA199708

main83220-02030iZZE110..(CE1,CE2,LE1,LE2,VE)..CND199708

main83220-02040iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

main83220-02050iZZE110..USA199708-200005

WHITE

main83220-02060iZZE110..CND199708-200005

WHITE

main83220-02100iZZE110..TAIW199708-200005

WHITE

main83220-02120iZZE110..S..USA200005

main83220-02130iZZE110..S..CND200005

83132CASE, COMBINATION METER

main83841-02050iZZE110..CE1..USA; ZZE110..VE..USA199708-200005

W(TACHOMETER); W(TACHOMETER---SECURITY)

main83841-02060iZZE110..USA199708

W(TACHOMETER---TEMPERATURE)

main83841-02070iZZE110..CND199708

W(TACHOMETER)

main83841-02080iZZE110..TAIW199708

main83841-02110iZZE110..(CE1,CE2,LE1,LE2,VE)..USA199708

main83841-02130iZZE110..(CE1,CE2,LE2,VE)..CND199708

83133PLATE, COMBINATION METER, NO.1

main83811-02050iZZE110..CE1,CE2,LE1,LE2,VE199708

main83811-02090iZZE110..TAIW,USA199708-200005

WHITE

main83811-02530iZZE110..S..(CND,USA)200005

83138GGLASS, COMBINATION METER

main83852-02050iZZE110199708

83159SWITCH, METER, NO.1

main83871-1A710iZZE110..LE1,LE2,VE;ZZE110..(CE1,CE2,S)..(CND,USA)199904

83159BRELAY ASSY, METER

main83159-22170iZZE110..CND,USA199708

83181ASENSOR, SPEEDOMETER

main83181-12020iZZE110..4FC,5F199708

main83181-12040iZZE110..3FC199708

83181BRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iZZE110..3FC199708

main96711-24030iZZE110..4FC,5F199708

83242TACHOMETER ASSY, ENGINE

main83881-02050iZZE110..VE..USA199708-200005

SECURITY

main83881-02060iZZE110..USA199708-200005

TEMPERATURE

main83881-02061iZZE110..(CE2,LE2)..USA200005

main83881-02070iZZE110..CND199708-200005

main83881-02071iZZE110..(CE2,LE2)..CND200005

main83881-02080iZZE110..TAIW199708-200005

main83881-02081iZZE110..(CE2,LE2)..TAIW200005

main83881-02090iZZE110..USA199708-200005

WHITE

main83881-02100iZZE110..CND199708-200005

WHITE

main83881-02140iZZE110..(CE1,VE)..USA199708-200005

main83881-02240iZZE110..TAIW199708-200005

WHITE

main83881-02241iZZE110..S..TAIW200005

main83881-02530iZZE110..S..USA200005

main83881-02540iZZE110..S..CND200005

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-02050iZZE110..(CE1,CE2,LE1,LE2,VE)..USA199708

W(TACHOMETER)

main83882-02070iZZE110..(CE1,CE2,LE1,LE2,VE)..CND199708

W(TACHOMETER)

main83882-02080iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

main83882-02090iZZE110..USA199708-200005

WHITE,W(TACHOMETER)

main83882-02100iZZE110..CND199708-200005

WHITE

main83882-02110iZZE110..VE..USA199708-200005

SECURITY

main83882-02120iZZE110..(CE1,CE2,LE2,VE)..CND;ZZE110..(CE1,CE2,LE1,LE2,VE)..USA199708

main83882-02240iZZE110..S..TAIW200005

main83882-02530iZZE110..S..USA200005

main83882-02540iZZE110..S..CND200005

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-02050iZZE110..CE1,CE2,LE1,LE2,VE199708

main83883-02090iZZE110199708-200005

WHITE

main83883-02530iZZE110..S..(CND,USA)200005

83247PLATE, METER CIRCUIT

main83861-02050iZZE110..CE1..USA; ZZE110..VE..USA199708-200005

W(TACHOMETER); W(TACHOMETER---SECURITY)

main83861-02060iZZE110..CND,USA199708-200005

W(TACHOMETER---TEMPERATURE)

main83861-02061iZZE110..CND,USA200005

W(TACHOMETER---TEMPERATURE)

main83861-02080iZZE110..TAIW199708-200005

main83861-02082iZZE110..TAIW200005

main83861-02110iZZE110..USA;ZZE110..(CE1,VE)..CND199708-200005

main83861-02111iZZE110..(CE2,LE2)..(CND,USA)200005

8319487501

main83194-87501

9009900225

main90099-00225

9009900917

main90099-00917

9356855014

main93568-55014

18 parts on this diagram · 3 diagrams in section
