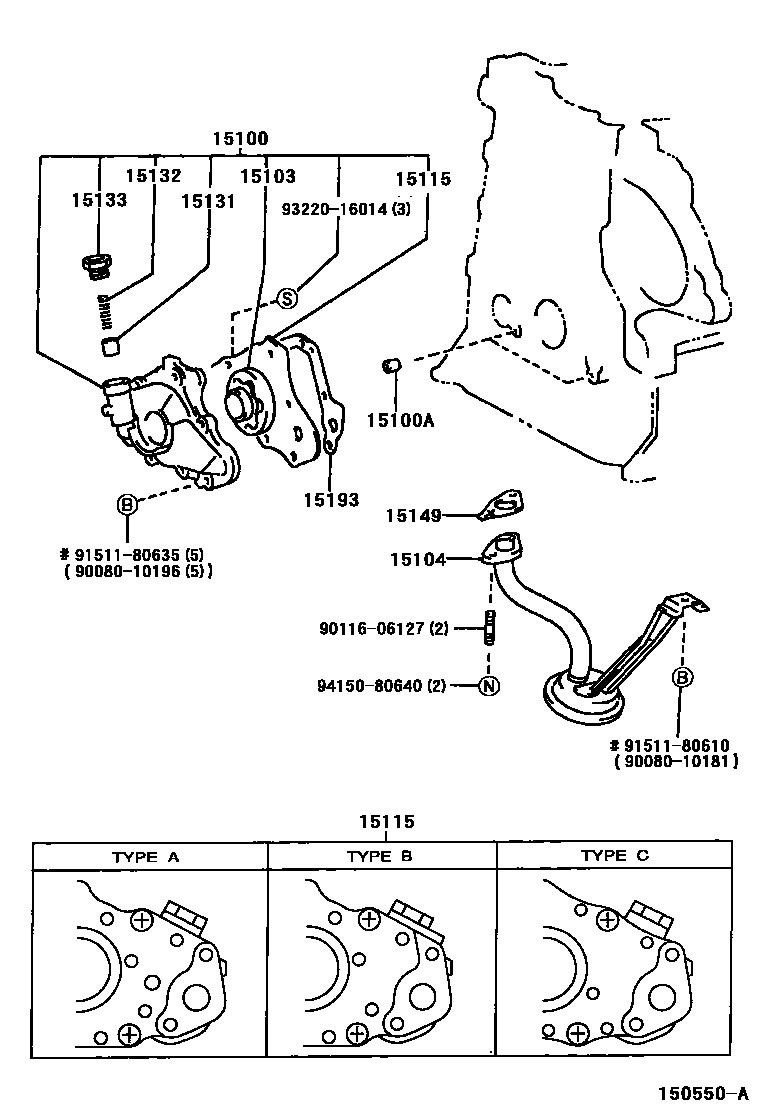

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-0D010i1ZZFE..ZZE110199811-199908

(L)

main15100-0D020i1ZZFE..ZZE110199908

(L)

main15100-22020i1ZZFE..ZZE110199811-199908

(J)

main15100-22040i1ZZFE..ZZE110199908

(J)

15100APIN, RING(FOR OIL PUMP SET)

main90253-09003×2i1ZZFE..ZZE110199708

15103GEAR SET, OIL PUMP

main15103-16040i1ZZFE..ZZE110199708-199908

main15103-22040i1ZZFE..ZZE110199908

15104STRAINER SUB-ASSY, OIL

main15104-0D010i1ZZFE..ZZE110199803-199908

(L)

main15104-0D020i1ZZFE..ZZE110199908

(L)

main15104-22020i1ZZFE..ZZE110199708-199803

main15104-22021i1ZZFE..ZZE110199806-199908

(J)

main15104-22022i1ZZFE..ZZE110199908

(J)

15115COVER, OIL PUMP

main15115-0D010i1ZZFE..ZZE110199811-199908

TYPE B:REFER TO ILLUSTRATION

main15115-0D020i1ZZFE..ZZE110200005

TYPE A:REFER TO ILLUSTRATION

main15115-22020i1ZZFE..ZZE110199708-199908

TYPE C:REFER TO ILLUSTRATION

main15115-22040i1ZZFE..ZZE110199908

TYPE B:REFER TO ILLUSTRATION

15131VALVE, OIL PUMP RELIEF

main15131-03010i1ZZFE..ZZE110200005

(L)

main15131-24010i1ZZFE..ZZE110200005

(J)

15132SPRING, OIL PUMP RELIEF VALVE

main15132-22040i1ZZFE..ZZE110199908

main15132-62030i1ZZFE..ZZE110199708-199908

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1ZZFE..ZZE110199708

15149GASKET, OIL STRAINER FLANGE

main15149-0D010i1ZZFE..ZZE110199708

(L)

main15149-22010i1ZZFE..ZZE110199708

(J)

15193GASKET, OIL PUMP

main15197-0D010i1ZZFE..ZZE110199708

(L)

main15197-22010i1ZZFE..ZZE110199708

(J)

9008010181

main90080-10181

9008010196

main90080-10196

9011606127

main90116-06127

9151180610

main91511-80610

9151180635

main91511-80635

9322016014

main93220-16014

9415080640

main94150-80640

17 parts on this diagram · 1 diagram in section
